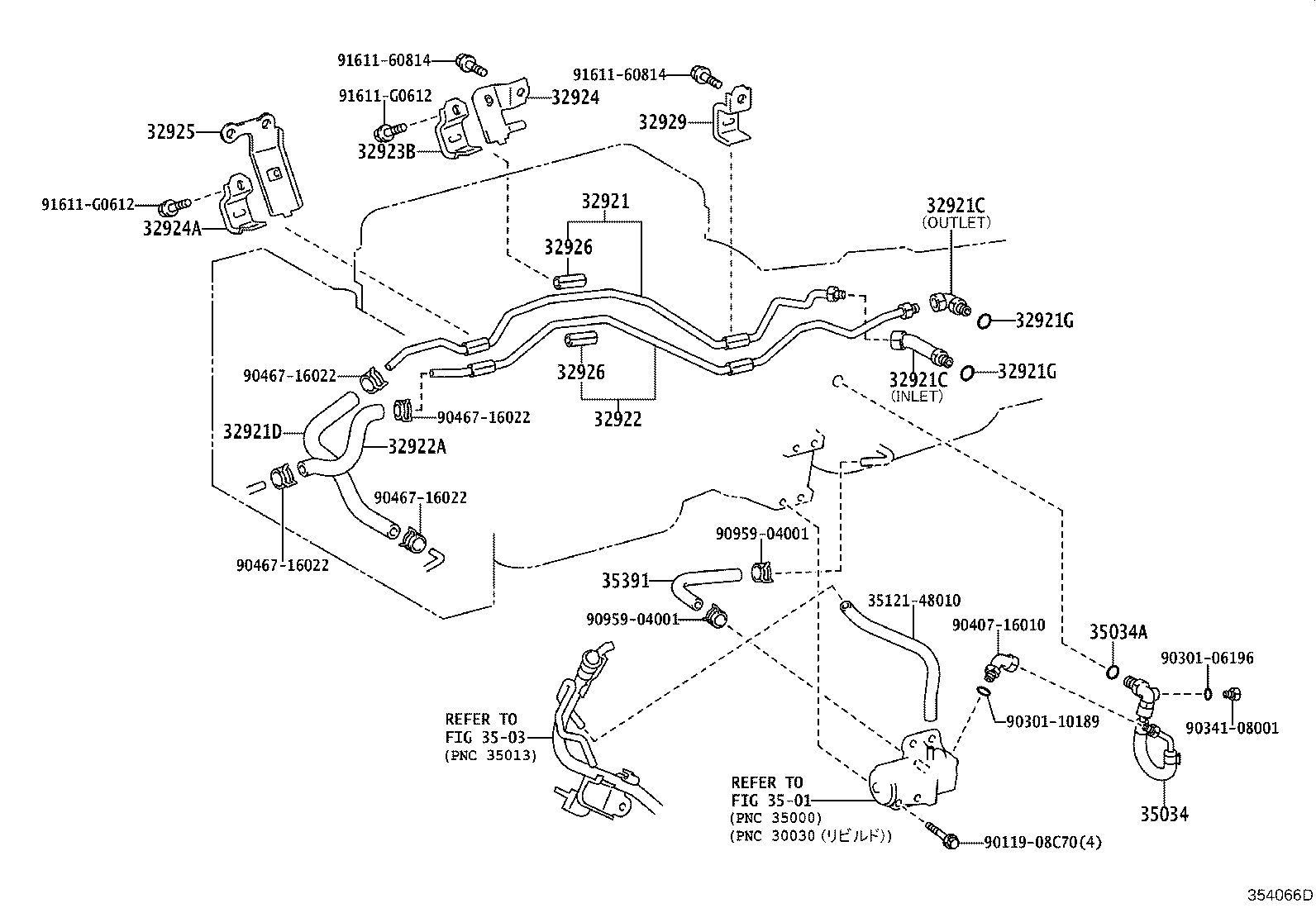

Toyota Crown comfort/sed GBS12 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32921 - TUBE, OIL COOLER INLET, NO.1
32921-43060	GBS12	10/2002 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16012	GBS12 ｲﾝﾚｯﾄ	10/2002 - 12/2999	1
90407-16009	GBS12 ｱｳﾄﾚｯﾄ	10/2002 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16012	GBS12 ｲﾝﾚｯﾄ	10/2002 - 12/2999	1
90407-16009	GBS12 ｱｳﾄﾚｯﾄ	10/2002 - 12/2999	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17124	GBS12	10/2002 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GBS12	10/2002 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GBS12	10/2002 - 12/2999	2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-43060	GBS12	10/2002 - 12/2999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-30170	GBS12	10/2002 - 12/2999	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-22050	GBS12	10/2002 - 12/2999	2
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-22050	GBS12	10/2002 - 12/2999	2
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-43020	GBS12	10/2002 - 12/2999	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	GBS12 長さ=35,内径=10	10/2002 - 12/2999	6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	GBS12 長さ=35,内径=10	10/2002 - 12/2999	6
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-24060	GBS12	10/2002 - 12/2999	1
35034 - ELBOW SUB-ASSY, OIL PUMP DELIVERY W/HOSE
35034-43010	GBS12	10/2002 - 08/2003	1
35034-43011	GBS12	08/2003 - 12/2999	1
35034A - RING, O
90301-15004	GBS12	10/2002 - 12/2999	1
35391 - HOSE, OIL PUMP SUCTION
35391-43010	GBS12	10/2002 - 12/2999	1
Common parts
35121-48010
90119-08C70
90301-06196
90301-10189
90341-08001
90407-16010
90467-16022
90959-04001
91611-60814
91611-G0612
Linked diagrams
3501
3503

GBS12-CEPFK (2002)

(0210- )GBS12
