YS130-AESRN (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 3YPE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-9012)YS130..4HC

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32922 32922A 32924 32926 32928A 32929 9161160612 9161160612 9161161016
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30410

YS130..4HC

 1
32921-30411

YS130..4HC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

YS130..4HC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

YS130..4HC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-15032

YS130..4HC

 1
32941-26061

YS130..4HC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,131,LS13#,MS130,YS130..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,131,LS13#,MS130,YS130..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30410

YS130..4HC

 1
32922-30411

YS130..4HC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-26060

YS130..4HC

 1
90445-15054

YS130..4HC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30140

YS130..4HC

 1
32924-30150

YS130..4HC

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MS135,137,UZS131;GS130,131,YS130..ATM..(LPEFI,LPG,SPC,TWLPG)

長さ=35,内径=10

 2
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-08628

YS130..4HC

 1
Common parts
91611-60612
91611-61016

(9012- )YS130..4HC

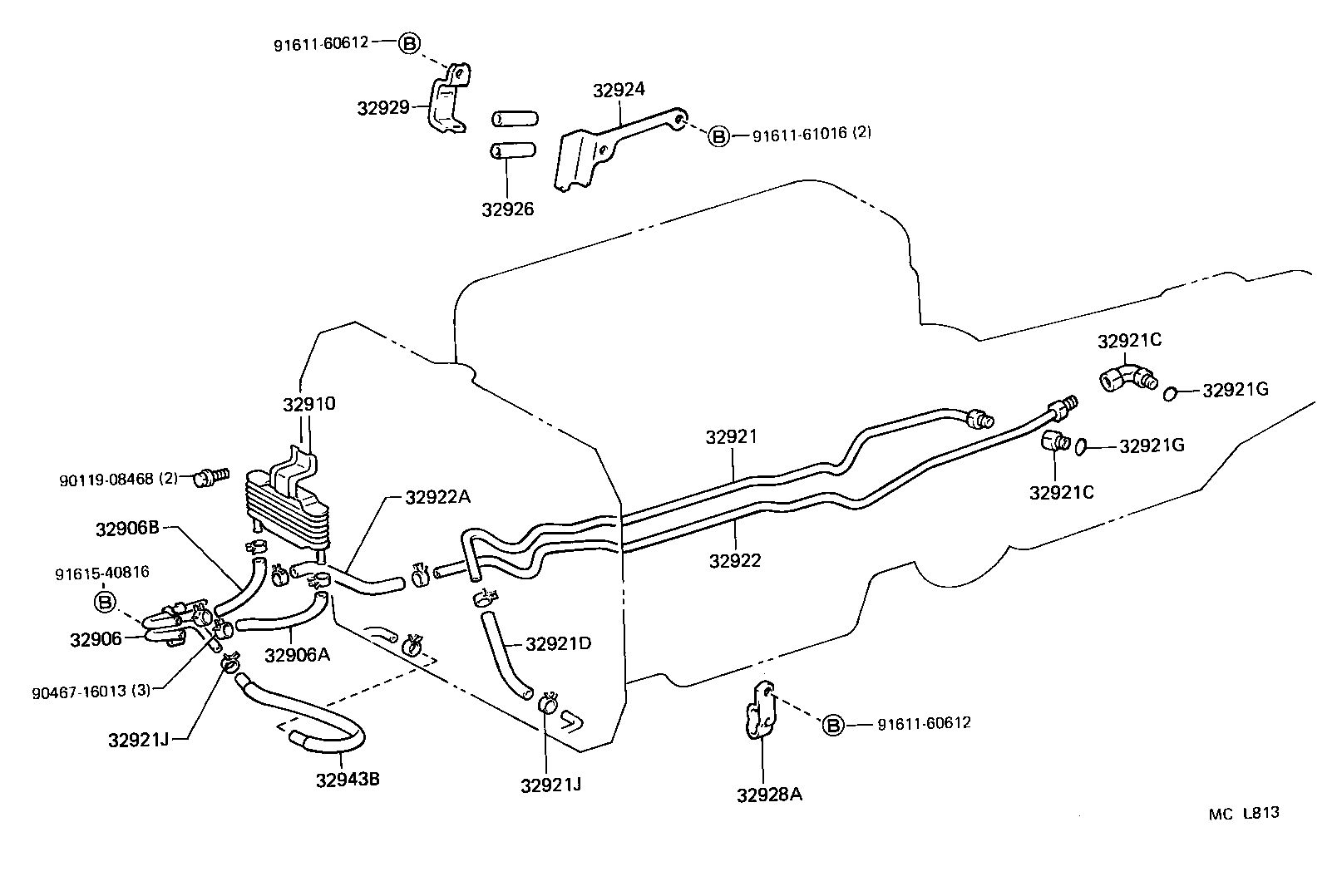

Click highlighted areas on diagram

diagram 32906 32906A 32906B 32910 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32922 32922A 32924 32926 32928A 32929 32943B 9011908468 9046716013 9161160612 9161160612 9161161016 9161540816
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32907-30020

GS130,YS130..ATM..(LPEFI,TWLPG)

 1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
32943-36030

GS130,YS130..ATM..(LPEFI,TWLPG)

 1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100

GS130,YS130..ATM..(LPEFI,TWLPG)

 1
32910 - COOLER ASSY, OIL
32910-30020

GS130,YS130..ATM..(LPEFI,TWLPG)

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30410

YS130..4HC

 1
32921-30411

YS130..4HC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

YS130..4HC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

YS130..4HC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-15032

YS130..4HC

 1
32941-26061

YS130..4HC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,131,LS13#,MS130,YS130..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,YS130..ATM..(LPEFI,TWLPG)

 4
90467-13039

GS130,131,LS13#,MS130,YS130..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30410

YS130..4HC

 1
32922-30411

YS130..4HC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-26060

YS130..4HC

 1
90445-15054

YS130..4HC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30140

YS130..4HC

 1
32924-30150

YS130..4HC

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MS135,137,UZS131;GS130,131,YS130..ATM..(LPEFI,LPG,SPC,TWLPG)

長さ=35,内径=10

 2
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-08628

YS130..4HC

 1
32943B - HOSE, TRANSMISSION OIL COOLER
32943-30020

YS130..4HC

 1
Common parts
90119-08468
90467-16013
91611-60612
91611-61016
91615-40816
