YS130-AESRN (1989)
Toyota Crown
Production
Aug 1989
-
Oct 1991
Engine
3YPE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )3YPE

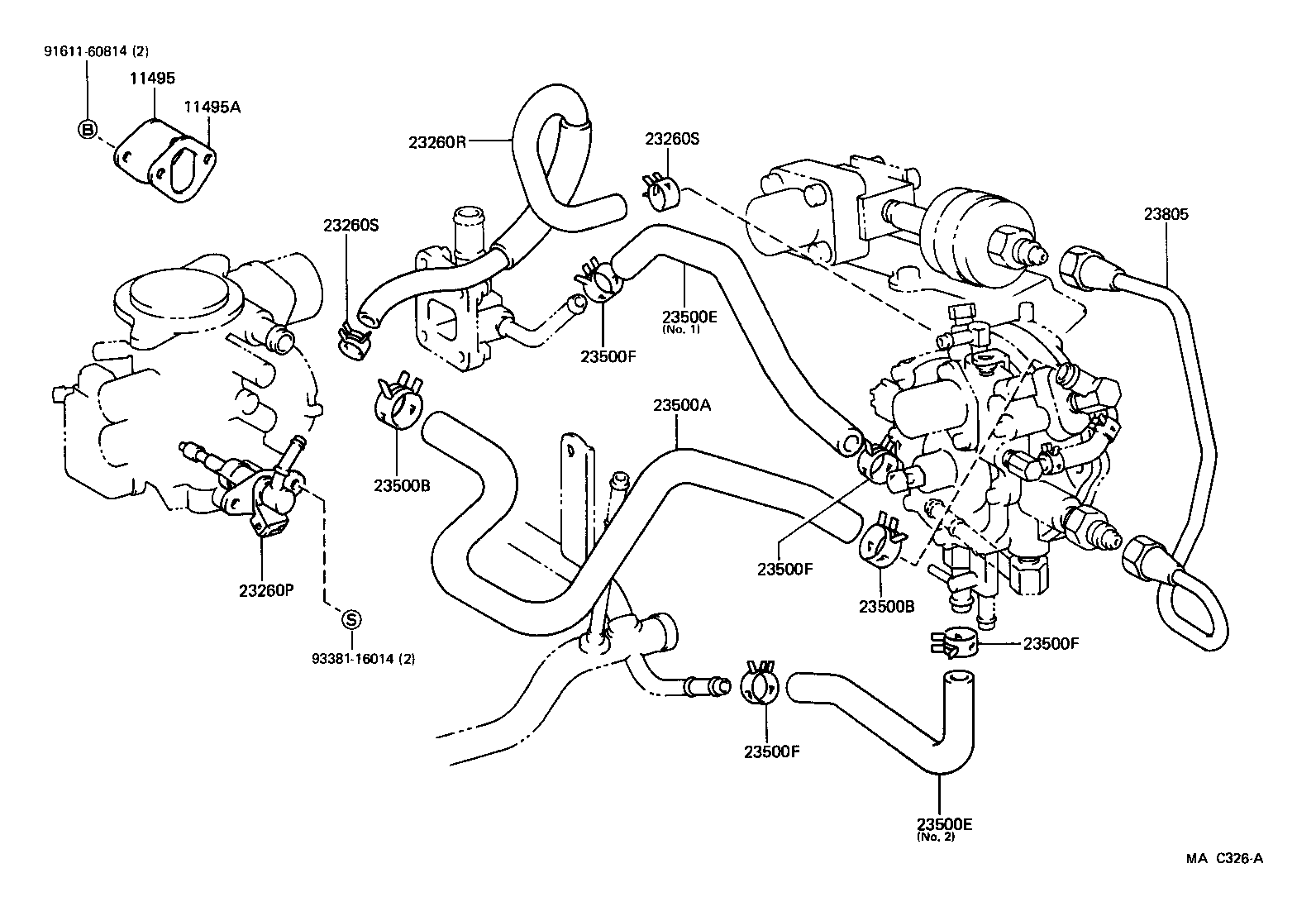

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11495 - PLUG, PLATE(FOR CYLINDER BLOCK) | ||||
| 11495-40010 |
3YP#..YS130 |
1 | ||
| 11495A - GASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG) | ||||
| 90923-05022 |
3YPE..YS130 |
1 | ||
| 90923-05005 |
3YP#..YS130 |
1 | ||
| 23260P - INJECTOR ASSY, LPG | ||||
| 23260-73020 |
3YP..YS130 |
1 | ||
| 23260R - HOSE, LPG INJECTOR | ||||
| 23274-73040 |
3YPE..YS130 |
1 | ||
| 23274-72030 |
3YP..YS130 |
1 | ||
| 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) | ||||
| 90467-13001 |
3YP#..YS130 |
2 | ||
| 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) | ||||
| 90467-13001 |
3YP#..YS130 |
2 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-73080 |
3YP..YS130 REGULATOR SIDE |
1 | ||
| 23273-73020 |
3YP..YS130 CARBURETOR SIDE |
1 | ||
| 23271-73100 |
3YPE..YS130 |
1 | ||
| 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 90467-20134 |
3YP..YS130 |
4 | ||
| 90467-20005 |
3YPE..YS130 |
2 | ||
| 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 90467-20134 |
3YP..YS130 |
4 | ||
| 90467-20005 |
3YPE..YS130 |
2 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16261-73080 |
3YP..YS130 NO.1 |
1 | ||
| 16264-73060 |
3YPE..YS130 NO.2 |
1 | ||
| 16261-73090 |
3YPE..YS130 NO.1 |
1 | ||
| 16264-73040 |
3YP..YS130 NO.2 |
1 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16261-73080 |
3YP..YS130 NO.1 |
1 | ||
| 16264-73060 |
3YPE..YS130 NO.2 |
1 | ||
| 16261-73090 |
3YPE..YS130 NO.1 |
1 | ||
| 16264-73040 |
3YP..YS130 NO.2 |
1 | ||
| 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) | ||||
| 90467-15004 |
3YP#..YS130 |
4 | ||
| 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) | ||||
| 90467-15004 |
3YP#..YS130 |
4 | ||
| 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) | ||||
| 90467-15004 |
3YP#..YS130 |
4 | ||
| 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) | ||||
| 90467-15004 |
3YP#..YS130 |
4 | ||
| 23805 - PIPE SUB-ASSY, LPG REGULATOR | ||||
| 23805-73090 |
3YPE..YS130 |
1 | ||
| 23805-73080 |
3YP..YS130 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 93381-16014 | ||||
