YS130-AESDP (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
3YP
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709-9012)YS130..4HC

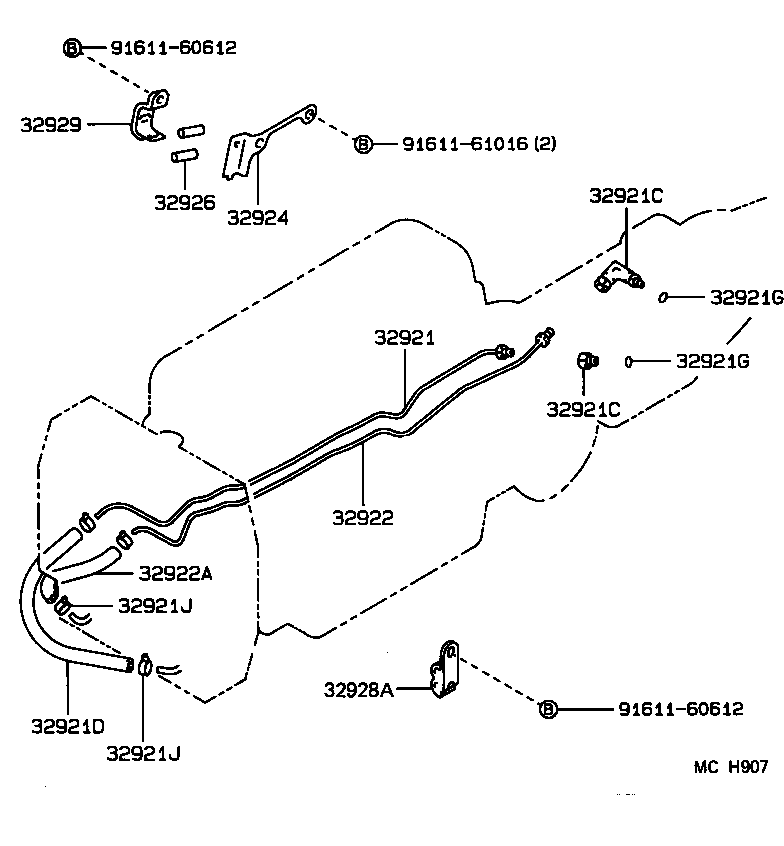

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-30410 |
YS130..4HC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
YS130..4HC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
YS130..4HC |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15032 |
YS130..4HC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-30410 |
YS130..4HC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-26060 |
YS130..4HC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-30140 |
YS130..4HC |
1 | ||
| 32924-30150 |
YS130..4HC ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MS135,137,UZS131;GS130,131,YS130..ATM..(LPEFI,LPG,SPC,TWLPG) 長さ=35,内径=10 |
2 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-30110 |
GS130,131,YS130..ATM..(LPG,SPC) |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-61016 | ||||
