YS130-AESDP (1987)
Toyota Crown
(8709- )3YP#

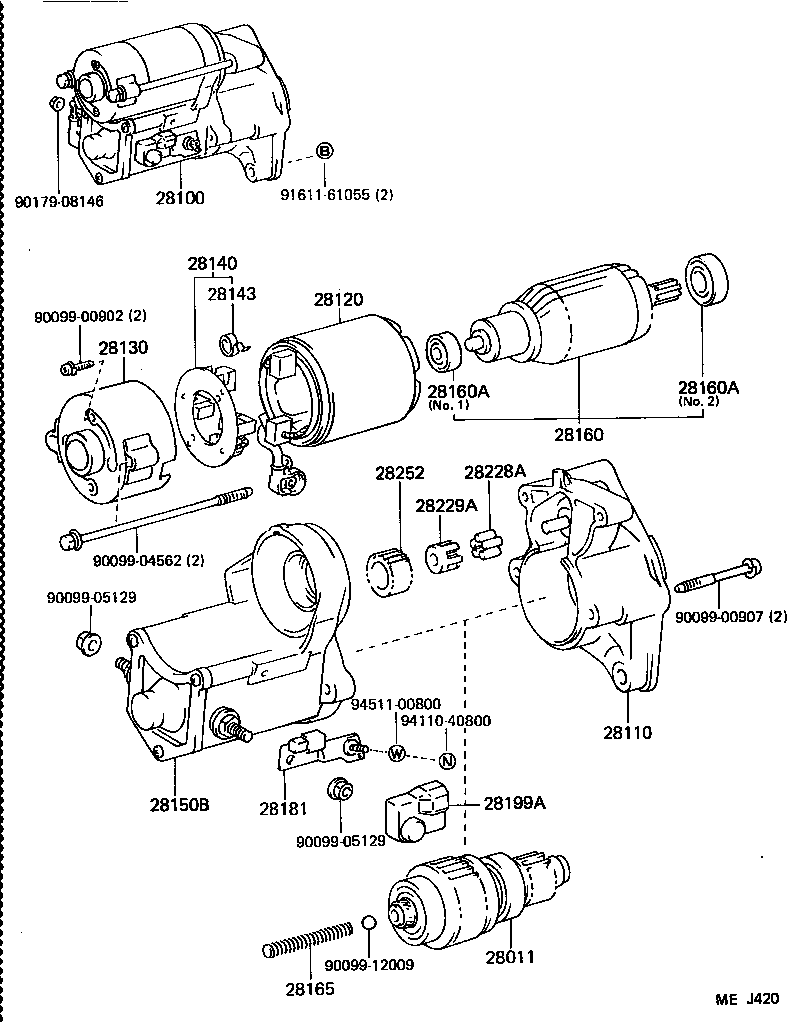

12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72040 |
3YP#..YS130 12V 1.4KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-72030 |
3YP#..YS130 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72030 |
3YP#..YS130 |
1 | ||
| 28110-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28120-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72030 |
3YP#..YS130 |
1 | ||
| 28130-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28140-26070 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GGP,7MGE,MP,1UZFE,3YP..GS130,MS13#,UZS131,YS130 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72030 |
3YP#..YS130 |
1 | ||
| 28150-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160-26070 |
7MGE,MP,3YP..MS13#,YS130 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10144 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.2 |
1 | ||
| 28253-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10144 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.2 |
1 | ||
| 28253-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-72030 |
3YP#..YS130 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-72030 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28199-72030 |
3YP#..YS130 |
1 | ||
| 28199-72020 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28251-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28254-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8709- )3YP#

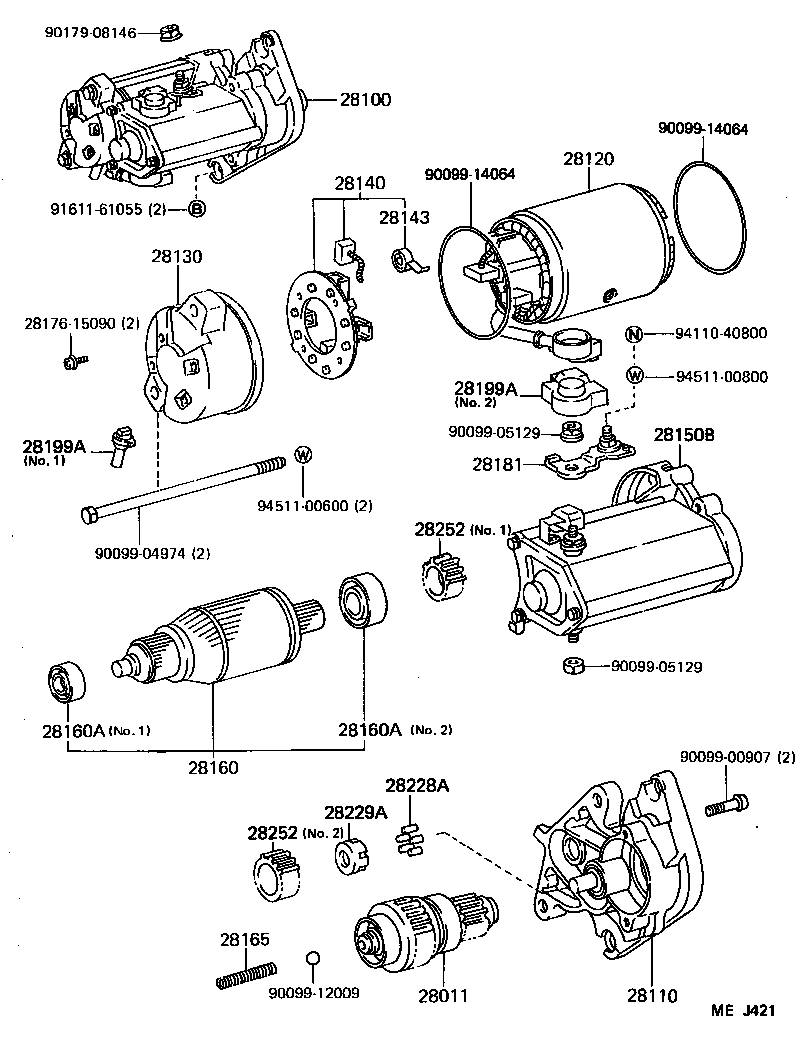

12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72040 |
3YP#..YS130 12V 1.4KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-72030 |
3YP#..YS130 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72030 |
3YP#..YS130 |
1 | ||
| 28110-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28120-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72030 |
3YP#..YS130 |
1 | ||
| 28130-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28140-26070 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GGP,7MGE,MP,1UZFE,3YP..GS130,MS13#,UZS131,YS130 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72030 |
3YP#..YS130 |
1 | ||
| 28150-72040 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160-26070 |
7MGE,MP,3YP..MS13#,YS130 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10144 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.2 |
1 | ||
| 28253-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10144 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.2 |
1 | ||
| 28253-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-72030 |
3YP#..YS130 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-72030 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28199-72030 |
3YP#..YS130 |
1 | ||
| 28199-72020 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-72030 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28199-72030 |
3YP#..YS130 |
1 | ||
| 28199-72020 |
3YP#..YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28251-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28254-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28251-15090 |
7MGE,MP,3YP..MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28254-45020 |
1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
