YS130-AESDP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 3YP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )3YP

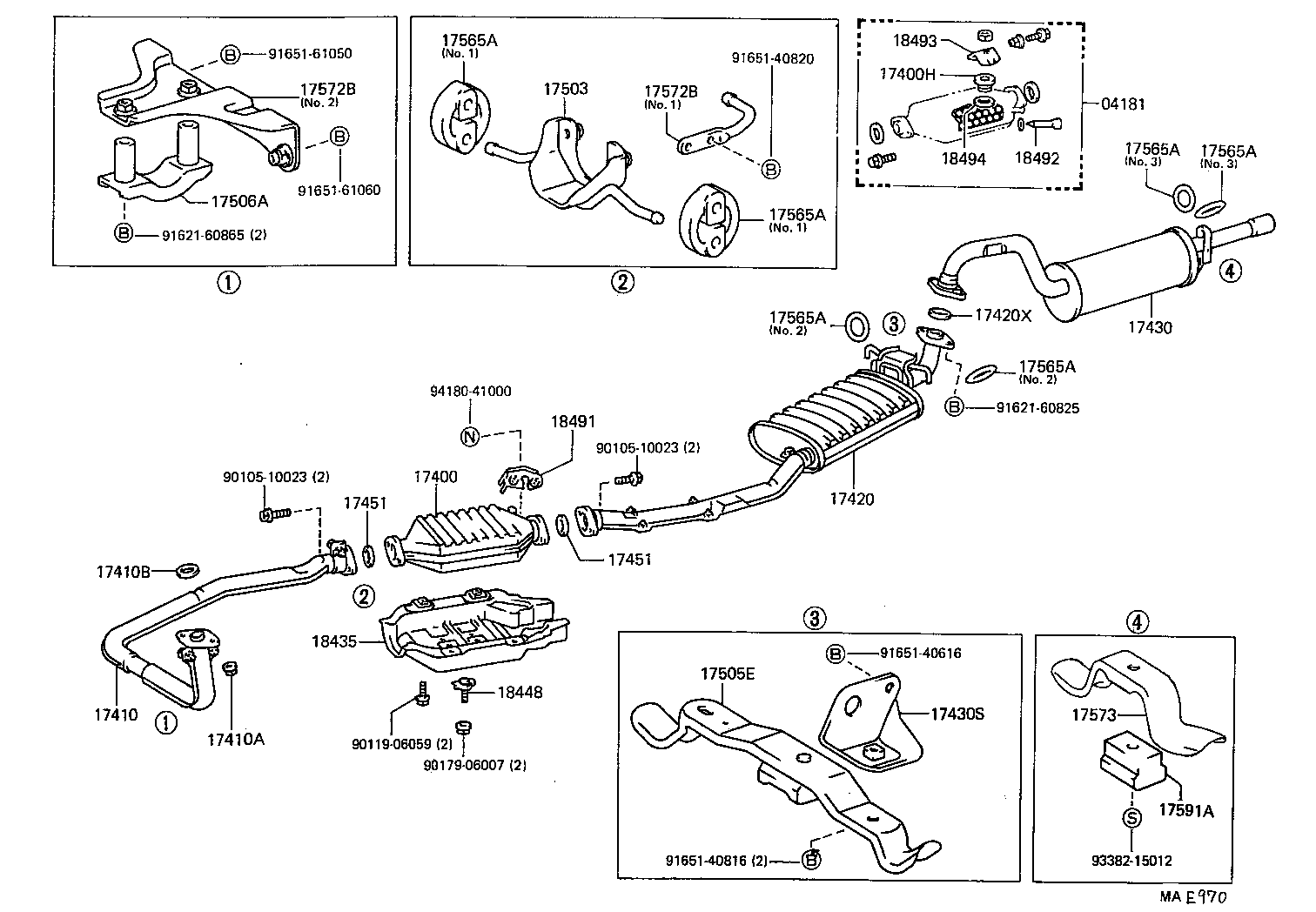

Click highlighted areas on diagram

diagram 04181 17400 17400H 17410 17410A 17410B 17420 17420X 17430 17430S 17451 17451 17503 17505E 17506A 17565A 17565A 17565A 17565A 17565A 17565A 17572B 17572B 17573 17591A 18435 18448 18491 18492 18493 18494 9010510023 9010510023 9011906059 9017906007 9162160825 9162160865 9165140616 9165140816 9165140820 9165161050 9165161060 9338215012 9418041000
Part # Description Qty Price
04181 - PELLET KIT
04181-73010

MP,3YP..MS130,YS130

 1
17400 - CONVERTER ASSY, W/CATALYST
17400-73010

MP,3YP..MS130,YS130

 1
17400H - PLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
90341-24093

MP,3YP..MS130,YS130

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-73060

3YP..YS130

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

3YP#..YS130

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,3YP..LS13#,YS130

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-73021

3YP..YS130

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

1GE,1GGE..GS131;1GE,1GGZE,MP,3YP..GS130,MS130,YS130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73330

1GE,1GFE,1GGP,MP,3YP#..GS130,MS130,YS130..HT,SED

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-41020

1GFE,1GGP,1GGZE,1JZGE,MP,3YP#..GS130,JZS130,MS130,YS130

 1
17451 - GASKET, EXHAUST PIPE
90917-06018

1GE,MP,3YP..GS136,MS130,YS130

ﾌﾛﾝﾄ

 1
90917-06039

1GE,MP,3YP#..GS136,MS130,YS130

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06018

1GE,MP,3YP..GS136,MS130,YS130

ﾌﾛﾝﾄ

 1
90917-06039

1GE,MP,3YP#..GS136,MS130,YS130

ﾘﾔ

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-73060

3YP..YS130..4HC

 1
17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER
17505-45040

1GE,1GFE,1GGP,1GGZE,1JZGE,MP,3YP#..GS130,JZS130,MS130,YS130

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-73020

3YP#..YS130

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

2L,3YP..LS13#,YS130

NO.1

 2
17565-45010

2L,3YP..LS13#,YS130

NO.2

 2
17565-73010

3YP#..YS130

NO.3

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-73010

3YP#..YS130

NO.2

 1
17572-54090

2L,3YP#..LS130,136,YS130

NO.1

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-73010

3YP#..YS130

NO.2

 1
17572-54090

2L,3YP#..LS130,136,YS130

NO.1

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-41040

1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,3YP#..GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36010

1GE,1GG#,2L,2LT#,7MGE,MP,3YP..GS130,131,LS130,MS13#,YS130..HT,SED

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-26011

MP,3YP..MS130,YS130

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-26020

1GE,MP,3YP..GS136,MS130,YS130

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-38070

1GE,MP,3YP..GS136,MS130,YS130

 1
18492 - GUIDE, CATALYTIC CONVERTER SENSOR
18492-45010

1GE,MP,3YP..GS136,MS130,YS130

 1
18493 - PLATE, CATALYZER INLET PLUG LOCK
18493-38011

1GE,MP,3YP..GS136,MS130,YS130

 1
18494 - GASKET, CATALYZER INLET
18494-38010

1GE,MP,3YP..GS136,MS130,YS130

 1
Common parts
90105-10023
90119-06059
90179-06007
91621-60825
91621-60865
91651-40616
91651-40816
91651-40820
91651-61050
91651-61060
93382-15012
94180-41000
