YS130-AESDN (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 3YPE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )3YPE

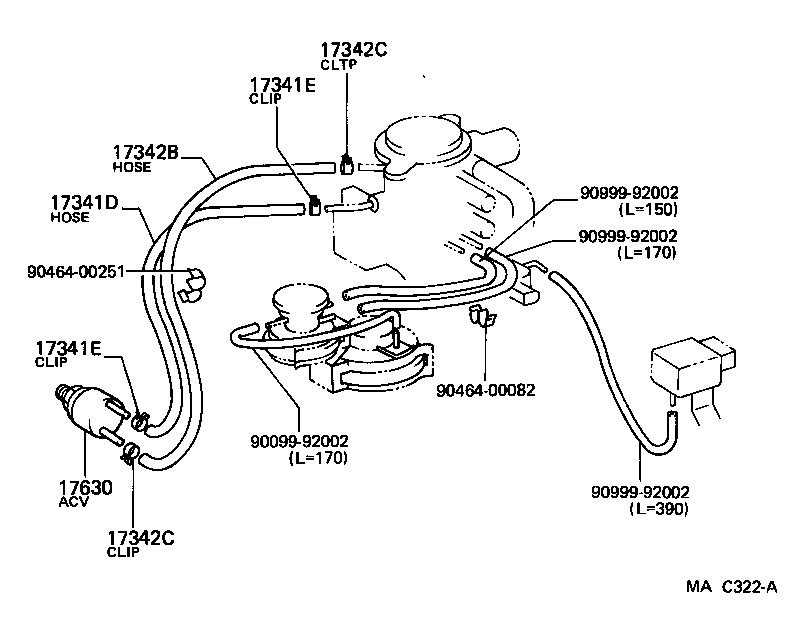

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17630 9009992002 9046400082 9046400251 9099992002 9099992002 9099992002
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-73050

3YPE..YS130

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

3YPE..YS130

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

3YPE..YS130

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-73040

3YPE..YS130

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

3YPE..YS130

 2
96132-30400

3YPE..YS130

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

3YPE..YS130

 2
96132-30400

3YPE..YS130

 2
17630 - VALVE ASSY, AIR CONTROL
17630-15050

3YPE..YS130

 1
17630-15030

3YP..YS130

 1
Common parts
90099-92002
90464-00082
90464-00251
90999-92002
