YS130-AESBN (1991)
Toyota Crown
(9112- )YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30141 |
YS130 |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-30490 |
YS130 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-28020 |
YS130 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
LS13#,YS130 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
LS13#,YS130 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GS13#,YS130 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17004 |
YS130 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-51003 |
YS130 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-28012 |
YS130 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
GS13#,LS13#,YS130 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30060 |
LS13#,YS130 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30140 |
YS130 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GS13#,JZS13#,YS130 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-28010 |
YS130 |
1 | ||
| 44312-50010 |
YS130 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17011 |
YS130 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
YS130 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
GS13#,LS13#,YS130 ﾏｰｸ無し |
1 | ||
| 44313-22060 |
GS13#,LS13#,YS130 ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
GS13#,LS13#,YS130 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
GS13#,LS13#,YS130 ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
GS13#,LS13#,YS130 ﾏｰｸ 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30490 |
YS130 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12040 |
LS13#,YS130 ﾏｰｸ 3 |
1 | ||
| 44325-12010 |
LS13#,YS130 ﾏｰｸ無し |
1 | ||
| 44325-12030 |
LS13#,YS130 ﾏｰｸ 2 |
1 | ||
| 44325-12020 |
LS13#,YS130 ﾏｰｸ 1 |
1 | ||
| 44325-12050 |
LS13#,YS130 ﾏｰｸ 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
LS13#,YS130 長さ=25,外径=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-32170 |
GS13#,LS13#,YS130 ﾏｰｸ E |
1 | ||
| 44330-32150 |
GS13#,LS13#,YS130 ﾏｰｸ C |
1 | ||
| 44330-32160 |
GS13#,LS13#,YS130 ﾏｰｸ D |
1 | ||
| 44330-32130 |
GS13#,LS13#,YS130 ﾏｰｸ A |
1 | ||
| 44330-32140 |
GS13#,LS13#,YS130 ﾏｰｸ B |
1 | ||
| 44330-32180 |
GS13#,LS13#,YS130 ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GS13#,LS13#,YS130 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GS130,LS13#,YS130..DSL,LPEFI,TDE,TDEC,TWLPG 外径=25.5,内径=22.5 |
1 | ||
| 96711-19014 |
GS130,LS13#,YS130..DSL,LPEFI,TDE,TDEC,TWLPG 外径=17.0,内径=13.0 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GS130,LS13#,YS130..DSL,LPEFI,TDE,TDEC,TWLPG 外径=25.5,内径=22.5 |
1 | ||
| 96711-19014 |
GS130,LS13#,YS130..DSL,LPEFI,TDE,TDEC,TWLPG 外径=17.0,内径=13.0 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
LS13#,YS130 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
LS13#,YS130 |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
LS13#,YS130 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
GS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDEC |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
GS13#,LS13#,YS130 長さ=14.997 |
10 | ||
| 44345-12030 |
GS13#,LS13#,YS130 長さ=14.993 |
10 | ||
| 44345-12020 |
GS13#,LS13#,YS130 長さ=14.995 |
10 | ||
| 44345-12050 |
GS13#,LS13#,YS130 長さ=14.989 |
10 | ||
| 44345-12040 |
GS13#,LS13#,YS130 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-30200 |
YS130 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96711-19013 |
YS130 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-14010 |
YS130 |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 91611-60814 | ||||

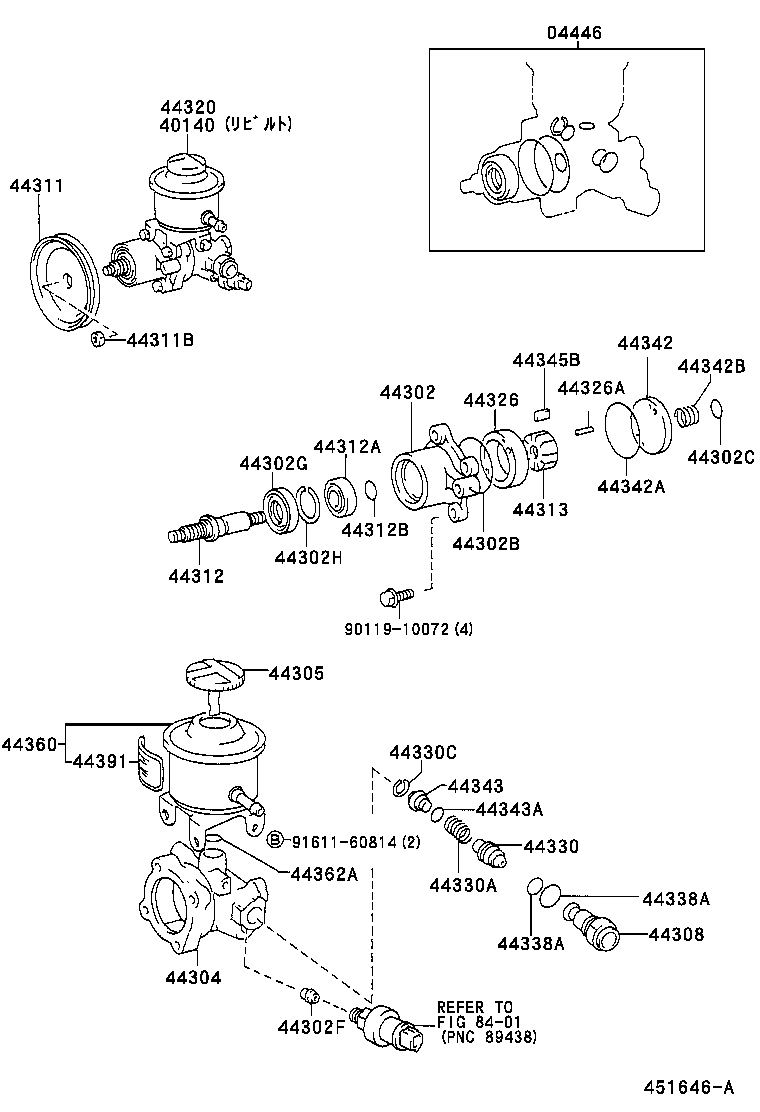

| Linked diagrams | ||||
| 8401 | ||||
