YS130-AEMRP (1987)
Toyota Crown
(8709- )HT,SED

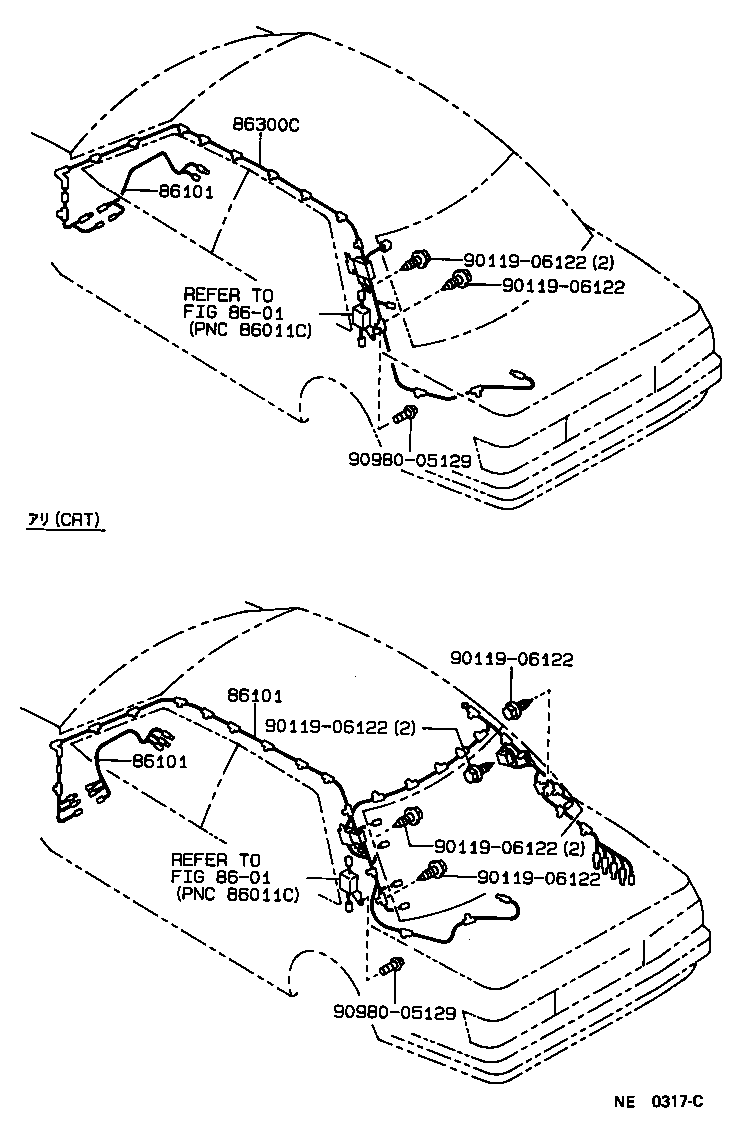

WINDOW ANTENNA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-30380 |
LS130..4H..STD;GS130,LS130..SED..(DLX,SAL,SALEX,SDX);GS131,JZS131,LS131,MS130,135,YS130..SED |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90980-05129 | ||||
| Linked diagrams | ||||
| 8601 | ||||
(8709- )STD

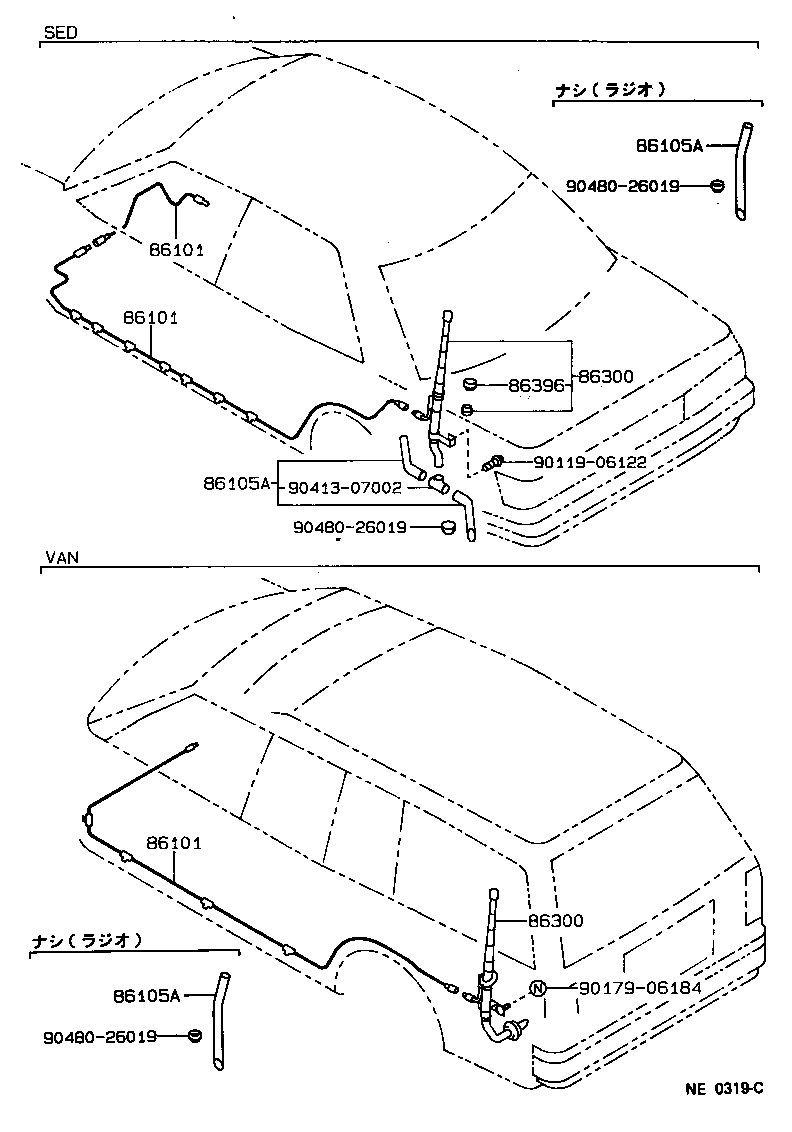

PULL-TOP ANTENNA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30280 |
GS130,LS130,YS130..STD FLOOR LH |
1 | ||
| 86101-30320 |
YS130..STD;LS130..4H..STD ｱﾘ(ｳｲﾝﾄﾞ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86101-30340 |
YS130..STD;LS130..4H..STD ｱﾘ(ﾏﾆﾕｱﾙ ｱﾝﾃﾅ),INSTRUMENT PANEL |
1 | ||
| 86105A - HOSE SUB-ASSY, ANTENNA | ||||
| 86105-30010 |
GS130,LS130,YS130..STD..(DSL,EFI,LPG) |
1 | ||
| 86105A - HOSE SUB-ASSY, ANTENNA | ||||
| 86105-30010 |
GS130,LS130,YS130..STD..(DSL,EFI,LPG) |
1 | ||
| 86105A - HOSE SUB-ASSY, ANTENNA | ||||
| 86105-30010 |
GS130,LS130,YS130..STD..(DSL,EFI,LPG) |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-30370 |
GS130,LS130,YS130..STD |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-30370 |
GS130,LS130,YS130..STD |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-12020 |
GS130,LS130,YS130..STD |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90179-06184 | ||||
| 90413-07002 | ||||
| 90480-26019 | ||||
(9110-9512)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06122 | ||||
| 90179-06115 | ||||
| 90413-07002 | ||||
(9110-9512)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06122 | ||||
