YS130-AEMRP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 3YP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )LS136..DLX ; (8709- )GS13#,LS130,131,YS130..5F

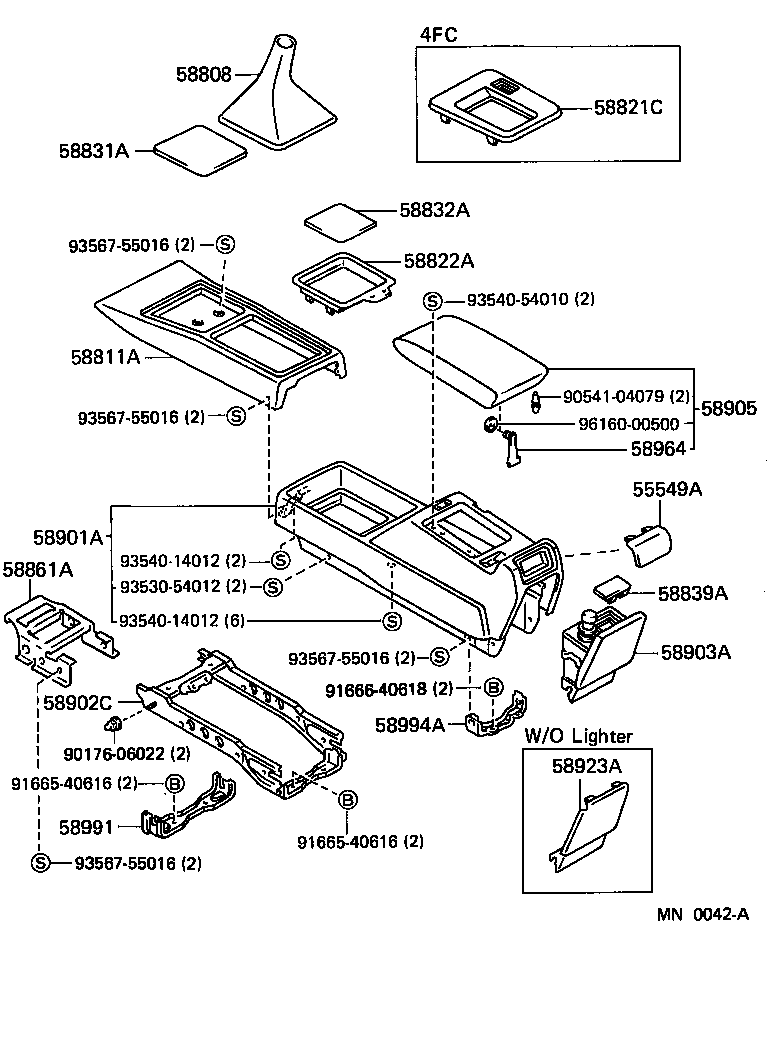

Click highlighted areas on diagram

diagram 55549A 58808 58811A 58821C 58822A 58831A 58832A 58839A 58861A 58901A 58902C 58903A 58905 58923A 58964 58991 58994A 9017606022 9054104079 9166540616 9166540616 9166640618 9353054012 9354014012 9354014012 9354054010 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
55549A - COVER, REAR COOLER SWITCH HOLE
55549-3009004

LS136..DLX;GS13#,LS130,131,YS130..5F

BLUE,TRIM8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3007004

GS13#,LS13#,YS130..5F

BLUE,TRIM8#

 1
58811A - BOX, CONSOLE, FRONT
58811-3024004

GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)

BLUE,TRIM8#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-3016004

LS136..DLX;GS13#,LS130,131,YS130..5F

BLUE,TRIM8#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-30030

GS136,LS136,YS130..4FC,5F;GS130,LS130,MS130..(4FC,5F)..(DLX,STD)

 1
58861A - SUPPORT, CONSOLE BOX, NO.1
58861-30040

GS130,LS130,YS130..5F..STD

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-3008004

LS136..DLX;GS13#,LS130,131,YS130..5F

BLUE,TRIM8#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-30030

GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-3009004

GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD)

BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3015004

LS136..DLX;GS13#,LS130,131,YS130..5F

BLUE,TRIM8#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30050

GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-30080

GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-30020

GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)

 1
Common parts
90176-06022
90541-04079
91665-40616
91666-40618
93530-54012
93540-14012
93540-54010
93567-55016
96160-00500
