YS130-AEMRP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 3YP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)3YP

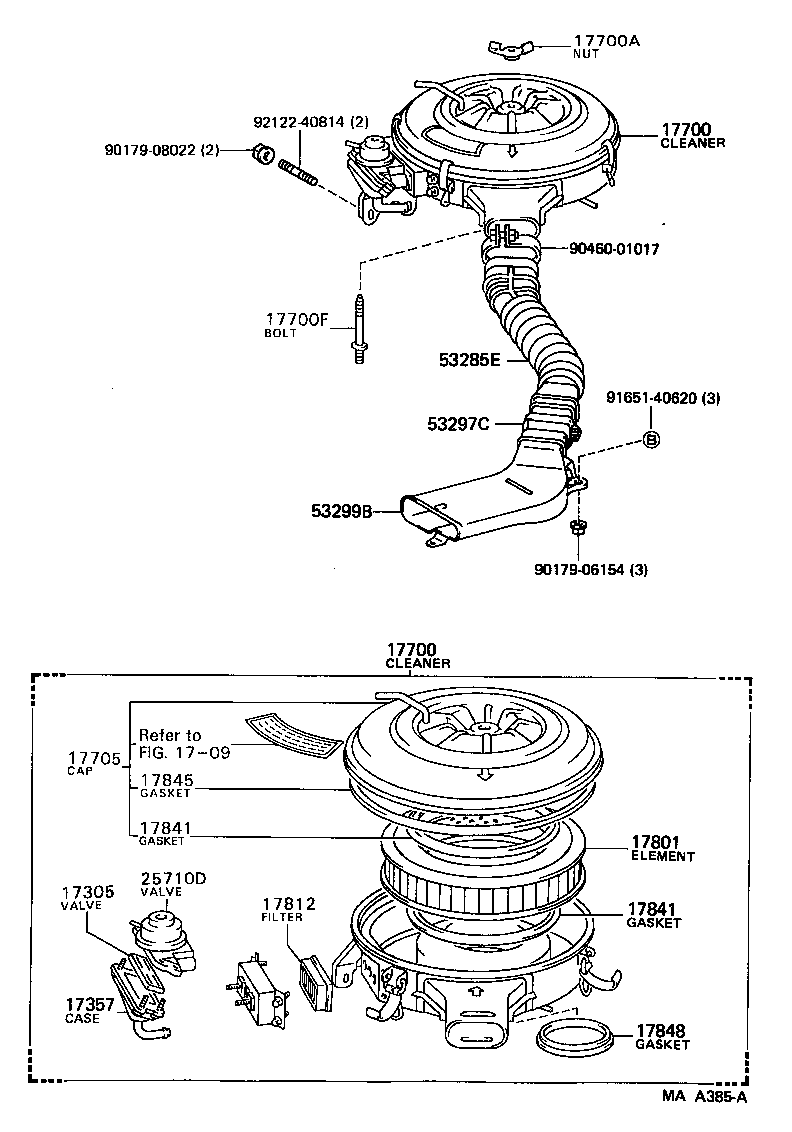

Click highlighted areas on diagram

diagram 1709 17305 17357 17700 17700 17700A 17700F 17705 17801 17812 17841 17841 17845 17848 25710D 53285E 53297C 53299B 9017906154 9017908022 9046001017 9165140620 9212240814
Part # Description Qty Price
17305 - VALVE SUB-ASSY, REED
17305-15010

3YP..YS130

 1
17357 - CASE, REED VALVE
17357-72010

3YP..YS130

 1
17700 - CLEANER ASSY, AIR
17700-73180

3YP..YS130

 1
17700 - CLEANER ASSY, AIR
17700-73180

3YP..YS130

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

3YP..YS130

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-08161

3YP..YS130

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-73060

3YP..YS130

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-44040

3YP..YS130

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-31010

3YP..YS130

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

3YP..YS130

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

3YP..YS130

 2
17845 - GASKET, AIR CLEANER CAP
17845-42010

3YP..YS130

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003

3YP..YS130

 1
25710D - VALVE ASSY, AIR SWITCHING
25710-72010

3YP..YS130

 1
53285E - GUARD, COOL AIR
53285-30010

YS130

 1
53297C - RETAINER, COOL AIR INTAKE DUCT, NO.2
53297-30080

YS130

 1
53299B - DUCT, COOL AIR INTAKE
53299-30180

YS130

 1
Common parts
90179-06154
90179-08022
90460-01017
91651-40620
92122-40814
Linked diagrams
1709
