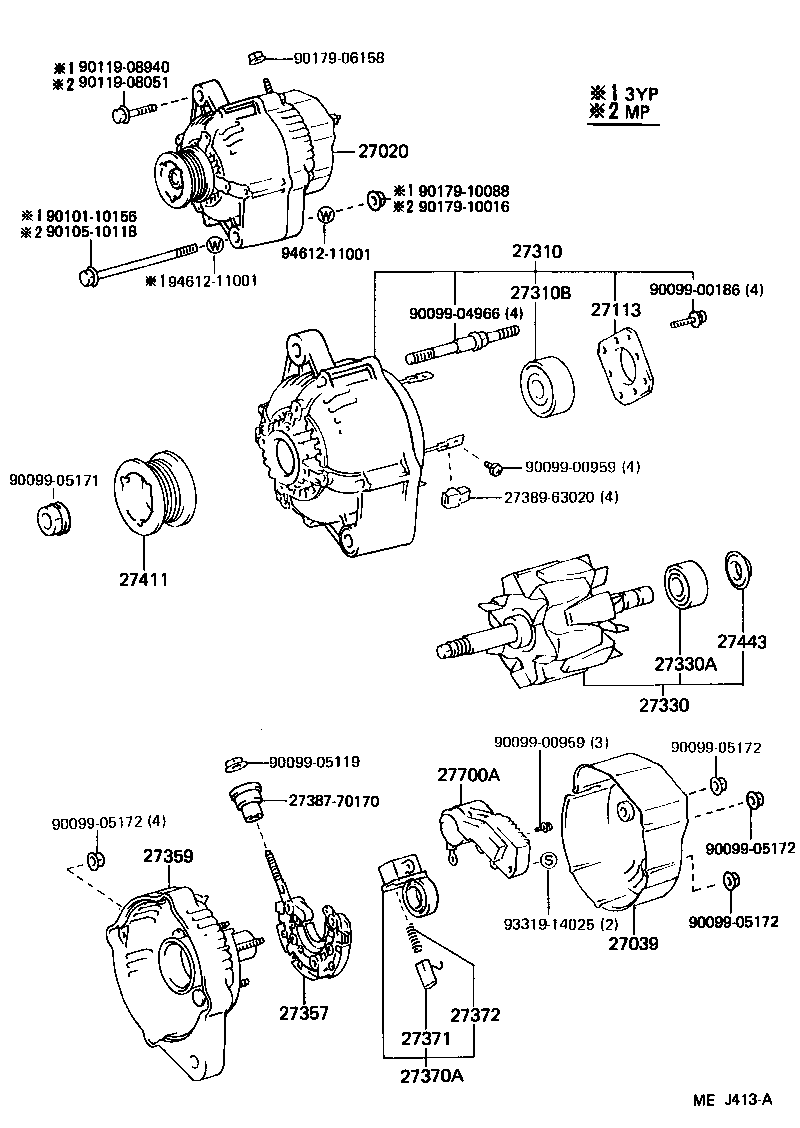

Toyota Crown YS130 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-72130	3YP..YS130 12V 60A	09/1987 - 08/1989	1
27039 - COVER, ALTERNATOR REAR END
27039-72010	1GFE,MP,3YP..GS130,131,MS130,YS130	09/1987 - 08/1989	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200	1GE,1GFE,1GGP,MP,3YP#..GS130,131,MS130,YS130	09/1987 - 10/1991	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-43132	MP,3YP#..MS130,YS130	09/1987 - 10/1991	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10177	1GGP,MP,3YP#..GS130,MS130,YS130	09/1987 - 10/1991	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43132	1GGP,MP,3YP#..GS130,MS130,YS130	09/1987 - 10/1991	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130	09/1987 - 08/1989	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	1GFE,MP,3YP..GS130,131,MS130,YS130	09/1987 - 08/1989	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72130	3YP..YS130	09/1987 - 04/1988	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-72161	MP,3YP..MS130,YS130	09/1987 - 08/1989	1
27371 - BRUSH, ALTERNATOR
27371-72161	MP,3YP..MS130,YS130	09/1987 - 08/1989	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	1GE,1GFE,MP,3YP..GS13#,MS130,YS130	09/1988 - 08/1989	2
27372-72100	1GE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130	09/1987 - 09/1988	2
27411 - PULLEY, ALTERNATOR
27411-72130	3YP#..YS130	09/1987 - 10/1991	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130	09/1987 - 08/1989	1
27700A - REGULATOR ASSY, GENERATOR
27700-72080	1GGP,MP,3YP#..GS130,MS130,YS130	09/1987 - 10/1991	1
Common parts
27387-70170
27389-63020
90099-00186
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10156
90105-10118
90119-08051
90119-08940
90179-06158
90179-10016
90179-10088
93319-14025
94612-11001

YS130-AEJDP (1987)

(8709- )MP,3YP#
