YS130-AEJDN (1989)
Toyota Crown

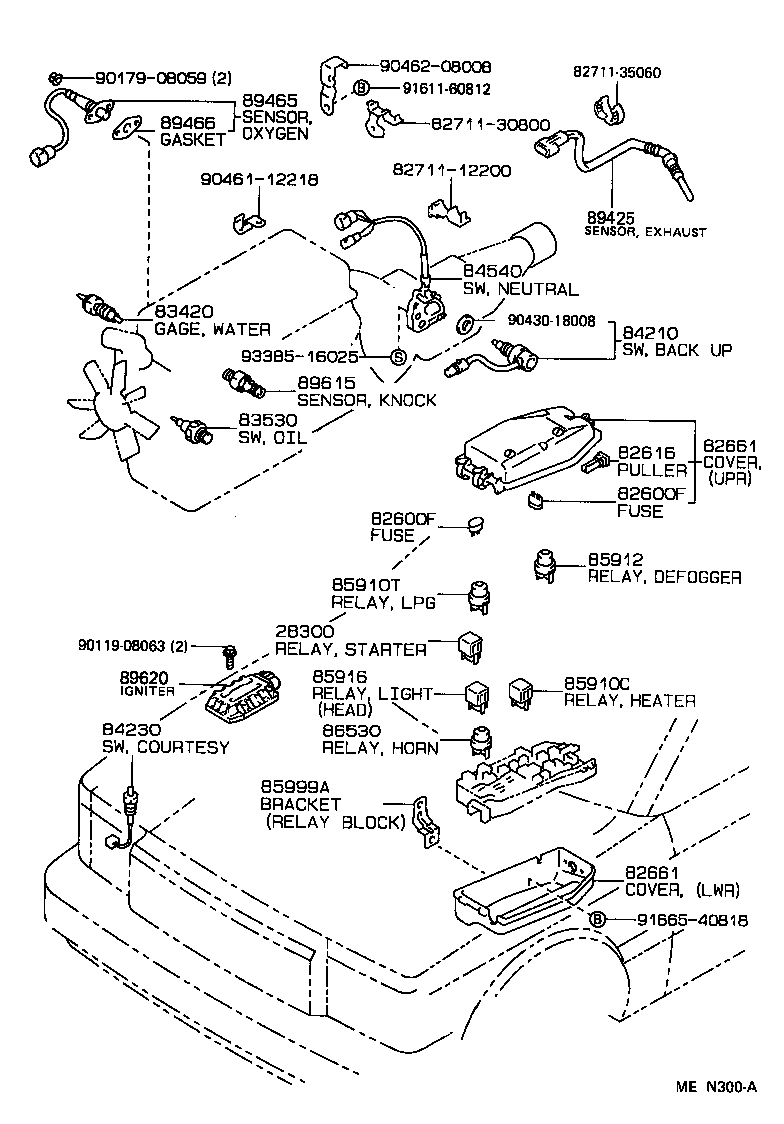

ILLUST NO. 1 OF 8(8908- )YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1GE,1GFE..GS131;1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,STD |
1 | ||
| 28300-16010 |
1GFE,1GG#,1JZGE,7MGE,1UZFE,3YPE..GS13#,JZS13#,MS13#,UZS131,YS130 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
GS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,YS130 15A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
GS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,YS130 15A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30030 |
MS130,YS130 UPPER |
1 | ||
| 82663-30010 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG LOWER |
1 | ||
| 82662-30031 |
GS130,YS130..LPEFI,TWLPG UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30030 |
MS130,YS130 UPPER |
1 | ||
| 82663-30010 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG LOWER |
1 | ||
| 82662-30031 |
GS130,YS130..LPEFI,TWLPG UPPER |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS13#,JZS13#,LS13#,MS13#,YS130 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YS130 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-30060 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 85910T - RELAY, LPG | ||||
| 28380-73010 |
GS130,YS130..LPEFI,TWLPG |
1 | ||
| 90987-02004 |
MS130,YS130 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02004 |
YS130;GS130,136,LS130,136..STD HAZARD,NIPPONDENSO |
2 | ||
| 90987-02004 |
YS130;GS130,136,LS13#..STD ﾊｻﾞｰﾄﾞ |
2 | ||
| 90987-04002 |
YS130;GS130,136,LS130,136..STD HAZARD MAIN |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 90987-02008 |
YS130;GS130,136,LS130,136..STD HAZARD,MARUKO |
2 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30260 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999-30290 |
GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
1 | ||
| 85999-30280 |
GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39145 |
GS136,MS130,YS130 |
1 | ||
| 89425-12210 |
YS130 |
1 | ||
| 89425-32090 |
YS130 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29105 |
YS130 |
1 | ||
| 89465-39385 |
YS130 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MS13#,YS130 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30040 |
YS130 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30300 |
YS130 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30800 | ||||
| 82711-35060 | ||||
| 90119-08063 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91665-40818 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 8(9110-9512)GS136..SDX,STD ; (9110-9512)GS130,YS130..DLX,DLXA,STD
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 84731-12032 | ||||
