YS130-AEJDN (1989)
Toyota Crown
Production
Aug 1989
-
Oct 1991
Engine
3YPE
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )3YPE

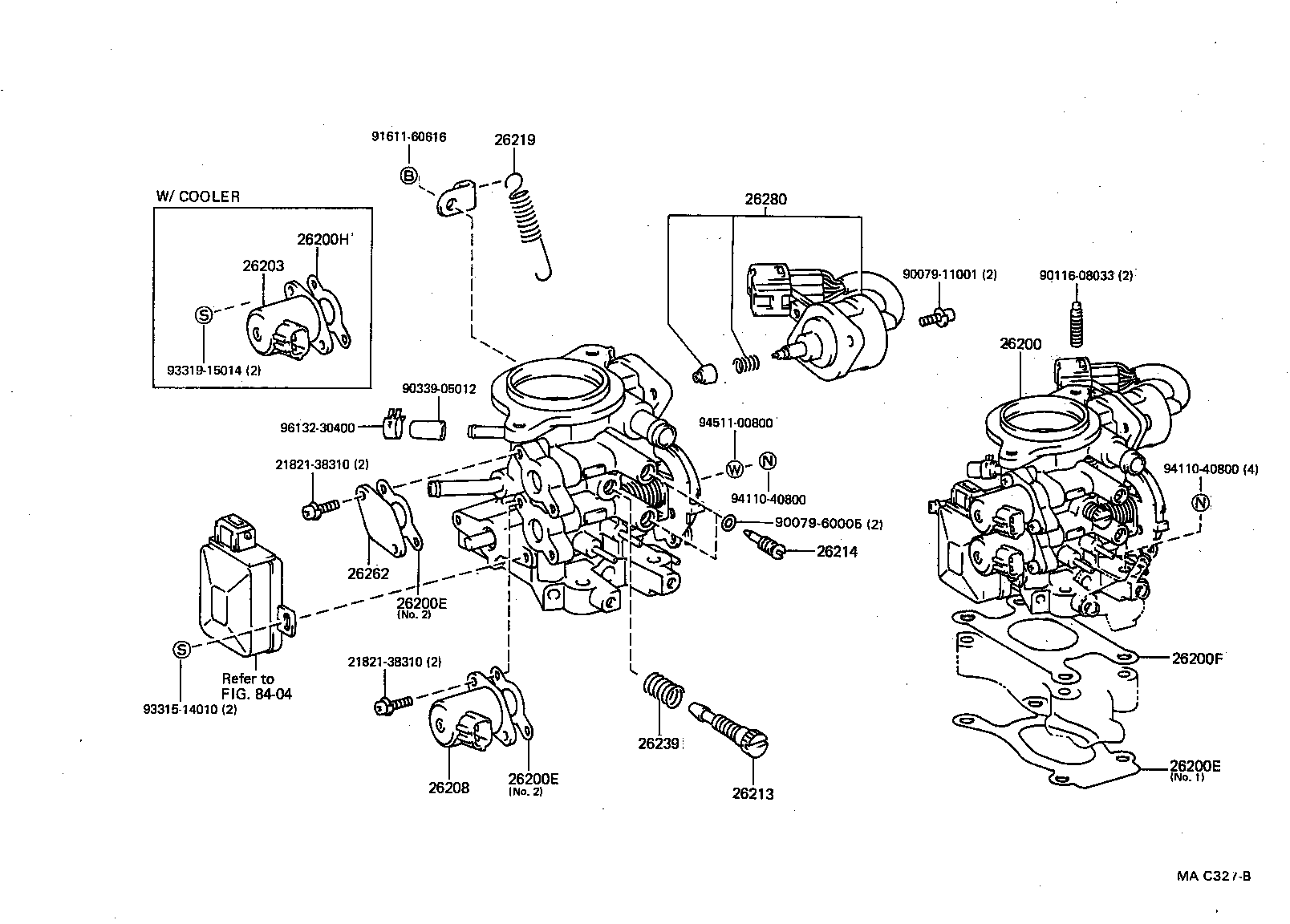

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26200 - CARBURETOR ASSY, LPG | ||||
| 26200-73130 |
3YPE..YS130 |
1 | ||
| 26200-73070 |
3YP..YS130..MTM |
1 | ||
| 26200E - GASKET, CARBURETOR, NO.1 | ||||
| 21911-73010 |
3YPE..YS130 NO.2 |
2 | ||
| 21911-72010 |
3YP..YS130 |
1 | ||
| 21911-72011 |
3YPE..YS130 NO.1 |
1 | ||
| 21911-72010 |
3YPE..YS130 NO.1 |
1 | ||
| 26200E - GASKET, CARBURETOR, NO.1 | ||||
| 21911-73010 |
3YPE..YS130 NO.2 |
2 | ||
| 21911-72010 |
3YP..YS130 |
1 | ||
| 21911-72011 |
3YPE..YS130 NO.1 |
1 | ||
| 21911-72010 |
3YPE..YS130 NO.1 |
1 | ||
| 26200E - GASKET, CARBURETOR, NO.1 | ||||
| 21911-73010 |
3YPE..YS130 NO.2 |
2 | ||
| 21911-72010 |
3YP..YS130 |
1 | ||
| 21911-72011 |
3YPE..YS130 NO.1 |
1 | ||
| 21911-72010 |
3YPE..YS130 NO.1 |
1 | ||
| 26200F - GASKET, CARBURETOR, NO.2 | ||||
| 21916-72010 |
3YP#..YS130 |
1 | ||
| 21916-72011 |
3YPE..YS130 |
1 | ||
| 26200H - GASKET, CARBURETOR, NO.2 | ||||
| 21911-73010 |
3YPE..YS130 |
1 | ||
| 26203 - VALVE SUB-ASSY, SOLENOID, NO.2 | ||||
| 26203-73130 |
3YPE..YS130 |
1 | ||
| 26208 - VALVE SUB-ASSY, SOLENOID | ||||
| 26208-73130 |
3YPE..YS130 |
1 | ||
| 26206-73130 |
3YPE..YS130 |
1 | ||
| 26213 - SCREW, ADJUST | ||||
| 26214-44060 |
3YP#..YS130 |
1 | ||
| 26214 - SCREW, POWER ADJUST | ||||
| 26214-72010 |
3YP..YS130 |
1 | ||
| 26214-73130 |
3YPE..YS130 |
1 | ||
| 26219 - SPRING, POWER VALVE | ||||
| 26219-72010 |
3YP..YS130 |
1 | ||
| 26219-73130 |
3YPE..YS130 |
1 | ||
| 26239 - SPRING | ||||
| 26239-44060 |
3YP..YS130 NO.1 |
1 | ||
| 26239-72010 |
3YP..YS130 NO.2 |
1 | ||
| 26239-44060 |
3YPE..YS130 |
1 | ||
| 26262 - COVER | ||||
| 26262-73130 |
3YPE..YS130 |
1 | ||
| 26280 - MOTOR ASSY, AIR FUEL RATIO CONTROL | ||||
| 26280-73010 |
3YPE..YS130 |
1 | ||
| Common parts | ||||
| 21821-38310 | ||||
| 90079-11001 | ||||
| 90079-60005 | ||||
| 90116-08033 | ||||
| 90339-05012 | ||||
| 91611-60616 | ||||
| 93315-14010 | ||||
| 93319-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 8404 | ||||
