YS130-AEJDN (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 3YPE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )3YPE

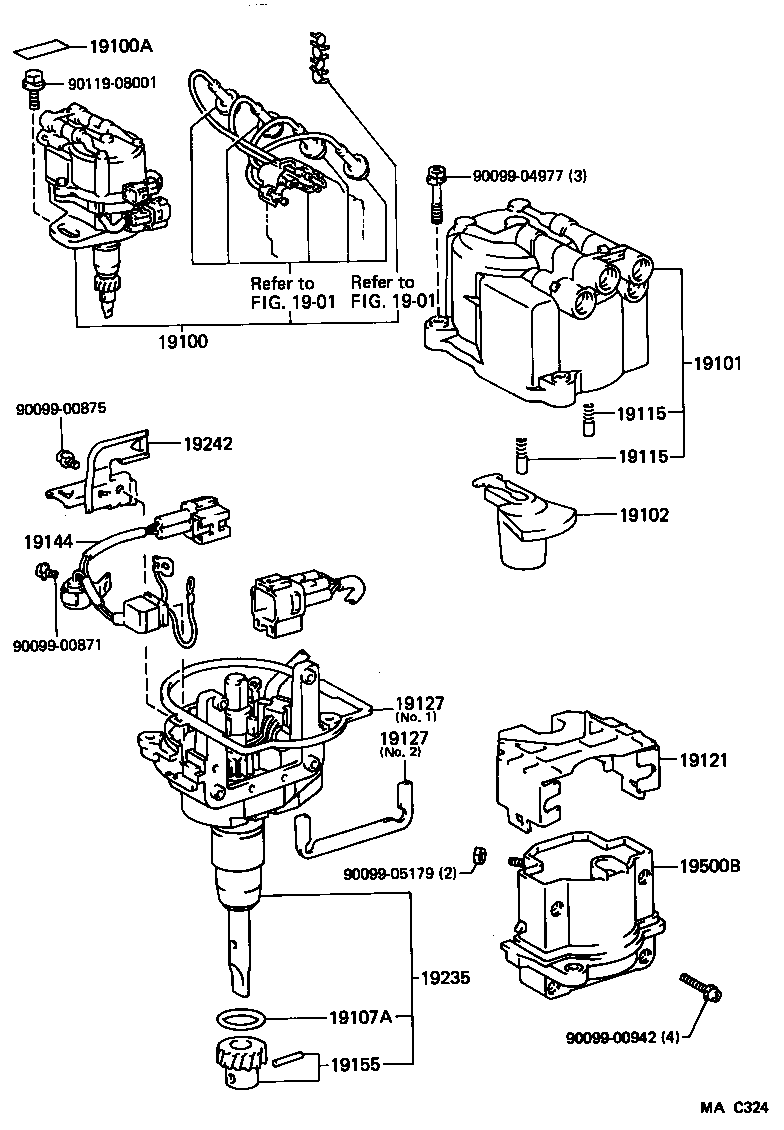

Click highlighted areas on diagram

diagram 1901 1901 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19127 19144 19155 19235 19242 19500B 9009900871 9009900875 9009900942 9009904977 9009905179 9011908001
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19030-72010

3YP..YS130

 1
19040-73040

3YPE..YS130

 1
19100A - TAPE, SEALING
90919-24004

3YP#..YS130

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-73030

3YP#..YS130

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-73030

3YP..YS130

 1
19102-16040

3YPE..YS130

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3YP..YS130

 1
90099-14106

3YPE..YS130

 1
90099-14090

3YPE..YS130

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-72010

3YP#..YS130

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-72010

3YP#..YS130

 2
19121 - COVER, DUST PROOF
19121-63040

3YP..YS130

NO.2

 1
19121-63040

3YPE..YS130

 1
19121-63010

3YP..YS130

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63010

3YP#..YS130

NO.1

 1
19127-63020

3YP#..YS130

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

3YP#..YS130

NO.1

 1
19127-63020

3YP#..YS130

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-16170

3YPE..YS130

 1
19144-71011

3YP..YS130

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71010

3YP#..YS130

 1
19235 - HOUSING, DISTRIBUTOR
19235-73040

3YPE..YS130

 1
19242 - CLAMP, CORD
19242-73030

3YPE..YS130

 1
19242-71010

3YP..YS130

 1
19500B - COIL ASSY, IGNITION
90919-02139

3YP..YS130

 1
90919-02135

3YPE..YS130

 1
Common parts
90099-00871
90099-00875
90099-00942
90099-04977
90099-05179
90119-08001
Linked diagrams
1901
