YS130-AEJDN (1989)
Toyota Crown
Production
Aug 1989
-
Oct 1991
Engine
3YPE
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )3YPE

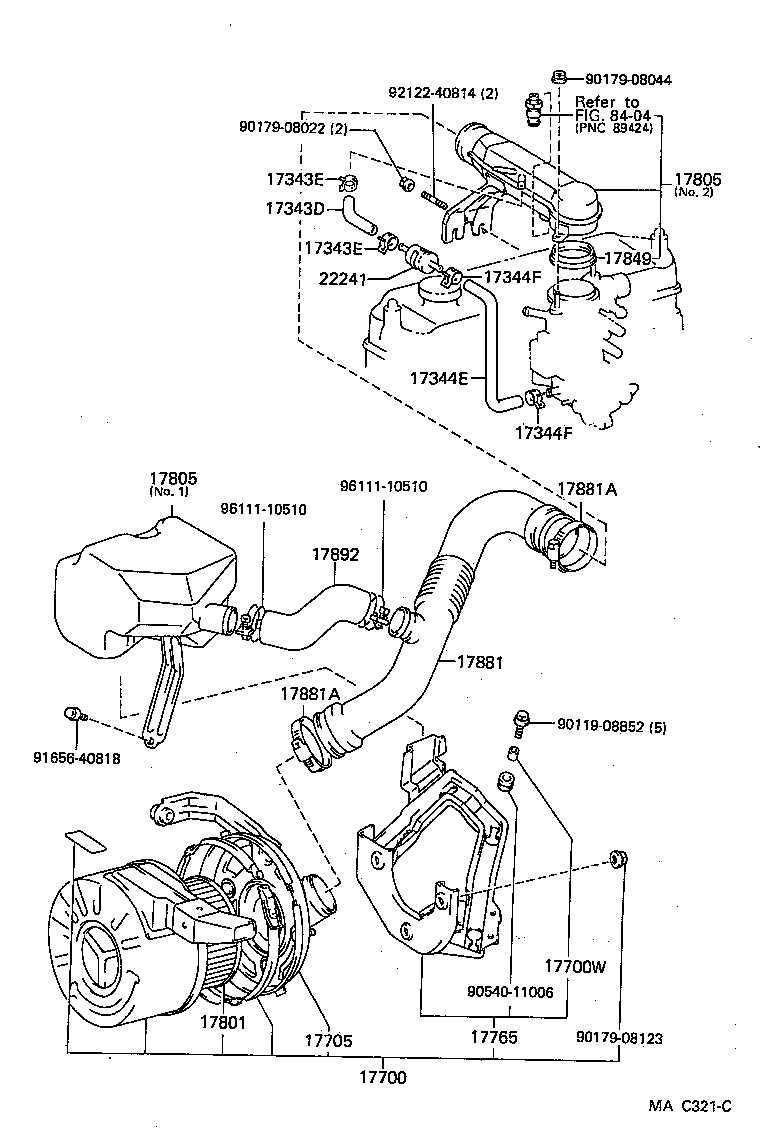

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-73010 |
3YPE..YS130 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-15012 |
3YPE..YS130 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-15012 |
3YPE..YS130 |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-73010 |
3YPE..YS130 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90467-15012 |
3YPE..YS130 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90467-15012 |
3YPE..YS130 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73180 |
3YP..YS130 |
1 | ||
| 17700-73250 |
3YPE..YS130 |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-08026 |
3YPE..YS130 |
4 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73060 |
3YP..YS130 |
1 | ||
| 17705-73110 |
3YPE..YS130 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-54030 |
3YPE..YS130 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44040 |
3YP..YS130 |
1 | ||
| 17801-73020 |
3YPE..YS130 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73120 |
3YPE..YS130 NO.2 |
1 | ||
| 17805-73130 |
3YPE..YS130 NO.1 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73120 |
3YPE..YS130 NO.2 |
1 | ||
| 17805-73130 |
3YPE..YS130 NO.1 |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-73010 |
3YPE..YS130 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73110 |
3YPE..YS130 |
1 | ||
| 17881-73120 |
3YPE..YS130 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-88001 |
3YPE..YS130 AIR CLEANER SIDE |
1 | ||
| 90460-77002 |
3YPE..YS130 CONECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-88001 |
3YPE..YS130 AIR CLEANER SIDE |
1 | ||
| 90460-77002 |
3YPE..YS130 CONECTOR SIDE |
1 | ||
| 17892 - HOSE, INTAKE AIR RESONATOR | ||||
| 17892-73020 |
3YPE..YS130 |
1 | ||
| 22241 - LIMITTER VACUUM | ||||
| 22241-70010 |
3YPE..YS130 |
1 | ||
| Common parts | ||||
| 90119-08852 | ||||
| 90179-08022 | ||||
| 90179-08044 | ||||
| 90179-08123 | ||||
| 90540-11006 | ||||
| 91656-40818 | ||||
| 92122-40814 | ||||
| 96111-10510 | ||||
| Linked diagrams | ||||
| 8404 | ||||
