YS130-AEJDN (1989)
Toyota Crown
Production
Aug 1989
-
Oct 1991
Engine
3YPE
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )3YPE

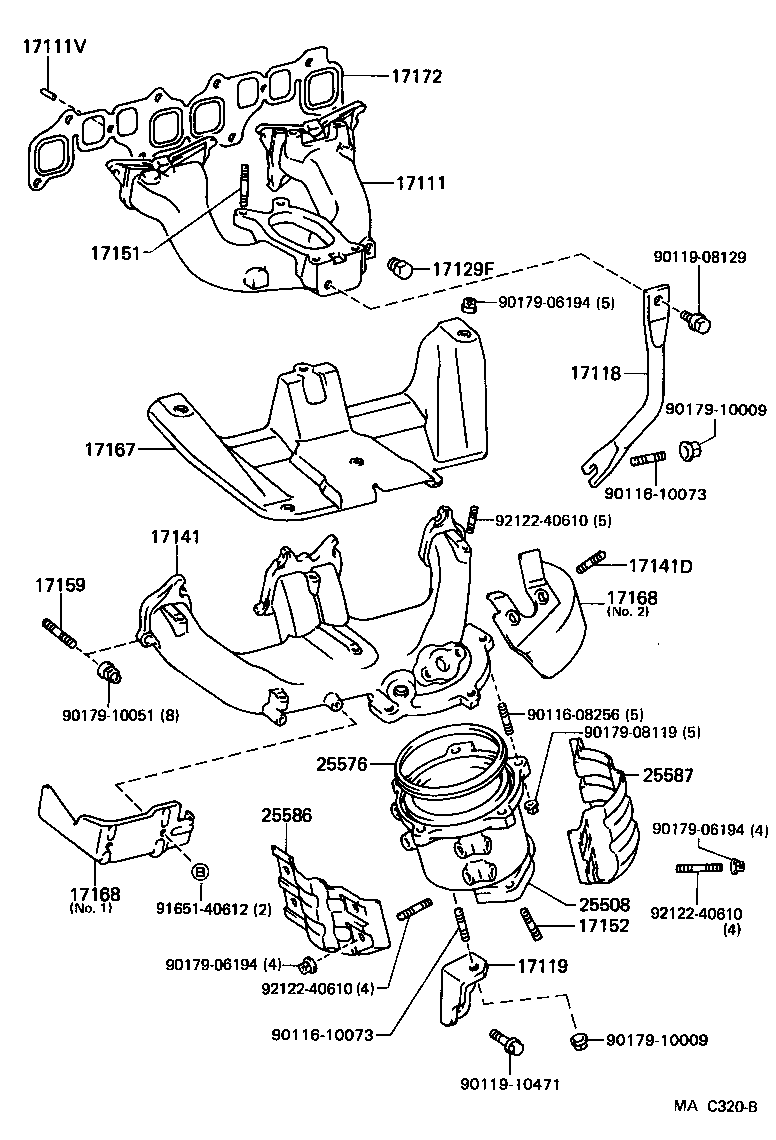

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-72011 |
3YP..YS130 |
1 | ||
| 17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) | ||||
| 90250-08120 |
3YP#..YS130 |
4 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-73030 |
3YPE..YS130 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-73020 |
3YPE..YS130 |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51006 |
3YPE..YS130 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-73020 |
3YPE..YS130 |
1 | ||
| 17141-72010 |
3YP..YS130 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
3YP#..YS130 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08160 |
3YP#..YS130 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3YP..YS130 |
3 | ||
| 90116-10058 |
3YPE..YS130 |
2 | ||
| 90116-10148 |
3YPE..YS130 |
2 | ||
| 90116-10146 |
3YPE..YS130 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
3YP#..YS130 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-72010 |
3YP..YS130 |
1 | ||
| 17167-73030 |
3YPE..YS130 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 12521-72010 |
3YP#..YS130 NO.1 |
1 | ||
| 17168-73030 |
3YPE..YS130 NO.2 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 12521-72010 |
3YP#..YS130 NO.1 |
1 | ||
| 17168-73030 |
3YPE..YS130 NO.2 |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-71011 |
3YP#..YS130 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-73020 |
3YPE..YS130 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-15020 |
3YPE..YS130 |
1 | ||
| 25576-15010 |
3YPE..YS130 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-73020 |
3YPE..YS130 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-73020 |
3YPE..YS130 |
1 | ||
| Common parts | ||||
| 90116-08256 | ||||
| 90116-10073 | ||||
| 90119-08129 | ||||
| 90119-10471 | ||||
| 90179-06194 | ||||
| 90179-08119 | ||||
| 90179-10009 | ||||
| 90179-10051 | ||||
| 91651-40612 | ||||
| 92122-40610 | ||||
