YS130-AEJDN (1989)
Toyota Crown

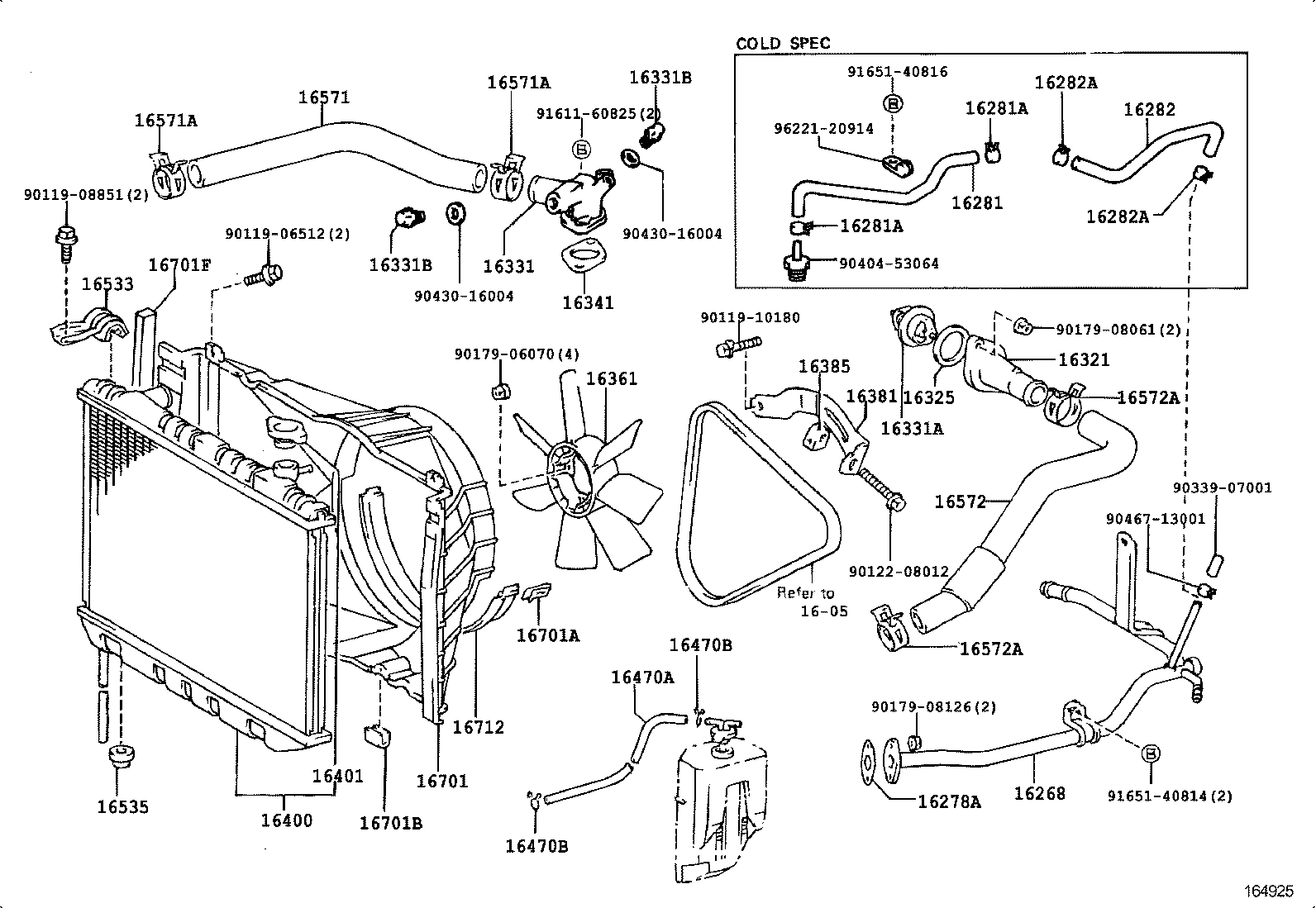

ILLUST NO. 1 OF 2(8908- )3YPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-73130 |
3YP..YS130 |
1 | ||
| 16268-73141 |
3YPE..YS130 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 17175-72010 |
3YP#..YS130 |
1 | ||
| 17175-72011 |
3YPE..YS130 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-73020 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13001 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13001 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-73020 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13001 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13001 |
3YPE..YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-71010 |
3YP#..YS130 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
3YP#..YS130 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-73010 |
3YPE..YS130 |
1 | ||
| 16331-71010 |
3YP..YS130 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03069 |
3YP..YS130 *WAX 82−95 |
1 | ||
| 90916-03082 |
3YPE..YS130 *WAX 76.5−90 |
1 | ||
| 90916-03069 |
3YPE..YS130 *WAX 82−95,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-16008 |
3YPE..YS130 |
2 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-16008 |
3YPE..YS130 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71010 |
3YP#..YS130 |
1 | ||
| 16341-71011 |
3YPE..YS130 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
3YP#..YS130 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73011 |
3YP#..YS130 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-71010 |
3YP#..YS130 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73310 |
3YP#..YS130..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3YP..YS130 |
1 | ||
| 16401-63010 |
3YPE..YS130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
3YP..YS130 |
1 | ||
| 85319-30280 |
3YPE..YS130 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3YP..YS130 |
2 | ||
| 90467-11085 |
3YPE..YS130 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3YP..YS130 |
2 | ||
| 90467-11085 |
3YPE..YS130 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
3YP#..YS130 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-35008 |
3YP#..YS130 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-73090 |
3YP..YS130 |
1 | ||
| 16571-73100 |
3YPE..YS130 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
3YP..YS130 OUTLET SIDE |
1 | ||
| 90467-37002 |
3YPE..YS130 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37001 |
3YP#..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37001 |
3YPE..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
3YPE..YS130 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
3YP..YS130 OUTLET SIDE |
1 | ||
| 90467-37002 |
3YPE..YS130 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37001 |
3YP#..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37001 |
3YPE..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
3YPE..YS130 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-73080 |
3YP#..YS130 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
3YP#..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3YP..YS130 OUTLET SIDE |
1 | ||
| 90467-37001 |
3YPE..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37006 |
3YPE..YS130 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
3YP#..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3YP..YS130 OUTLET SIDE |
1 | ||
| 90467-37001 |
3YPE..YS130 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37002 |
3YPE..YS130 |
2 | ||
| 90467-37006 |
3YPE..YS130 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-73100 |
3YP#..YS130 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3YP#..YS130 |
2 | ||
| 90468-06013 |
3YPE..YS130 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
3YP#..YS130 |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-41010 |
3YP#..YS130 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-73010 |
3YP#..YS130 |
1 | ||
| Common parts | ||||
| 90119-06512 | ||||
| 90119-08851 | ||||
| 90119-10180 | ||||
| 90122-08012 | ||||
| 90179-06070 | ||||
| 90179-08061 | ||||
| 90179-08126 | ||||
| 90339-07001 | ||||
| 90404-53064 | ||||
| 90430-16004 | ||||
| 90467-13001 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 96221-20914 | ||||
| Linked diagrams | ||||
| 1605 | ||||
