YS130-AEJBN (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 3YPE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9112- )LPEFI,TWLPG

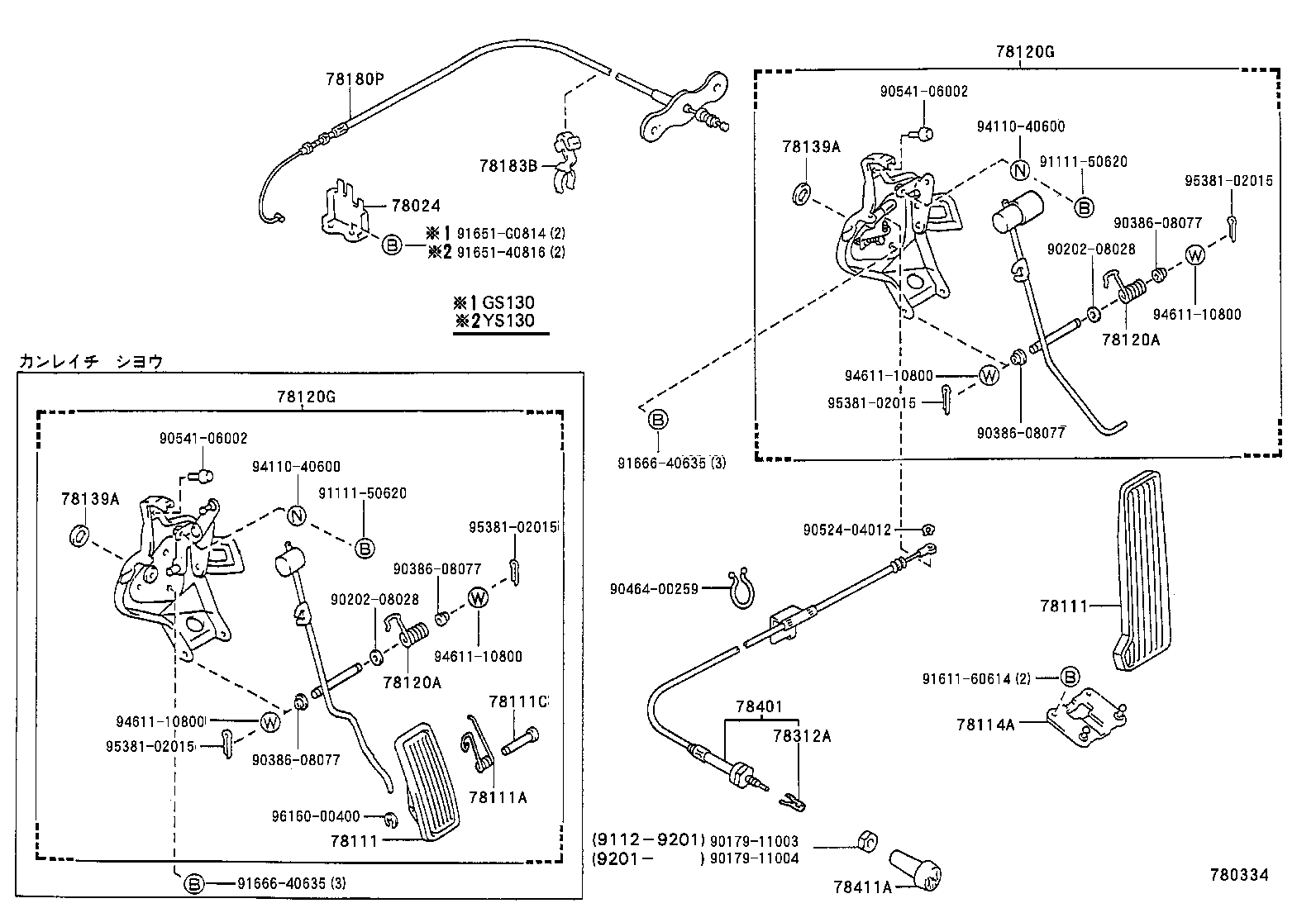

Click highlighted areas on diagram

diagram 78024 78111 78111 78111A 78111C 78114A 78120A 78120A 78120G 78120G 78139A 78139A 78180P 78183B 78312A 78401 78411A 9017911003 9017911004 9020208028 9020208028 9038608077 9038608077 9038608077 9038608077 9046400259 9052404012 9054106002 9054106002 9111150620 9111150620 9161160614 9165140816 91651G0814 9166640635 9166640635 9411040600 9411040600 9461110800 9461110800 9461110800 9461110800 9538102015 9538102015 9538102015 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22080

GS130,YS130..LPEFI,TWLPG

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GS13#,JZS13#,LS13#,YS130

 1
78111-30090

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GS13#,JZS13#,LS13#,YS130

 1
78111-30090

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18071

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05043

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050

GS13#,JZS13#,LS13#,YS130

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-23026

YS130

 2
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-23026

YS130

 2
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30511

YS130

 1
78120-30720

GS130,YS130..LPEFI,TWLPG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30511

YS130

 1
78120-30720

GS130,YS130..LPEFI,TWLPG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2
78139-30060

GS13#,JZS13#,LS13#,YS130

 1
78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2
78139-30060

GS13#,JZS13#,LS13#,YS130

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A410

YS130

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30070

GS130,YS130..LPEFI,TWLPG

 1
78312A - CLIP, CHOKE CONTROL
78312-30010

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78312-12010

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30100

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78401-30130

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78311-10041

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411-30031

YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-11003
90179-11004
90202-08028
90386-08077
90464-00259
90524-04012
90541-06002
91111-50620
91611-60614
91651-40816
91651-G0814
91666-40635
94110-40600
94611-10800
95381-02015
96160-00400
