YS130-AEJBN (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 3YPE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9112-9512)YS130..4H

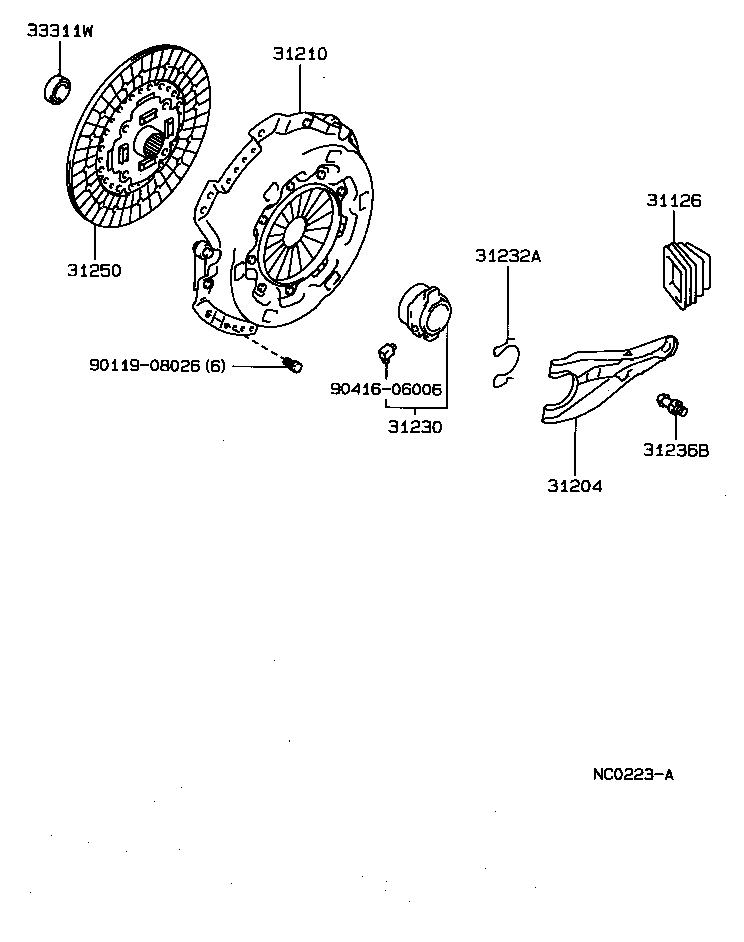

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908026 9041606006
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

YS130..4H

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20071

YS130..4H

 1
31210 - COVER ASSY, CLUTCH
31210-26050

YS130..4H

 1
31210-30270

YS130..4H

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-30150

YS130..4H

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35010

YS130..4H

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

GS130,136,LS136,YS130..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-20211

YS130..4H

 1
31250-20210

YS130..4H

 1
31250-30381

YS130..4H

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LS136,YS130..MTM

 1
Common parts
90119-08026
90416-06006
