YS120-SEBRP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3YPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

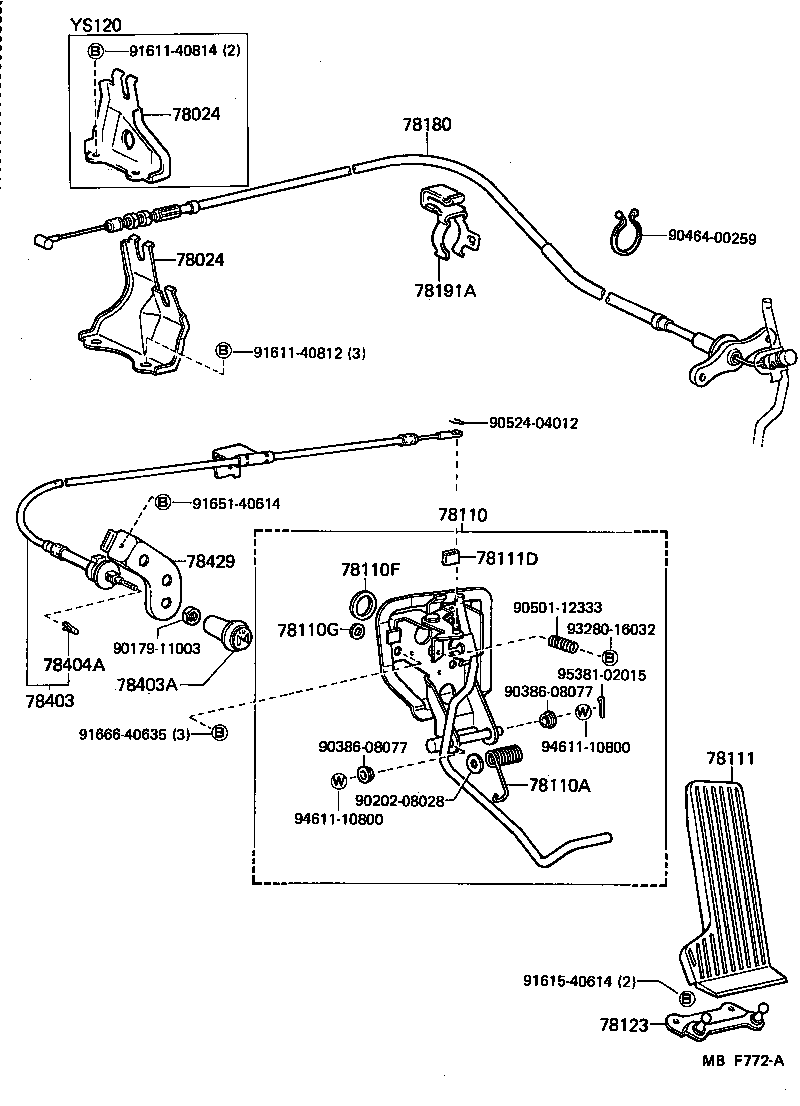

ILLUST NO. 1 OF 2(8308- )LPG

Click highlighted areas on diagram

diagram 78024 78024 78110 78110A 78110F 78110G 78111 78111D 78123 78180 78191A 78403 78403A 78404A 78429 9017911003 9020208028 9038608077 9038608077 9046400259 9050112333 9052404012 9161140812 9161140814 9161540614 9165140614 9166640635 9328016032 9461110800 9461110800 9538102015
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30110

YS120

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30110

YS120

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30470

YS120

 1
78120-30490

YS120

COLD SPEC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23026

LS120,MS120,YS120..MTM

 1
90508-29011

GS12#,LS12#,MS120,YS120..MTM

COLD SPEC

 1
90508-29011

GS12#,YS120..MTM

COLD SPEC

 1
90508-29011

GS12#,LS12#,YS120..MTM

COLD SPEC

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS12#,LS12#,MS12#,YS120

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS12#,LS12#,MS12#,YS120

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS12#,LS12#,MS12#,YS120

 1
78111-12100

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS12#,LS12#,MS12#,YS120

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050

GS12#,LS12#,MS12#,YS120

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30590

YS120

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-30070

GS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30070

MS120,YS120..LPG

 1
78403A - KNOB, THROTTLE CONTROL
78411-30031

MS120,YS120..LPG

 1
78404A - CLIP, THROTTLE FLEXIBLE WIRE
78312-12010

MS120,YS120..LPG

 1
78429 - BRACKET, THROTTLE ROD
78371-30060

MS120,YS120..LPG

 1
Common parts
90179-11003
90202-08028
90386-08077
90464-00259
90501-12333
90524-04012
91611-40812
91611-40814
91615-40614
91651-40614
91666-40635
93280-16032
94611-10800
95381-02015

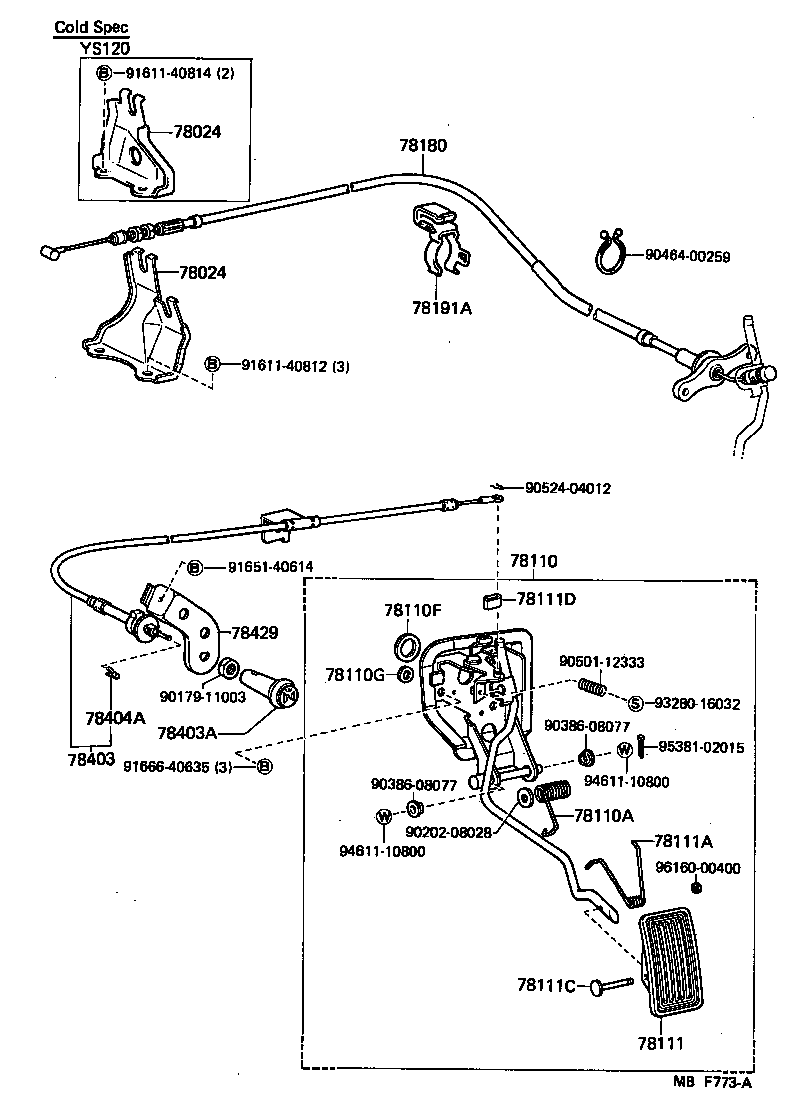

ILLUST NO. 2 OF 2(8308- )LPG

Click highlighted areas on diagram

diagram 78024 78024 78110 78110A 78110F 78110G 78111 78111A 78111C 78111D 78180 78191A 78403 78403A 78404A 78429 9017911003 9020208028 9038608077 9038608077 9046400259 9050112333 9052404012 9161140812 9161140814 9165140614 9166640635 9328016032 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30110

YS120

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30110

YS120

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30470

YS120

 1
78120-30490

YS120

COLD SPEC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23026

LS120,MS120,YS120..MTM

 1
90508-29011

GS12#,LS12#,MS120,YS120..MTM

COLD SPEC

 1
90508-29011

GS12#,YS120..MTM

COLD SPEC

 1
90508-29011

GS12#,LS12#,YS120..MTM

COLD SPEC

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS12#,LS12#,MS12#,YS120

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS12#,LS12#,MS12#,YS120

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS12#,LS12#,MS12#,YS120

 1
78111-12100

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16064

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS12#,LS12#,MS12#,YS120

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30590

YS120

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-30070

GS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30070

MS120,YS120..LPG

 1
78403A - KNOB, THROTTLE CONTROL
78411-30031

MS120,YS120..LPG

 1
78404A - CLIP, THROTTLE FLEXIBLE WIRE
78312-12010

MS120,YS120..LPG

 1
78429 - BRACKET, THROTTLE ROD
78371-30060

MS120,YS120..LPG

 1
Common parts
90179-11003
90202-08028
90386-08077
90464-00259
90501-12333
90524-04012
91611-40812
91611-40814
91651-40614
91666-40635
93280-16032
94611-10800
95381-02015
96160-00400
