YS120-SEBRP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3YPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

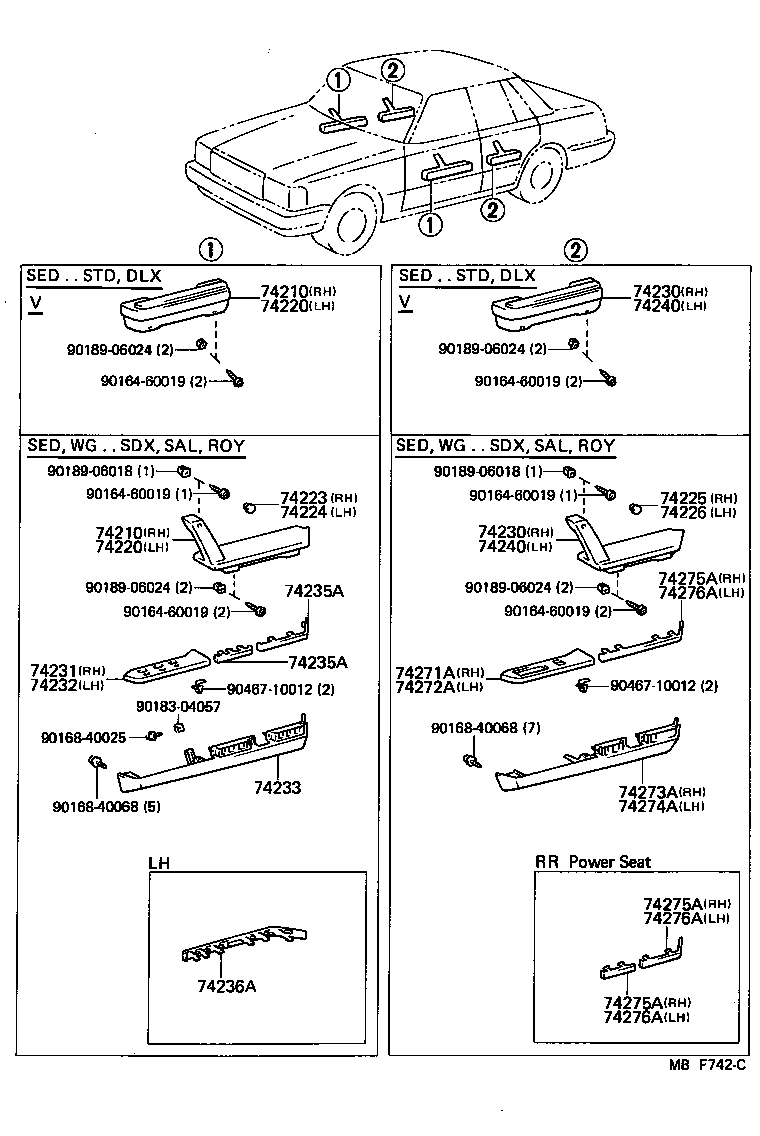

ILLUST NO. 1 OF 2(8308- )SED,V,WG

Click highlighted areas on diagram

diagram 74210 74210 74220 74220 74223 74224 74225 74226 74230 74230 74231 74232 74233 74235A 74235A 74236A 74240 74240 74271A 74272A 74273A 74274A 74275A 74275A 74275A 74276A 74276A 74276A 9016460019 9016460019 9016460019 9016460019 9016460019 9016460019 9016840025 9016840068 9016840068 9018304057 9018906018 9018906018 9018906024 9018906024 9018906024 9018906024 9046710012 9046710012
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74230 - ARMREST ASSY, REAR, RH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74230 - ARMREST ASSY, REAR, RH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74240 - ARMREST ASSY, REAR, LH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
74240 - ARMREST ASSY, REAR, LH
74210-3008014

GS120,LS120,MS120,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
Common parts
90164-60019
90168-40025
90168-40068
90183-04057
90189-06018
90189-06024
90467-10012

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74603 74603 74603 74604 74604 74604 74613 74613 74613 74613 74615C 74630B 9015960218 9015960218 9015960218 9015960218 9015960218 9015960218 9324016014 9353045020 9353045020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-3029004

GS120,126,LS12#,MS120,YS120..DLX,SDX,STD

LIGHT BLUE,BLUE,TRIM8#

 1
74310-3029104

GS120,126,LS12#,MS120,YS120..DLX,SDX,STD

BLUE,BLUE,TRIM8#

 1
74320 - VISOR ASSY, LH
74320-3028004

GS120,126,LS12#,MS120,YS120..DLX,SDX,STD

LIGHT BLUE,BLUE,TRIM8#

 1
74320-3031004

GS120,126,LS12#,MS120,YS120..DLX,SDX,STD

LIGHT BLUE,BLUE,TRIM8#

 1
74320-3028104

GS120,126,LS12#,MS120,YS120..DLX,SDX,STD

BLUE,BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1201014

GS12#,LS12#,MS12#,YS120

LIGHT BLUE,BLUE,TRIM8#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-3006004

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 2
74613 - PLUG, ASSIST GRIP
74617-1601014

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-1601014

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-1601014

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-1601014

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

LIGHT BLUE,BLUE,TRIM8#

 6
Common parts
90159-60218
93240-16014
93530-45020
