YS120-SEBRP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3YPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )3YPU

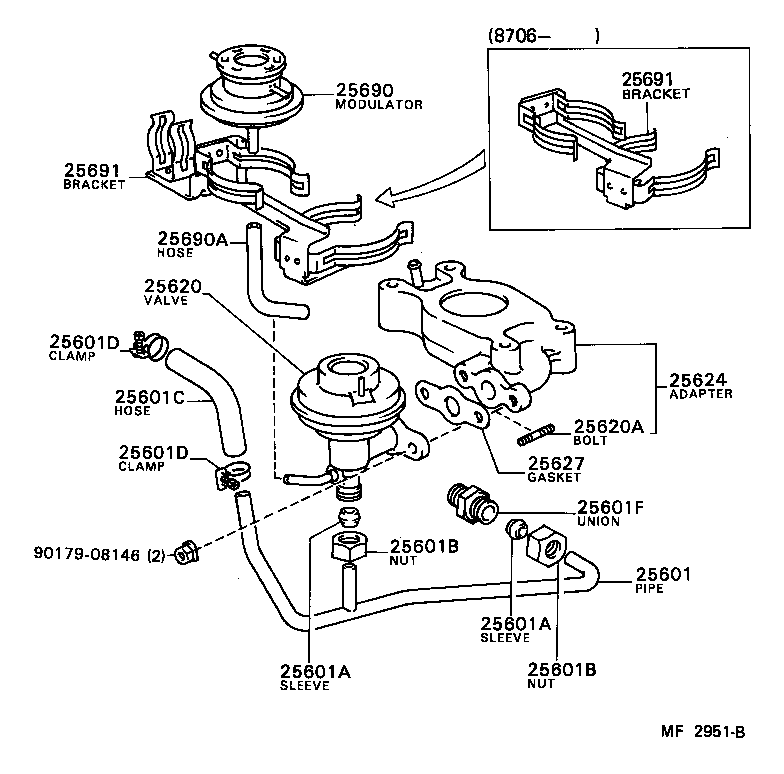

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25601C 25601D 25601D 25601F 25620 25620A 25624 25627 25690 25690A 25691 25691 9017908146
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-72010

3YPU..YS120

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

3YPU..YS120

UNION SIDE

 1
90410-12042

3YPU..YS120

VALVE SIDE

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

3YPU..YS120

UNION SIDE

 1
90410-12042

3YPU..YS120

VALVE SIDE

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

3YPU..YS120

VALVE SIDE

 1
90402-22010

3YPU..YS120

UNION SIDE

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

3YPU..YS120

VALVE SIDE

 1
90402-22010

3YPU..YS120

UNION SIDE

 1
25601C - HOSE(FOR EGR PIPE, NO.1)
17341-72010

3YPU..YS120

 1
25601D - CLIP OR CLAMP(FOR EGR PIPE, NO.1)
96112-10250

3YPU..YS120

 2
25601D - CLIP OR CLAMP(FOR EGR PIPE, NO.1)
96112-10250

3YPU..YS120

 2
25601F - UNION(FOR EGR PIPE, NO.1)
90404-22003

3YPU..YS120

 1
25620 - VALVE ASSY, EGR
25620-72010

3YPU..YS120

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08008

3YPU..YS120

 2
92112-40820

3YPU..YS120

 2
25624 - ADAPTER, EGR VALVE
25607-72010

3YPU..YS120

 1
25627 - GASKET, EGR VALVE
25627-31020

3YPU..YS120

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-72010

3YPU..YS120

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05137

3YPU..YS120

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-72010

3YPU..YS120

 1
25691-73030

3YPU..YS120

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-72010

3YPU..YS120

 1
25691-73030

3YPU..YS120

 1
Common parts
90179-08146
