YS120-SEBDP (1983)
Toyota Crown

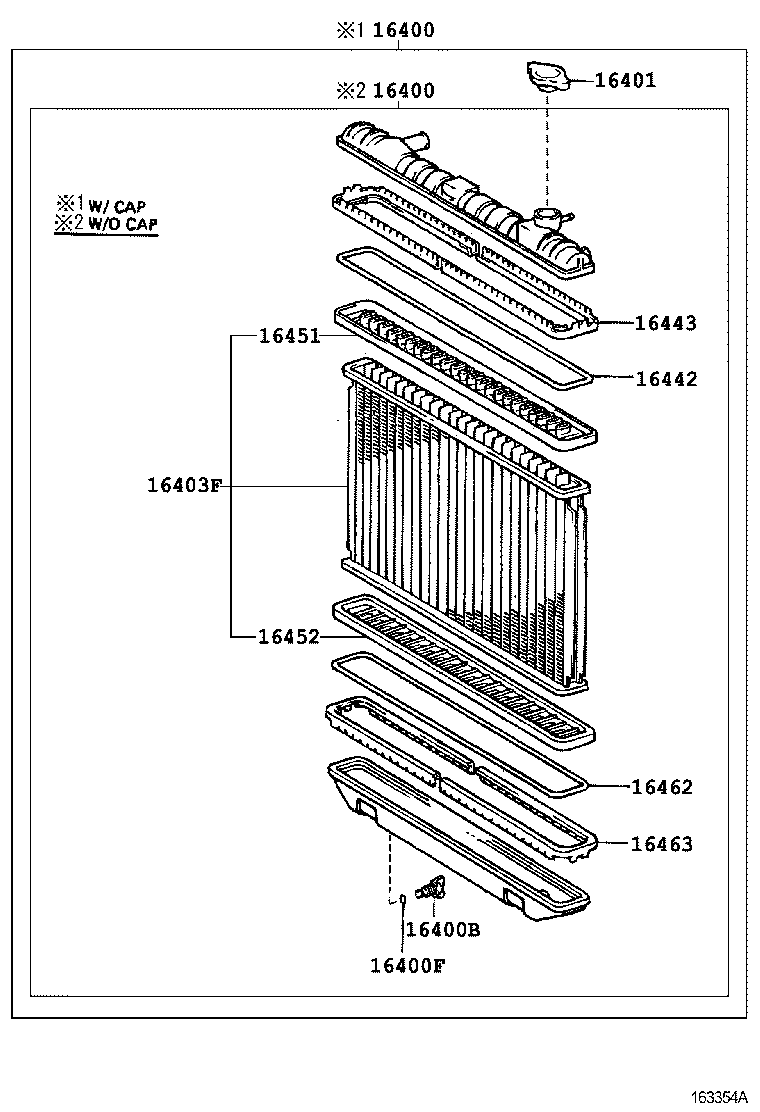

ILLUST NO. 2 OF 2(8308- )3YPU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-73040 |
3YPU..YS120 W/O CAP |
1 | ||
| 16400-73060 |
3YPU..YS120 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-73040 |
3YPU..YS120 W/O CAP |
1 | ||
| 16400-73060 |
3YPU..YS120 W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3YPU..YS120 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3YPU..YS120 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3YPU..YS120 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-73060 |
3YPU..YS120 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
3YPU..YS120 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35161 |
3YPU..YS120 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
3YPU..YS120 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
3YPU..YS120 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
3YPU..YS120 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35160 |
3YPU..YS120 |
2 | ||

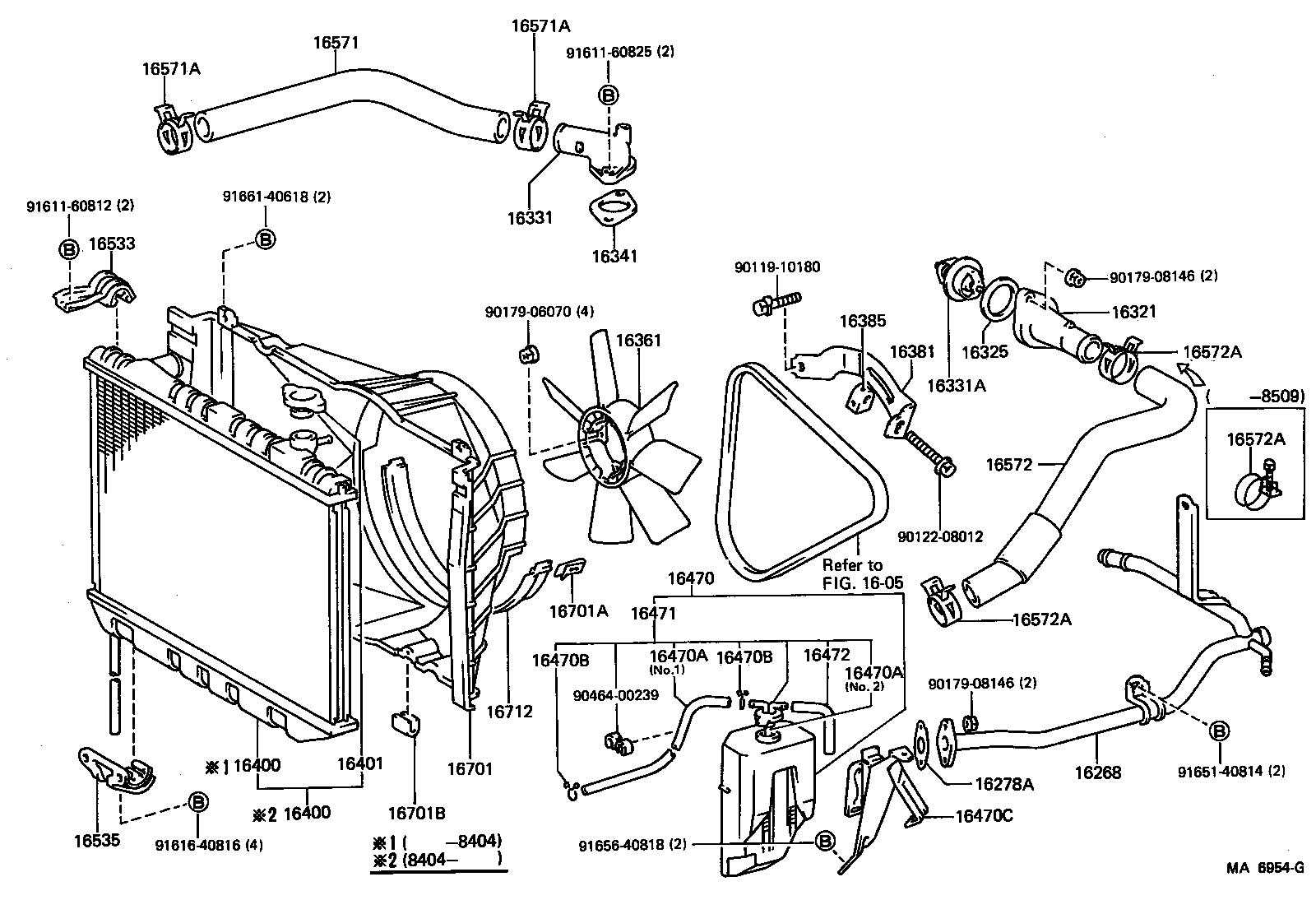

ILLUST NO. 1 OF 2(8308- )3YPU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-73021 |
3YPU..YS120 |
1 | ||
| 16268-73020 |
3YPU..YS120 |
1 | ||
| 16268-73090 |
3YPU..YS120 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 17175-72010 |
3YPU..YS120 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-71010 |
3YPU..YS120 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
3YPU..YS120 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
3YPU..YS120 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03069 |
3YPU..YS120 *WAX 82−95 |
1 | ||
| 90916-03046 |
3YPU..YS120 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71010 |
3YPU..YS120 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
3YPU..YS120 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73010 |
3YPU..YS120 |
1 | ||
| 16381-73011 |
3YPU..YS120 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-71010 |
3YPU..YS120 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-73040 |
3YPU..YS120 W/O CAP |
1 | ||
| 16400-73060 |
3YPU..YS120 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-73040 |
3YPU..YS120 W/O CAP |
1 | ||
| 16400-73060 |
3YPU..YS120 W/CAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3YPU..YS120 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-41150 |
3YPU..YS120 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
3YPU..YS120 *H,L=350 |
1 | ||
| 90445-12078 |
3YPU..YS120 *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
3YPU..YS120 *H,L=230,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
3YPU..YS120 *H,L=350 |
1 | ||
| 90445-12078 |
3YPU..YS120 *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
3YPU..YS120 *H,L=230,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3YPU..YS120 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3YPU..YS120 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-41070 |
3YPU..YS120 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41080 |
3YPU..YS120 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-41150 |
3YPU..YS120 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
3YPU..YS120 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16506-41010 |
3YPU..YS120 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-73030 |
3YPU..YS120 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3YPU..YS120 |
2 | ||
| 90467-37001 |
3YPU..YS120 RADIATOR SIDE |
1 | ||
| 90467-37002 |
3YPU..YS120 OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3YPU..YS120 |
2 | ||
| 90467-37001 |
3YPU..YS120 RADIATOR SIDE |
1 | ||
| 90467-37002 |
3YPU..YS120 OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-73020 |
3YPU..YS120 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
3YPU..YS120 RADIATOR SIDE |
1 | ||
| 96111-10440 |
3YPU..YS120 INLET SIDE |
1 | ||
| 90467-37002 |
3YPU..YS120 INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
3YPU..YS120 RADIATOR SIDE |
1 | ||
| 96111-10440 |
3YPU..YS120 INLET SIDE |
1 | ||
| 90467-37002 |
3YPU..YS120 INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
3YPU..YS120 RADIATOR SIDE |
1 | ||
| 96111-10440 |
3YPU..YS120 INLET SIDE |
1 | ||
| 90467-37002 |
3YPU..YS120 INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-73030 |
3YPU..YS120 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3YPU..YS120 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
3YPU..YS120 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-73010 |
3YPU..YS120 |
1 | ||
| Common parts | ||||
| 90119-10180 | ||||
| 90122-08012 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90464-00239 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91616-40816 | ||||
| 91651-40814 | ||||
| 91656-40818 | ||||
| 91661-40618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
