UZS131-ATSUK (1989)
Toyota Crown

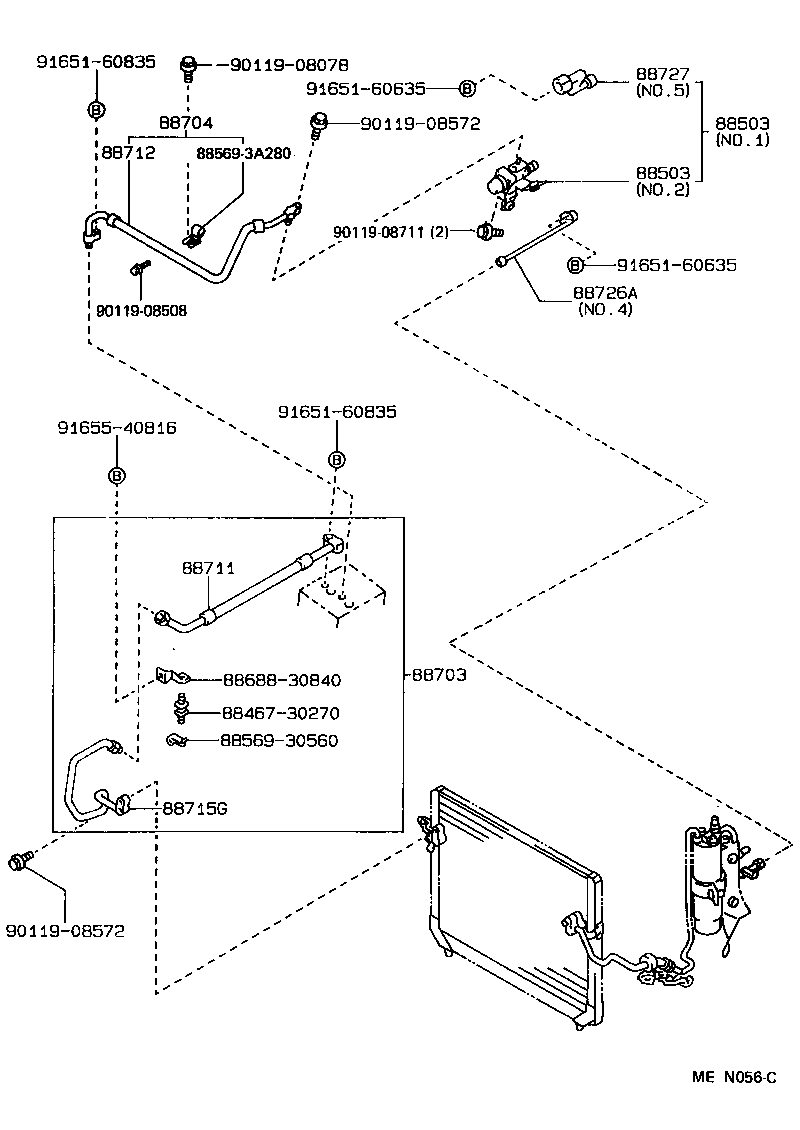

ILLUST NO. 2 OF 3(8908- )LS130,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30470 |
GS130,131,MS135,137..ROY,ROYG NO.2 |
1 | ||
| 88503-30470 |
GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔ ｴｱｺﾝ),NO.2 |
1 | ||
| 88503-30451 |
MS137,UZS131 NO.1 |
1 | ||
| 88503-30471 |
JZS13#,LS131,MS13#,UZS131 NO.2 |
1 | ||
| 88503-30500 |
MS137,UZS131 NO.1 |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30470 |
GS130,131,MS135,137..ROY,ROYG NO.2 |
1 | ||
| 88503-30470 |
GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔ ｴｱｺﾝ),NO.2 |
1 | ||
| 88503-30451 |
MS137,UZS131 NO.1 |
1 | ||
| 88503-30471 |
JZS13#,LS131,MS13#,UZS131 NO.2 |
1 | ||
| 88503-30500 |
MS137,UZS131 NO.1 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30260 |
GS130,131..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC) |
1 | ||
| 88703-30320 |
UZS131 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-30300 |
UZS131 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30640 |
GS130,131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC) |
1 | ||
| 88711-30730 |
UZS131 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A150 |
UZS131 |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-30350 |
JZS13#,MS13#,UZS131 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A050 |
GS130,131,LS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4 |
1 | ||
| 88726-3A110 |
GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A110 |
GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A100 |
GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2 |
1 | ||
| 88726-3A090 |
GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1 |
1 | ||
| 88726-3A250 |
GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A140 |
GS131..SSL..SPC;GS130,131,LS130,MS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC) NO.5 |
1 | ||
| 88726-3A020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6 |
1 | ||
| 88726-3A040 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5 |
1 | ||
| 88726-3A110 |
GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1 |
1 | ||
| 88726-3A100 |
LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 88726-3A250 |
GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A050 |
GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4 |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-30790 |
GS131..SSL..SPC;GS130,131,LS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) NO.4 |
1 | ||
| 88727-30750 |
GS130,131,LS130..(HT,SED)..(ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) ｱﾘ(ﾘﾔ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),NO.5 |
1 | ||
| 88727-30750 |
GS131..ROY..SPC;GS130,JZS131,MS135,137,UZS131..ROY,ROYG NO.3 |
1 | ||
| 88727-30740 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.2 |
1 | ||
| 88727-30720 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.1 |
1 | ||
| 88727-3A030 |
GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.5 |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88569-30560 | ||||
| 88569-3A280 | ||||
| 88688-30840 | ||||
| 90119-08078 | ||||
| 90119-08508 | ||||
| 90119-08572 | ||||
| 90119-08711 | ||||
| 91651-60635 | ||||
| 91651-60835 | ||||
| 91655-40816 | ||||
