UZS131-ATSUK (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 1UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1UZFE

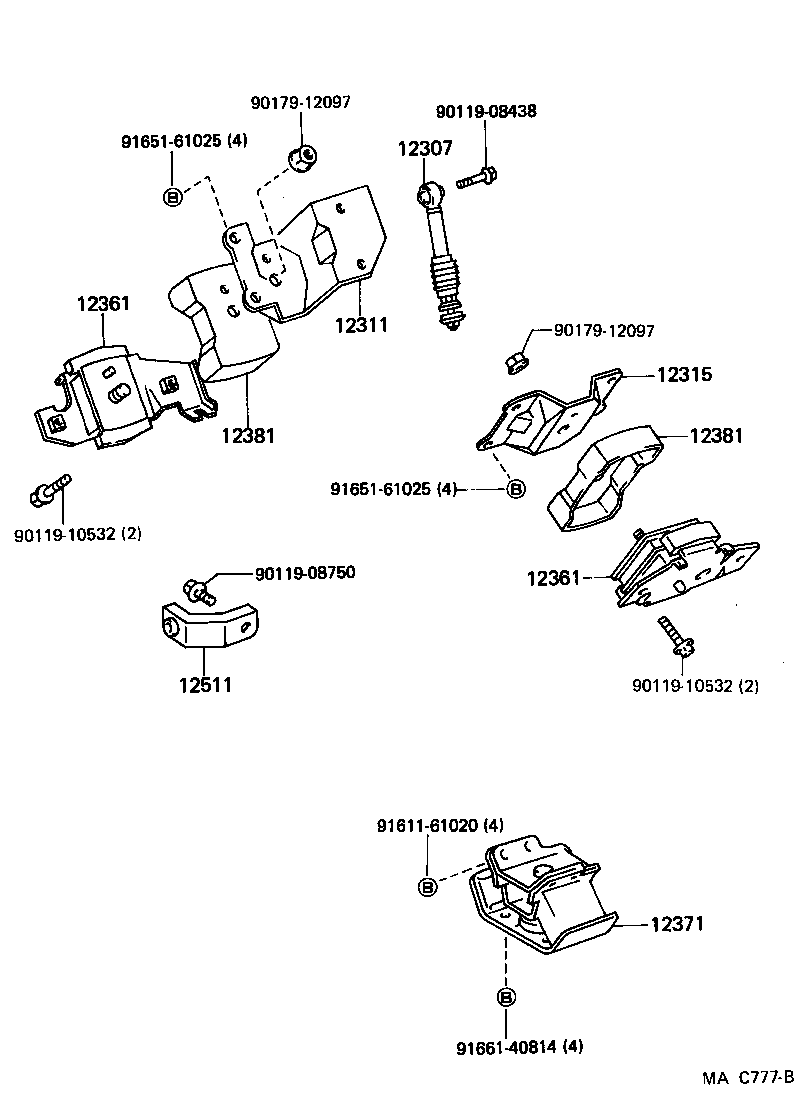

Click highlighted areas on diagram

diagram 12307 12311 12315 12361 12361 12371 12381 12381 12511 9011908438 9011908750 9011910532 9011910532 9017912097 9017912097 9161161020 9165161025 9165161025 9166140814
Part # Description Qty Price
12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING
12307-50010

1UZFE..UZS131

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50030

1UZFE..UZS131

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50020

1UZFE..UZS131

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50030

1UZFE..UZS131

右側

 1
12362-50010

1UZFE..UZS131

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50030

1UZFE..UZS131

右側

 1
12362-50010

1UZFE..UZS131

左側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50020

1UZFE..UZS131

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-50020

1UZFE..UZS131

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-50020

1UZFE..UZS131

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-50020

1UZFE..UZS131

 1
Common parts
90119-08438
90119-08750
90119-10532
90179-12097
91611-61020
91651-61025
91661-40814
