UZS131-ATPUK (1989)
Toyota Crown
(8908- )1UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

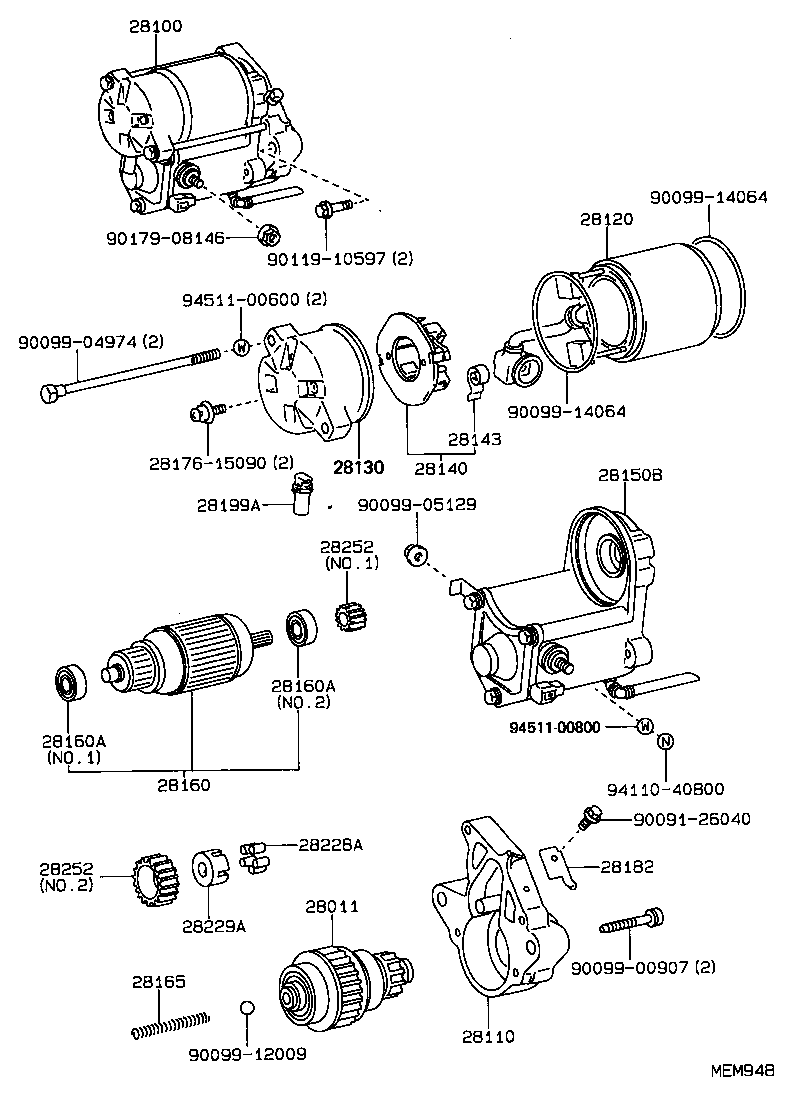

| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-50030 |
1UZFE..UZS131 |
1 | ||
| 28011-35030 |
1UZFE..UZS131 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-50030 |
1UZFE..UZS131 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-50030 |
1UZFE..UZS131 |
1 | ||
| 28110-50031 |
1UZFE..UZS131 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-65030 |
1UZFE..UZS131 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-50030 |
1UZFE..UZS131 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-65020 |
1UZFE..UZS131 |
1 | ||
| 28140-15090 |
1UZFE..UZS131 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GGP,7MGE,MP,1UZFE,3YP..GS130,MS13#,UZS131,YS130 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-50030 |
1UZFE..UZS131 |
1 | ||
| 28150-50031 |
1UZFE..UZS131 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-65030 |
1UZFE..UZS131 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
1UZFE..UZS131 NO.1 |
1 | ||
| 90099-65030 |
1UZFE..UZS131 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
1UZFE..UZS131 NO.1 |
1 | ||
| 90099-65030 |
1UZFE..UZS131 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-50030 |
1UZFE..UZS131 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-50030 |
1UZFE..UZS131 |
1 | ||
| 28199-15090 |
1UZFE..UZS131 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1UZFE..UZS131 NO.2 |
1 | ||
| 28254-54070 |
1UZFE..UZS131;2L,2LT..LS13#..MTM NO.2 |
1 | ||
| 28251-15090 |
1UZFE..UZS131 NO.1 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1UZFE..UZS131 NO.2 |
1 | ||
| 28254-54070 |
1UZFE..UZS131;2L,2LT..LS13#..MTM NO.2 |
1 | ||
| 28251-15090 |
1UZFE..UZS131 NO.1 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90091-26040 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-10597 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
