UZS131-AESUK (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 1UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1UZFE

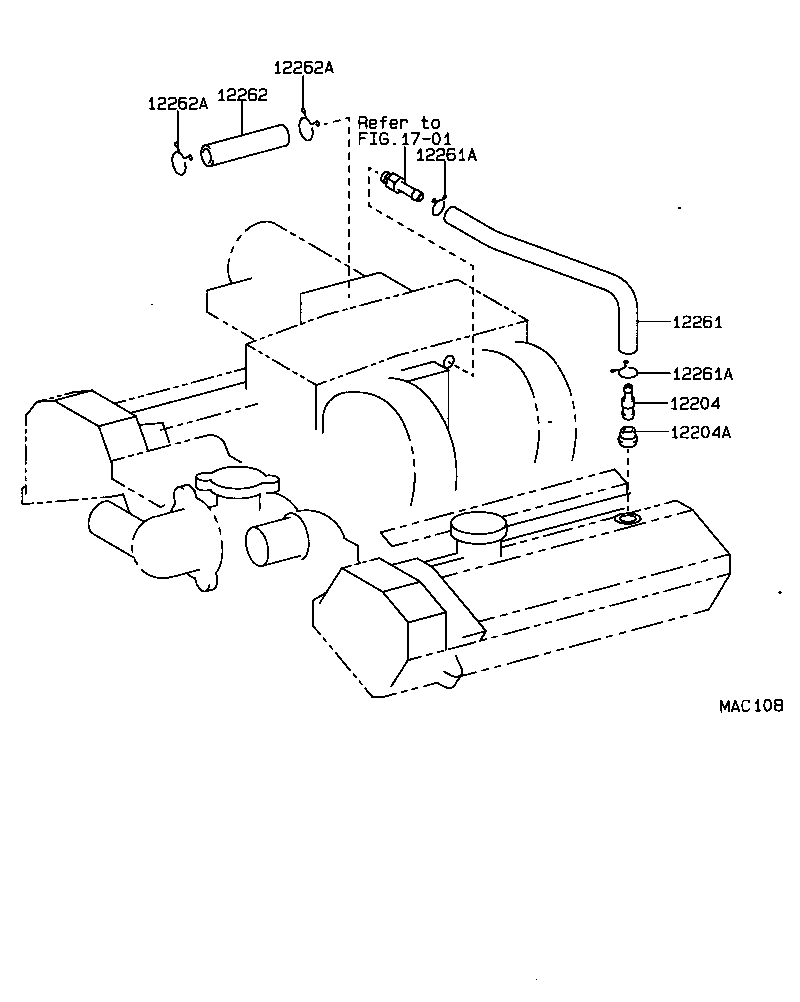

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-50010

1UZFE..UZS131

 1
12204-50011

1UZFE..UZS131

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1UZFE..UZS131

 1
90480-18001

1UZFE..UZS131

 1
12261 - HOSE, VENTILATION
12261-50020

1UZFE..UZS131

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS131

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS131

 2
12262 - HOSE, VENTILATION, NO.2
12262-50010

1UZFE..UZS131

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22009

1UZFE..UZS131

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22009

1UZFE..UZS131

 2
Linked diagrams
1701
