RS110-SEYTP (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
5RU
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )L,2LT#

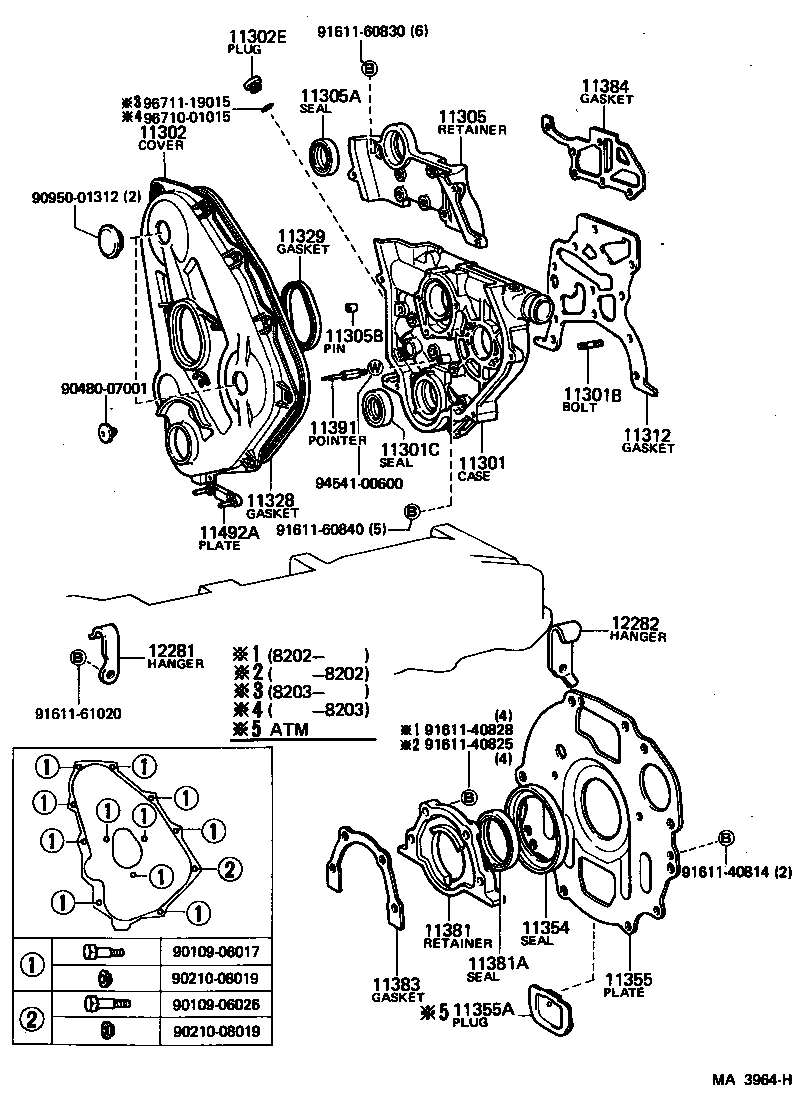

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-44021 |
5RU..RS110 |
1 | ||
| 11321-44030 |
5RU..RS110..BTP,DLX,TAX W/POWER STEERING |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-44011 |
5RU..RS110 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-44010 |
5RU..RS110 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-44011 |
5RU..RS110 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-44011 |
5RU..RS110 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80002 |
5RU..RS110 HTCY 80 100 12 13.5 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-44010 |
5RU..RS110 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-44020 |
5RU..RS110..BTP,DLX,TAX W/POWER STEERING |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-44020 |
5RU..RS110 |
1 | ||
| Common parts | ||||
| 90109-06017 | ||||
| 90109-06026 | ||||
| 90210-08019 | ||||
| 90480-07001 | ||||
| 90950-01312 | ||||
| 91611-40814 | ||||
| 91611-40825 | ||||
| 91611-40828 | ||||
| 91611-60830 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 94541-00600 | ||||
| 96710-01015 | ||||
| 96711-19015 | ||||
(7909- )5RU

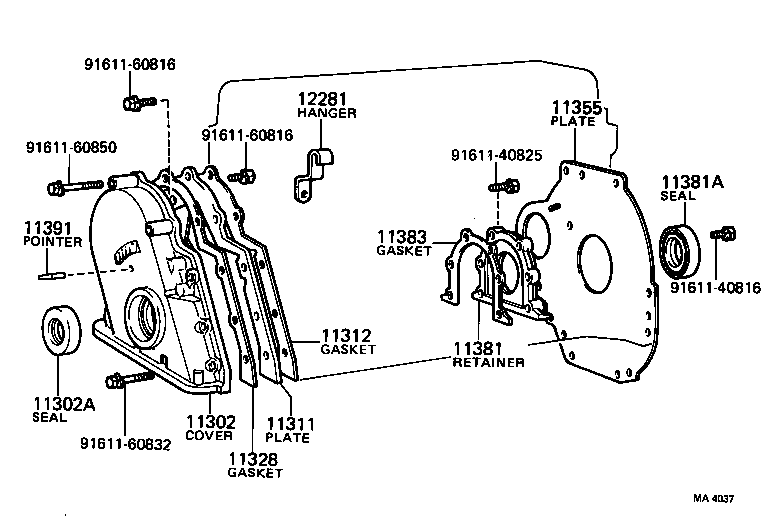

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-44021 |
5RU..RS110 |
1 | ||
| 11321-44030 |
5RU..RS110..BTP,DLX,TAX W/POWER STEERING |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-45002 |
5RU..RS110 TC 45 68 12 |
1 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-44011 |
5RU..RS110 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-44011 |
5RU..RS110 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-44010 |
5RU..RS110 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-44011 |
5RU..RS110 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-44011 |
5RU..RS110 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80002 |
5RU..RS110 HTCY 80 100 12 13.5 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-44010 |
5RU..RS110 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-44020 |
5RU..RS110..BTP,DLX,TAX W/POWER STEERING |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-44020 |
5RU..RS110 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40825 | ||||
| 91611-60816 | ||||
| 91611-60832 | ||||
| 91611-60850 | ||||
