Toyota Crown RS110 WIRING & CLAMP

RS110-SEBTP (1979)

Toyota Crown

Production Aug 1979 - Jul 1983

Engine 5RU

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

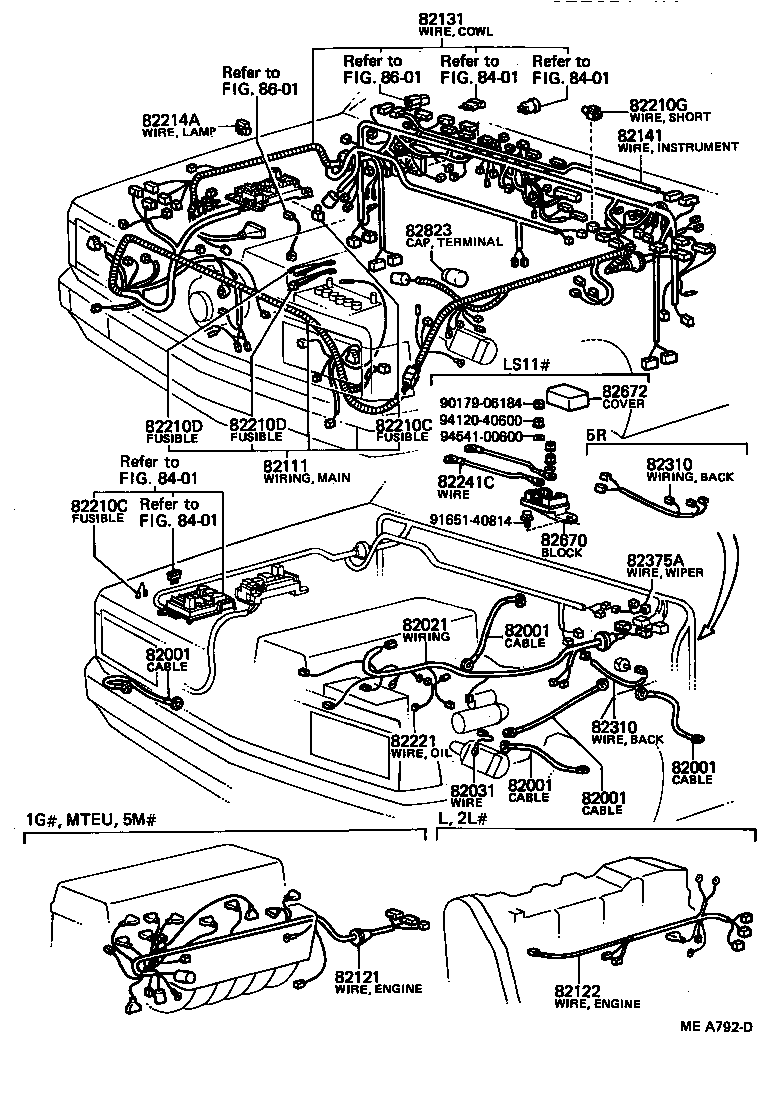

ILLUST NO. 1 OF 8(7909-8108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-12490	RS110	09/1979 - 08/1981	1
82111 - WIRE, ENGINE ROOM MAIN
82020-30650	RS110..STD,TAX	09/1979 - 02/1980	1
82020-30660	RS110..BTP,DLX	09/1979 - 02/1980	1
82020-30651	RS110..STD,TAX	02/1980 - 08/1981	1
82020-30661	RS110..BTP,DLX	02/1980 - 08/1981	1
82111-30260	RS110..BTP,DLX	08/1981 - 07/1983	1
82111-30270	RS110..STD,TAX	08/1981 - 07/1983	1
82131 - WIRE, COWL
82220-3A170	RS110..TAX	09/1979 - 10/1979	1
82220-3A180	RS110..BTP,DLX,STD	09/1979 - 02/1980	1
82220-3A171	RS110..TAX	10/1979 - 02/1980	1
82220-3A181	RS110..BTP,DLX,STD	02/1980 - 10/1980	1
82220-3A172	RS110..TAX	02/1980 - 10/1980	1
82220-3A173	RS110..TAX	10/1980 - 08/1981	1
82220-3A182	RS110..BTP,DLX,STD	10/1980 - 08/1981	1
82131-30350	RS110..BTP,DLX	08/1981 - 07/1983	1
82131-30360	RS110..TAX	08/1981 - 07/1983	1
82141 - WIRE, INSTRUMENT PANEL
82201-30310	LS110,RS110..TAX	09/1979 - 08/1981	1
82201-30320	LS11#,RS110..MTM..(BTP,CTE,DLX,SDX,STD)	09/1979 - 08/1981	1
82141-30040	GS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD)	08/1981 - 07/1983	1
82141-30030	LS110,RS110..TAX	08/1981 - 07/1983	1

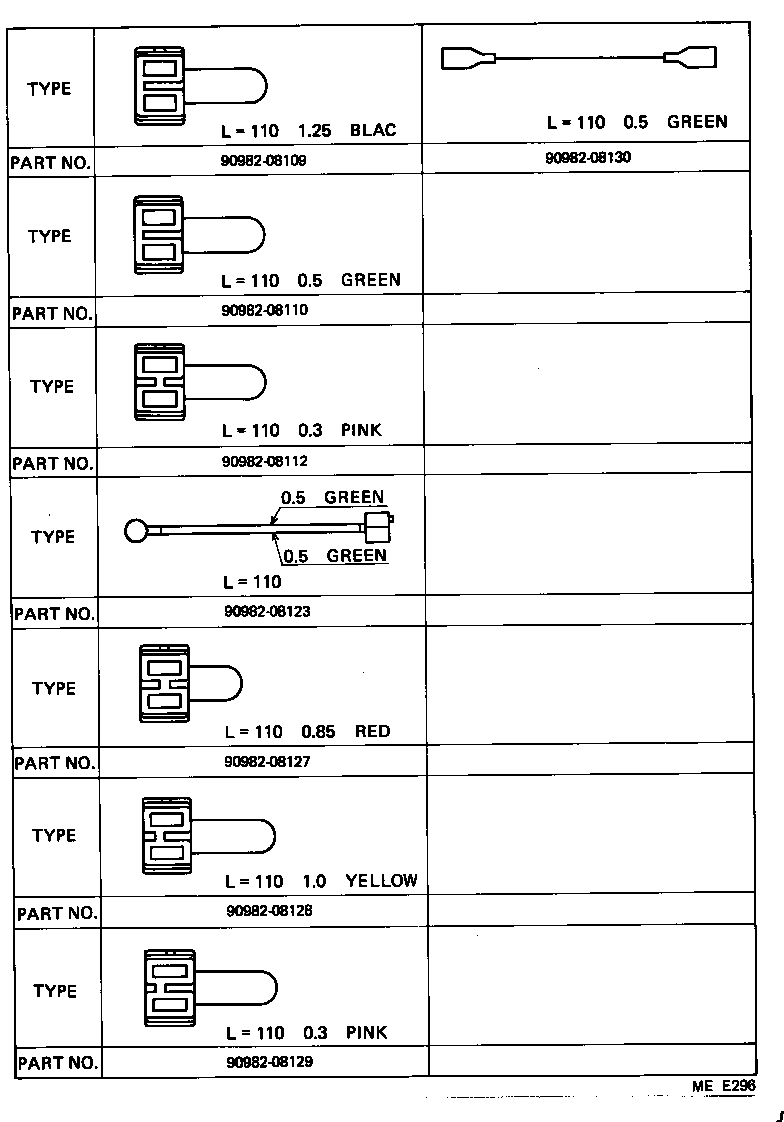

82210C - FUSIBLE LINK
90982-08112	GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK	09/1979 - 07/1983	1
90982-08110	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	GS11#,MS11#,RS110 L=110,1.25,BLACK	08/1981 - 07/1983	1
90982-08127	GS11#,LS11#,MS11#,RS110 L=110,0.85,RED	09/1979 - 07/1983	1
90982-08130	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	LS11#,MS11#,RS110 L=110,1.25,BLACK	09/1979 - 08/1981	1
82210C - FUSIBLE LINK
90982-08112	GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK	09/1979 - 07/1983	1
90982-08110	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	GS11#,MS11#,RS110 L=110,1.25,BLACK	08/1981 - 07/1983	1
90982-08127	GS11#,LS11#,MS11#,RS110 L=110,0.85,RED	09/1979 - 07/1983	1
90982-08130	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	LS11#,MS11#,RS110 L=110,1.25,BLACK	09/1979 - 08/1981	1
82210C - FUSIBLE LINK
90982-08112	GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK	09/1979 - 07/1983	1
90982-08110	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	GS11#,MS11#,RS110 L=110,1.25,BLACK	08/1981 - 07/1983	1
90982-08127	GS11#,LS11#,MS11#,RS110 L=110,0.85,RED	09/1979 - 07/1983	1
90982-08130	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	LS11#,MS11#,RS110 L=110,1.25,BLACK	09/1979 - 08/1981	1
82210D - FUSIBLE LINK
90982-08182	GS11#,LS11#,MS11#,RS110 0.5G,0.5G & 2L	10/1980 - 07/1983	1
82210G - WIRE, SHORT
82213-30020	RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD W/*IT	09/1979 - 07/1983	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30250	RS110..4H	09/1979 - 10/1980	1
82310-30310	RS110..3H,4H	10/1980 - 07/1983	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30250	RS110..4H	09/1979 - 10/1980	1
82310-30310	RS110..3H,4H	10/1980 - 07/1983	1
82375A - WIRE, WIPER MOTOR
82375-24010	GS110,LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE COLD SPEC	08/1981 - 04/1982	1
82823 - CAP, TERMINAL, NO.1
82823-30010	GS110,MS110,112,RS110	09/1979 - 07/1983	1
Linked diagrams
8401
8601

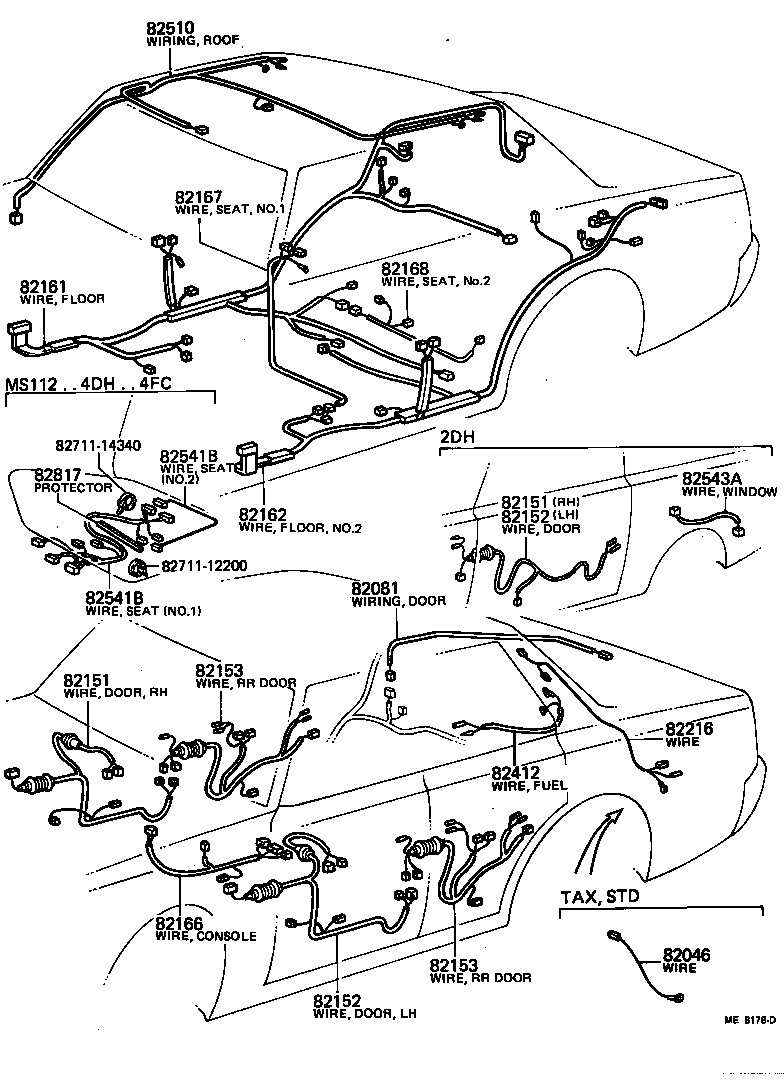

ILLUST NO. 2 OF 8(7909- )HT,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-30060	LS110,MS110,RS110..STD,TAX W/RR WINDOW DEFOGGER	09/1979 - 07/1983	1
82081 - WIRING ASSY, DOOR LOCK
82081-30030	MS110,RS110..LPG	09/1979 - 07/1983	1
82151 - WIRE, FRONT DOOR, RH
82505-30230	LS110,MS110,RS110..BTP	09/1979 - 07/1983	1
82151 - WIRE, FRONT DOOR, RH
82505-30230	LS110,MS110,RS110..BTP	09/1979 - 07/1983	1
82152 - WIRE, FRONT DOOR, LH
82505-30230	LS110,MS110,RS110..BTP	09/1979 - 07/1983	1
82152 - WIRE, FRONT DOOR, LH
82505-30230	LS110,MS110,RS110..BTP	09/1979 - 07/1983	1
82153 - WIRE, REAR DOOR, NO.1
82507-30140	MS110,RS110..(BTP,STD,TAX)..LPG	09/1979 - 08/1981	2
82153-30060	RS110;MS110..BTP..LPG	08/1981 - 07/1983	2
82153 - WIRE, REAR DOOR, NO.1
82507-30140	MS110,RS110..(BTP,STD,TAX)..LPG	09/1979 - 08/1981	2
82153-30060	RS110;MS110..BTP..LPG	08/1981 - 07/1983	2
82161 - WIRE, FLOOR
82420-30400	MS110,RS110..(BTP,STD,TAX)..LPG	09/1979 - 08/1981	1
82161-30470	MS110,RS110..(BTP,STD,TAX)..LPG	08/1981 - 07/1983	1
82162 - WIRE, FLOOR, NO.2
82420-30530	MS110,RS110..(BTP,STD,TAX)..LPG	09/1979 - 08/1981	1
82161-30080	RS110;MS110..BTP..LPG	08/1981 - 07/1983	1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-30150	LS110,MS110,RS110..STD,TAX W/RR WINDOW DEFOGGER	09/1979 - 07/1983	1
82216-30130	GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)	09/1979 - 07/1983	1
82412 - WIRE, FUEL GAGE
82412-30050	MS110,RS110..LPG	09/1979 - 08/1981	1
82412-30051	MS110,RS110..LPG	08/1981 - 07/1983	1
82510 - WIRING ASSY, ROOF
82510-30360	MS110,RS110..(BTP,STD,TAX)..LPG	09/1979 - 07/1983	1
Common parts
82711-12200
82711-14340

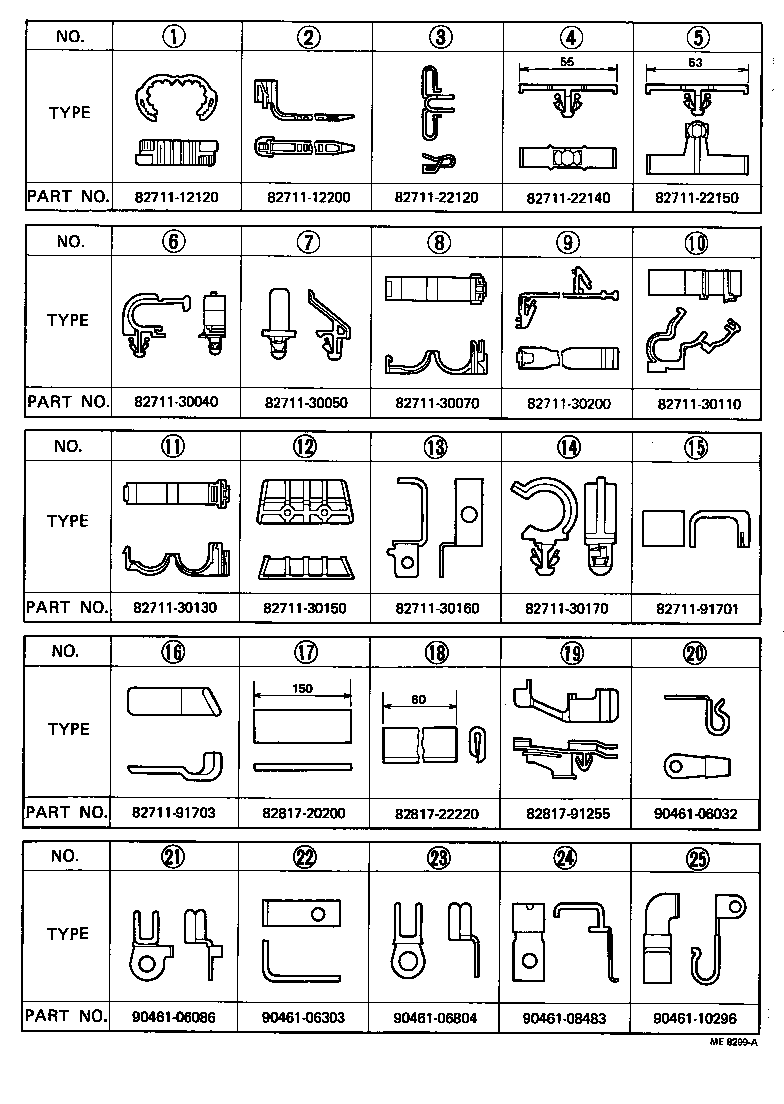

ILLUST NO. 4 OF 8(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12120
82711-12200
82711-22120
82711-22140
82711-22150
82711-30040
82711-30050
82711-30070
82711-30110
82711-30130
82711-30150
82711-30160
82711-30170
82711-30200
82711-91701
82711-91703
82817-20200
82817-22220
82817-91255
90461-06032
90461-06086
90461-06303
90461-06804
90461-08483
90461-10296

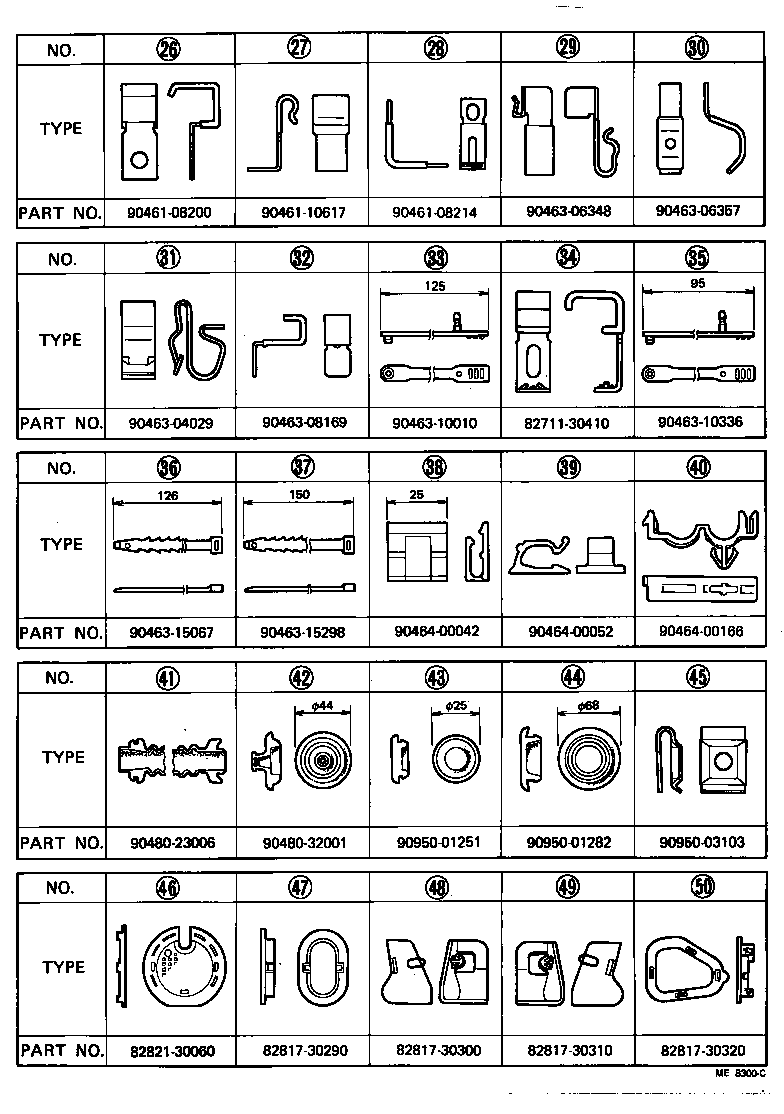

ILLUST NO. 5 OF 8(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-30410
82817-30290
82817-30300
82817-30310
82817-30320
82821-30060
90461-08200
90461-08214
90461-10617
90463-04029
90463-06348
90463-06357
90463-08169
90463-10010
90463-10336
90463-15067
90463-15298
90464-00042
90464-00052
90464-00166
90480-23006
90480-32001
90950-01251
90950-01282
90950-03103

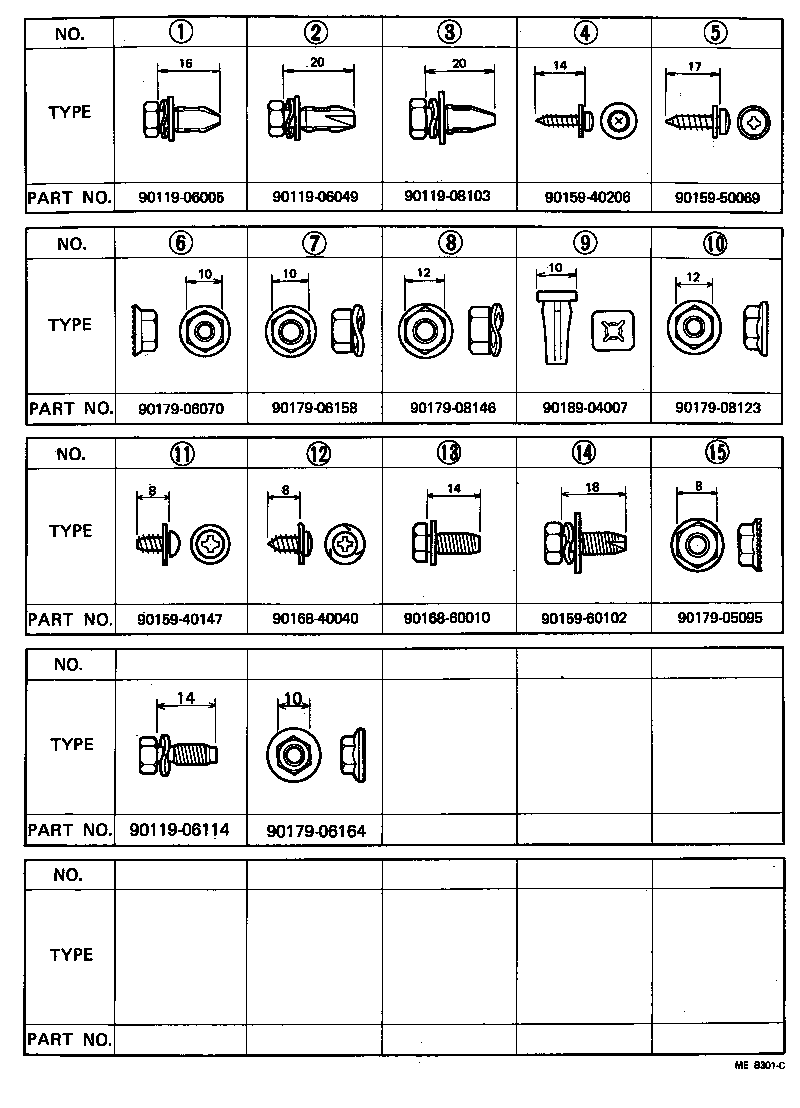

ILLUST NO. 8 OF 8(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06005
90119-06049
90119-06114
90119-08103
90159-40147
90159-40206
90159-50069
90159-60102
90168-40040
90168-60010
90179-05095
90179-06070
90179-06158
90179-06164
90179-08123
90179-08146
90189-04007

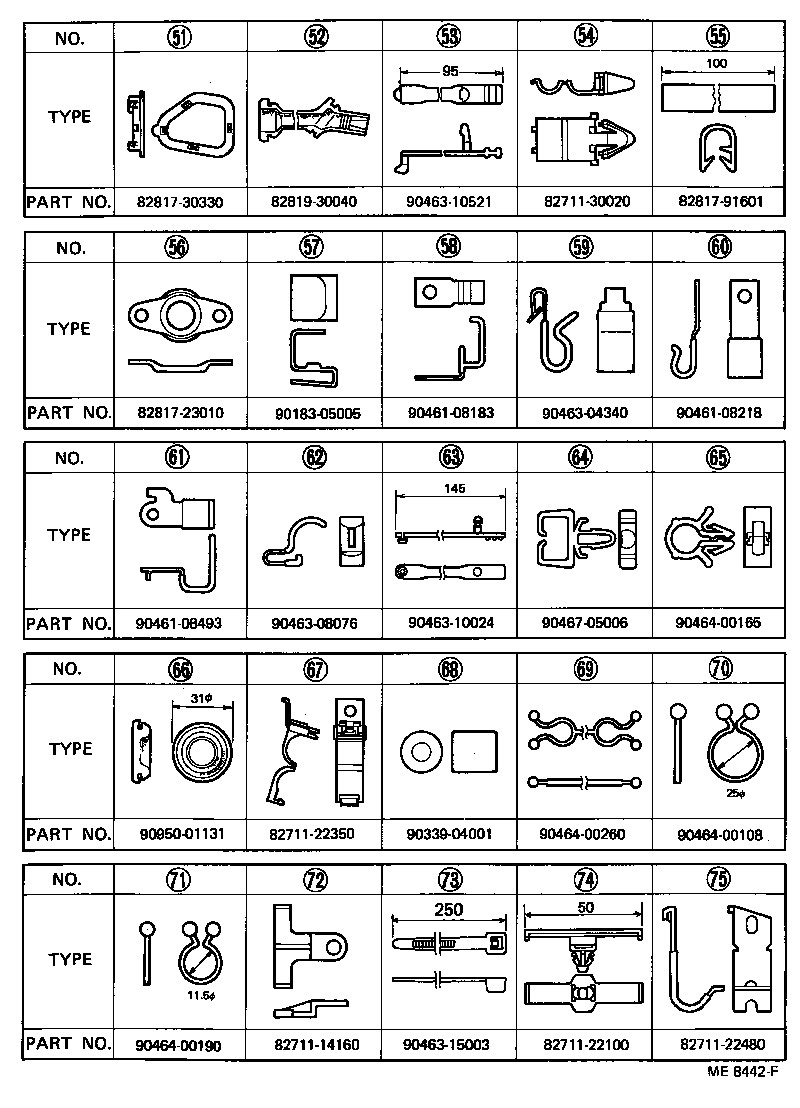

ILLUST NO. 6 OF 8(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14160
82711-22100
82711-22350
82711-22480
82711-30020
82817-23010
82817-30330
82817-91601
82819-30040
90183-05005
90339-04001
90461-08183
90461-08218
90461-08493
90463-04340
90463-08076
90463-10024
90463-10521
90463-15003
90464-00108
90464-00165
90464-00190
90464-00260
90467-05006
90950-01131

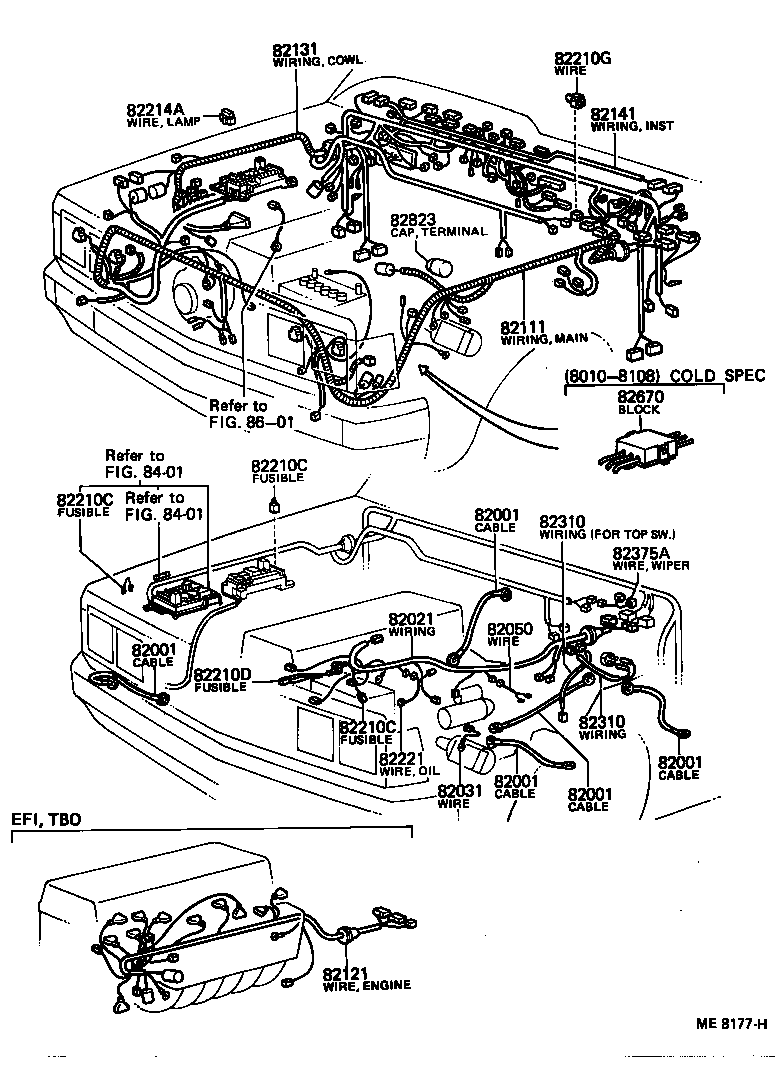

ILLUST NO. 1 OF 8(8108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	GS11#,MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	GS11#,MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07061	LS110,MS110,RS110..STD,TAX L=300	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07064	GS11#,MS11#,RS110 L=170	09/1979 - 07/1983	1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-12490	RS110	09/1979 - 08/1981	1
82111 - WIRE, ENGINE ROOM MAIN
82020-30650	RS110..STD,TAX	09/1979 - 02/1980	1
82020-30660	RS110..BTP,DLX	09/1979 - 02/1980	1
82020-30651	RS110..STD,TAX	02/1980 - 08/1981	1
82020-30661	RS110..BTP,DLX	02/1980 - 08/1981	1
82111-30260	RS110..BTP,DLX	08/1981 - 07/1983	1
82111-30270	RS110..STD,TAX	08/1981 - 07/1983	1
82131 - WIRE, COWL
82220-3A170	RS110..TAX	09/1979 - 10/1979	1
82220-3A180	RS110..BTP,DLX,STD	09/1979 - 02/1980	1
82220-3A171	RS110..TAX	10/1979 - 02/1980	1
82220-3A181	RS110..BTP,DLX,STD	02/1980 - 10/1980	1
82220-3A172	RS110..TAX	02/1980 - 10/1980	1
82220-3A173	RS110..TAX	10/1980 - 08/1981	1
82220-3A182	RS110..BTP,DLX,STD	10/1980 - 08/1981	1
82131-30350	RS110..BTP,DLX	08/1981 - 07/1983	1
82131-30360	RS110..TAX	08/1981 - 07/1983	1
82141 - WIRE, INSTRUMENT PANEL
82201-30310	LS110,RS110..TAX	09/1979 - 08/1981	1
82201-30320	LS11#,RS110..MTM..(BTP,CTE,DLX,SDX,STD)	09/1979 - 08/1981	1
82141-30040	GS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD)	08/1981 - 07/1983	1
82141-30030	LS110,RS110..TAX	08/1981 - 07/1983	1
82210C - FUSIBLE LINK
90982-08112	GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK	09/1979 - 07/1983	1
90982-08110	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	GS11#,MS11#,RS110 L=110,1.25,BLACK	08/1981 - 07/1983	1
90982-08127	GS11#,LS11#,MS11#,RS110 L=110,0.85,RED	09/1979 - 07/1983	1
90982-08130	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	LS11#,MS11#,RS110 L=110,1.25,BLACK	09/1979 - 08/1981	1
82210C - FUSIBLE LINK
90982-08112	GS11#,LS11#,MS11#,RS110 L=110,0.3,PINK	09/1979 - 07/1983	1
90982-08110	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	GS11#,MS11#,RS110 L=110,1.25,BLACK	08/1981 - 07/1983	1
90982-08127	GS11#,LS11#,MS11#,RS110 L=110,0.85,RED	09/1979 - 07/1983	1
90982-08130	GS11#,LS11#,MS11#,RS110 L=110,0.5,GREEN	09/1979 - 07/1983	1
90982-08109	LS11#,MS11#,RS110 L=110,1.25,BLACK	09/1979 - 08/1981	1
82210D - FUSIBLE LINK
90982-08182	GS11#,LS11#,MS11#,RS110 0.5G,0.5G & 2L	10/1980 - 07/1983	1
82210D - FUSIBLE LINK
90982-08182	GS11#,LS11#,MS11#,RS110 0.5G,0.5G & 2L	10/1980 - 07/1983	1
82210G - WIRE, SHORT
82213-30020	RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD W/*IT	09/1979 - 07/1983	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30250	RS110..4H	09/1979 - 10/1980	1
82310-30310	RS110..3H,4H	10/1980 - 07/1983	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30250	RS110..4H	09/1979 - 10/1980	1
82310-30310	RS110..3H,4H	10/1980 - 07/1983	1
82375A - WIRE, WIPER MOTOR
82375-24010	GS110,LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE COLD SPEC	08/1981 - 04/1982	1
82823 - CAP, TERMINAL, NO.1
82823-30010	GS110,MS110,112,RS110	09/1979 - 07/1983	1
Common parts
90179-06184
91651-40814
94120-40600
94541-00600
Linked diagrams
8401
8601

ILLUST NO. 7 OF 8(8108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

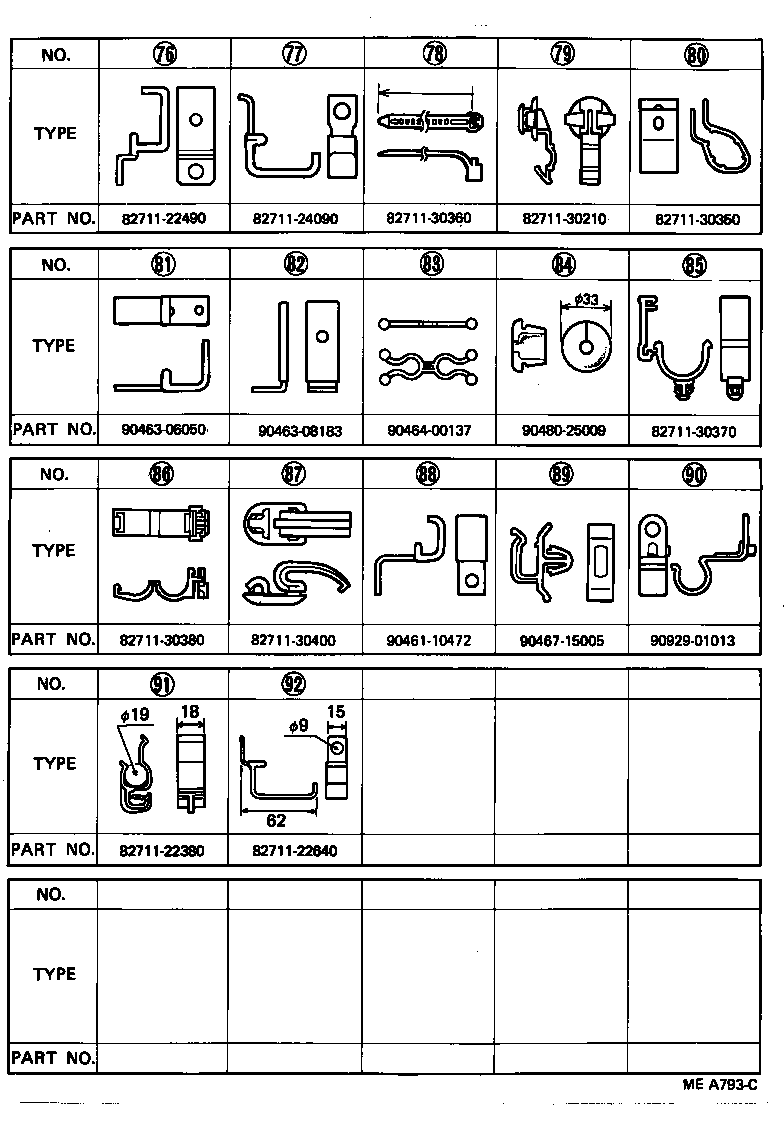

Common parts
82711-22380
82711-22490
82711-22640
82711-24090
82711-30210
82711-30350
82711-30360
82711-30370
82711-30380
82711-30400
90461-10472
90463-06050
90463-08183
90464-00137
90467-15005
90480-25009
90929-01013

ILLUST NO. 3 OF 8(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90982-08109
90982-08110
90982-08112
90982-08123
90982-08127
90982-08128
90982-08129
90982-08130

RS110-SEBTP (1979)

ILLUST NO. 1 OF 8(7909-8108)

ILLUST NO. 2 OF 8(7909- )HT,SED

ILLUST NO. 4 OF 8(7909- )

ILLUST NO. 5 OF 8(7909- )

ILLUST NO. 8 OF 8(7909- )

ILLUST NO. 6 OF 8(7909- )

ILLUST NO. 1 OF 8(8108- )

ILLUST NO. 7 OF 8(8108- )

ILLUST NO. 3 OF 8(7909- )

Part Price Details
