RS110-SEBTP (1979)

Toyota Crown

Production Aug 1979 - Jul 1983
Engine 5RU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

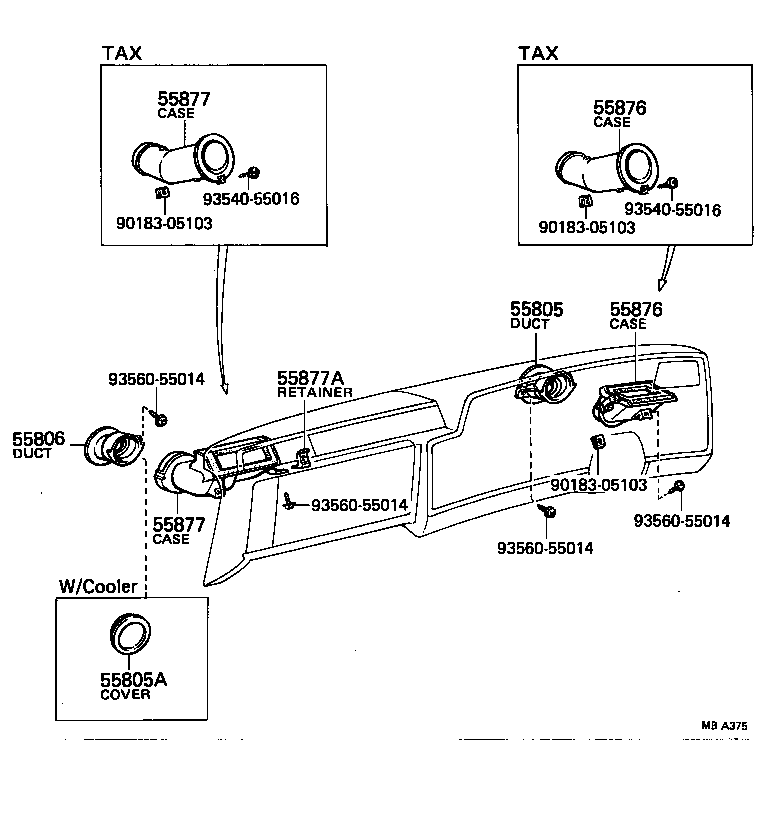

Click highlighted areas on diagram

diagram 55805 55805A 55806 55876 55876 55877 55877 55877A 9018305103 9018305103 9018305103 9354055016 9354055016 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55841-30040

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
55805A - COVER, SIDE VENTILATOR
55877-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

 2
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55842-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
55876 - CASE, SIDE VENTILATOR, RH
55830-30060

LS110,RS110..TAX

 1
55830-30040

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
55876 - CASE, SIDE VENTILATOR, RH
55830-30060

LS110,RS110..TAX

 1
55830-30040

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
55877 - CASE, SIDE VENTILATOR, LH
55830-30060

LS110,RS110..TAX

 1
55840-30070

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
55877 - CASE, SIDE VENTILATOR, LH
55830-30060

LS110,RS110..TAX

 1
55840-30070

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
55877A - RETAINER, AIR DUCT
55854-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

 1
Common parts
90183-05103
93540-55016
93560-55014
