RS110-SEBTP (1979)
Toyota Crown

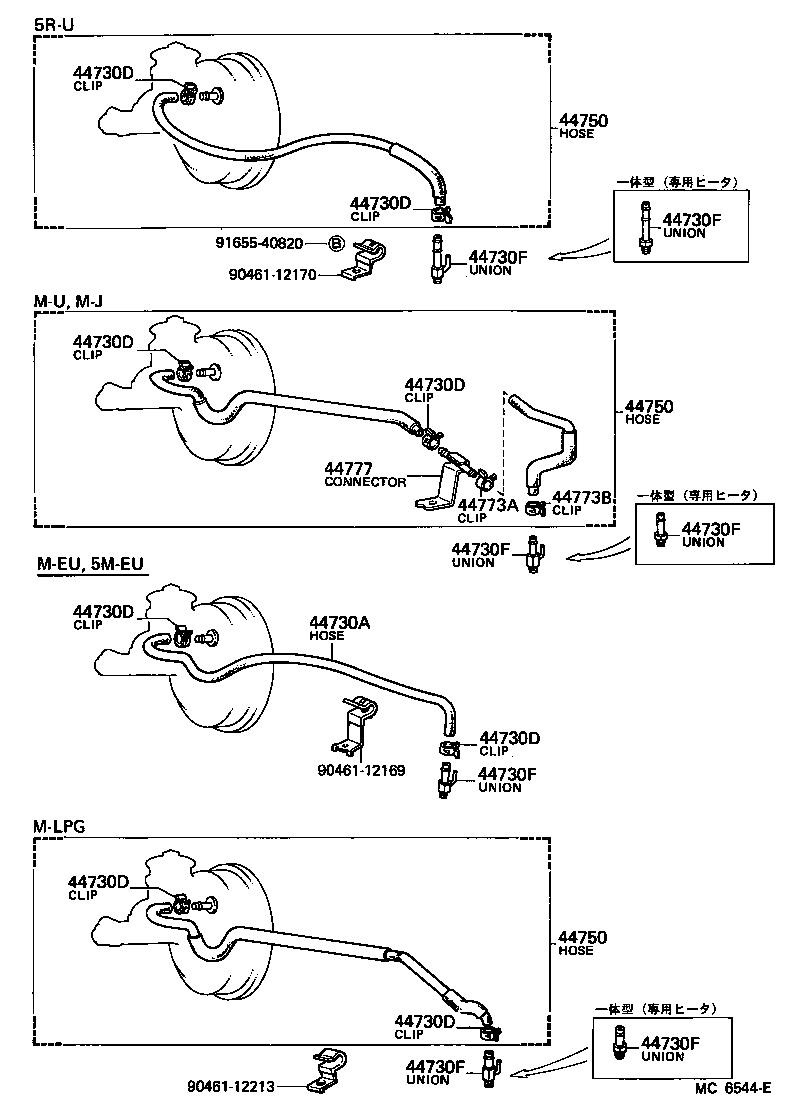

ILLUST NO. 2 OF 2(7909- )MS11#,RS110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RS110..BTP,STD,TAX *IT |
1 | ||
| 90404-51007 |
RS110 *IT |
1 | ||
| 90404-51015 |
RS110 |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30120 |
RS110 |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30120 |
RS110 |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30120 |
RS110 |
1 | ||
| Common parts | ||||
| 90461-12169 | ||||
| 90461-12170 | ||||
| 90461-12213 | ||||
| 91655-40820 | ||||

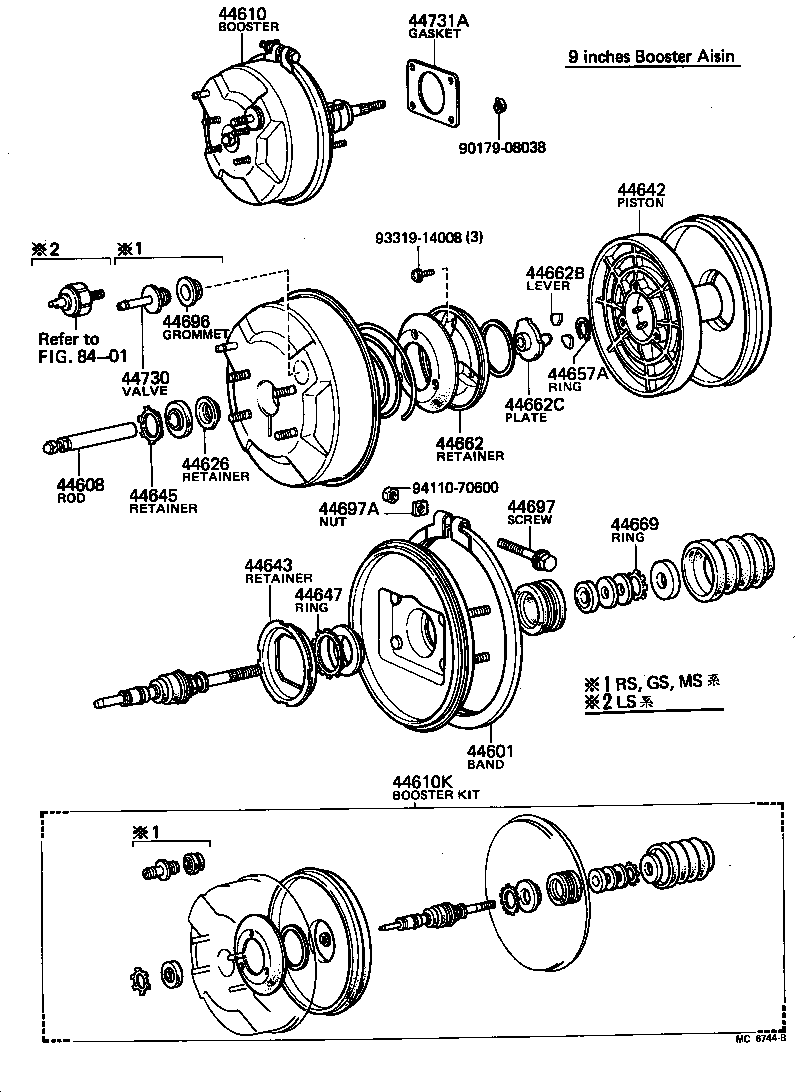

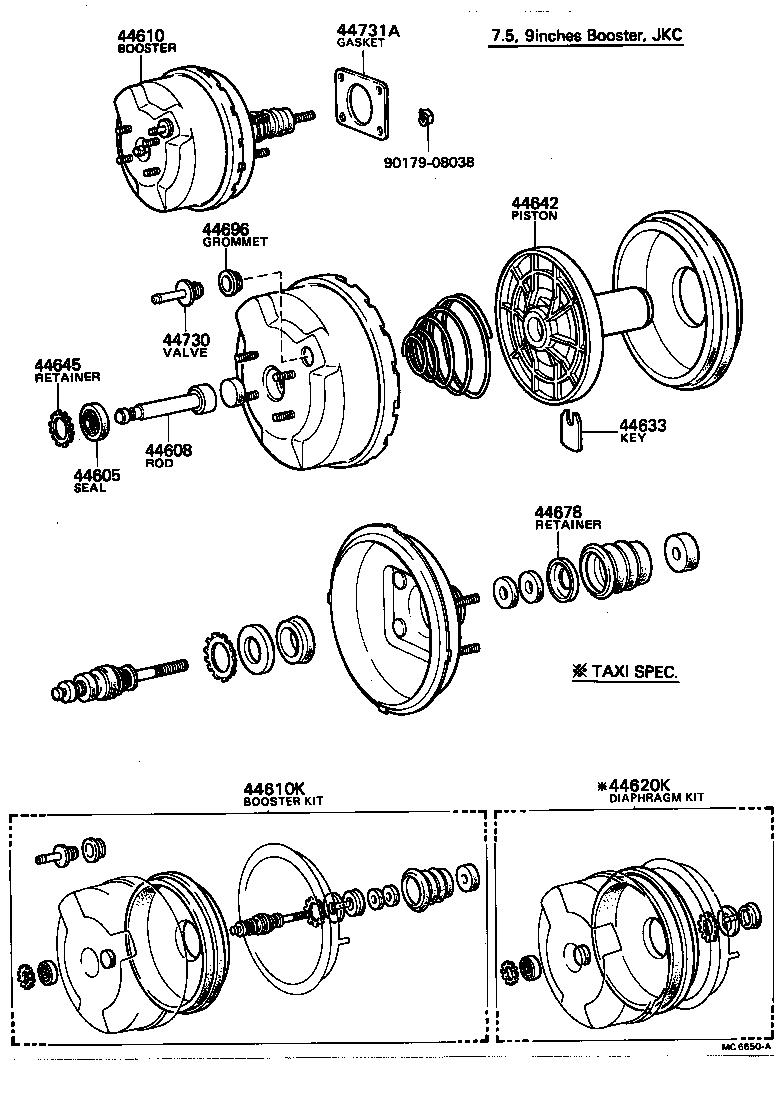

ILLUST NO. 1 OF 2(7909- )GS110,MS110,RS110..SAL,STD,TAX..CBR,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
GS110,MS110,RS110..SAL,STD,TAX JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
MS110,RS110..STD,TAX JKC |
1 | ||
| 44606-35100 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30300 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44610-30360 |
MS110,RS110..STD,TAX |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30240 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 04443-30300 |
MS110,RS110..STD,TAX |
1 | ||
| 44620K - DIAPHRAGM KIT, BRAKE BOOSTER | ||||
| 04441-30100 |
MS110,RS110 JKC,TAXI SPEC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
GS110,MS110,RS110..SAL,STD,TAX JKC |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30030 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44642-30030 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44642-30360 |
MS110,RS110..STD,TAX |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GS110,MS110,RS110..SAL,STD,TAX JKC |
1 | ||
| 44628-60010 |
GS11#,LS111,117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
GS110,MS110,112,RS110..ROY,SAL,STD,TAX JKC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 90480-24439 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730-30010 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(7909- )GS11#,LS111,117,MS117 ; (7909- )LS110,MS110,RS110..BTP,CTE,DLX,SAL,SD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44605-30030 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
MS110,RS110..STD,TAX JKC |
1 | ||
| 44606-35100 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30300 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44610-30360 |
MS110,RS110..STD,TAX |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30240 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 04443-30300 |
MS110,RS110..STD,TAX |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
GS11#,LS11#,MS112,117;MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30030 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44642-30030 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44642-30360 |
MS110,RS110..STD,TAX |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GS110,MS110,RS110..SAL,STD,TAX JKC |
1 | ||
| 44628-60010 |
GS11#,LS111,117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-20460 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44662-20460 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-30300 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44607-30300 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 90480-24439 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44681-30170 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
LS117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44686-30030 |
GS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730-30010 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
