RS110-SEBDP (1979)
Toyota Crown
(7909-8108)SED,WG..BTP,DLX,ROY,SAL,SDX

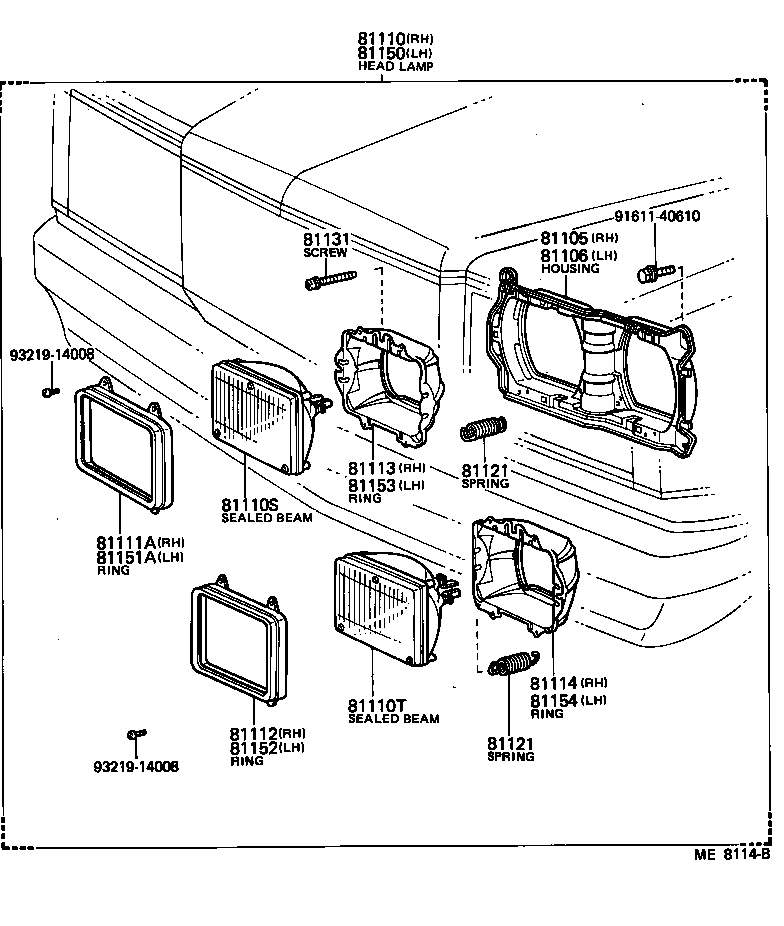

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-30430 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81135-30451 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-30540 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81175-30561 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-39556 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81110-39535 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-05002 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) 12V 50W,*WB,12V 50W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-05004 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) 12V 40/60W,*WB,12V 40/60W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20360 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20360 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-30430 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-30430 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20360 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-39535 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81150-39556 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20360 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-20360 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-30540 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-30540 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 93219-14008 | ||||
(8108- )SED,WG..BTP,DLX,ROY,SAL,SDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-30430 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81135-30451 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-30540 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81175-30561 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-39556 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81110-39535 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
GS110,LS110,MS110,RS110..BTP,DLX 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
GS110,LS110,MS110,RS110..BTP,DLX 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81112-30441 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81113A - GRILLE, HEADLAMP SIDE, RH | ||||
| 81113-30441 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 81147-30490 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
2 | ||
| 81138 - SPRING, HEADLAMP | ||||
| 81138-20550 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
16 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-30490 |
GS110,LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
2 | ||
| 81139-30490 |
GS110,LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 81139-30481 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
2 | ||
| 81146 - LENS, HEADLAMP, RH | ||||
| 81146-30431 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-39535 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| 81150-39556 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81152-30551 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81153A - GRILLE, HEADLAMP SIDE, LH | ||||
| 81153-30551 |
GS110,LS110,MS110,RS110..BTP,DLX |
1 | ||
| 81186 - LENS, HEADLAMP, LH | ||||
| 81186-30541 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
1 | ||
| Common parts | ||||
| 81119-30490 | ||||
| 90179-08123 | ||||
| 90183-04016 | ||||
