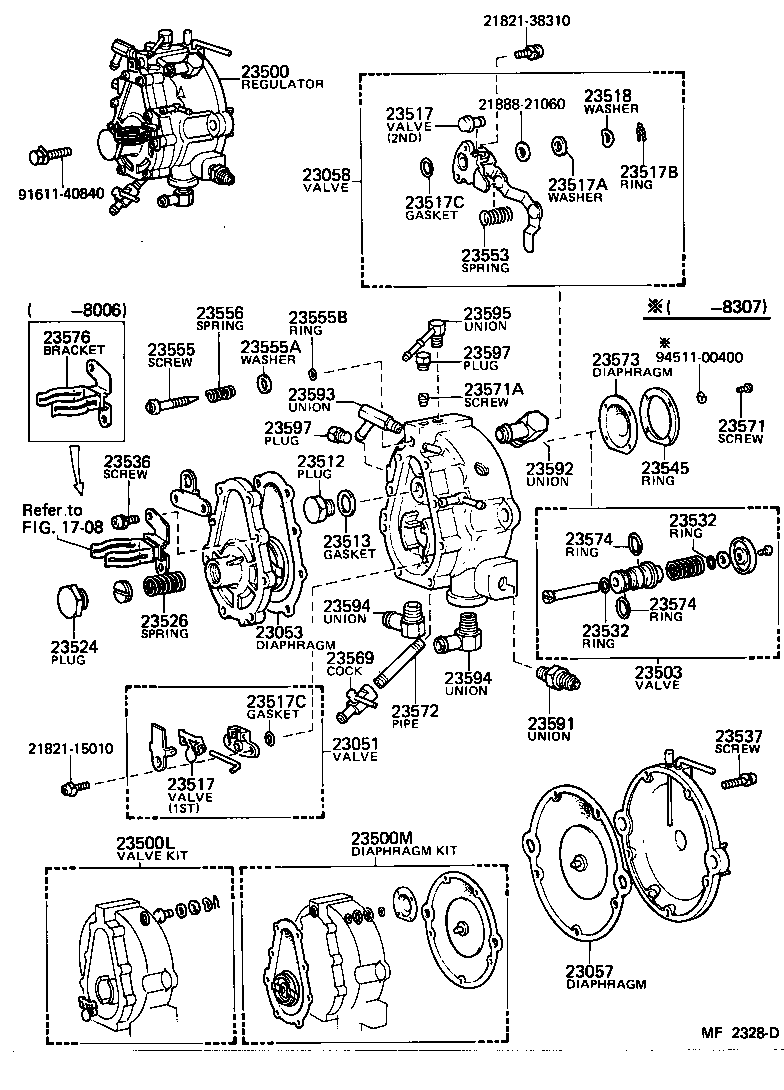

RS110-SEBDP (1979)
Toyota Crown
(7909- )5RU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23051 - VALVE SUB-ASSY, 1ST | ||||
| 23051-44040 |
5RU..RS110 |
1 | ||
| 23053 - DIAPHRAGM SUB-ASSY, 1ST | ||||
| 23527-44040 |
5RU..RS110 |
1 | ||
| 23057 - DIAPHRAGM SUB-ASSY, 2ND REGULATOR | ||||
| 23562-44040 |
5RU..RS110 |
1 | ||
| 23058 - VALVE SUB-ASSY, 2ND | ||||
| 23058-44041 |
5RU..RS110 |
1 | ||
| 23058-44040 |
5RU..RS110 |
1 | ||
| 23500 - REGULATOR ASSY, LPG(CNG) | ||||
| 23500-44050 |
5RU..RS110 |
1 | ||
| 23500-44051 |
5RU..RS110 |
1 | ||
| 23500L - VALVE KIT, LPG REGULATOR | ||||
| 04236-44010 |
5RU..RS110 |
1 | ||
| 23500M - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE | ||||
| 04235-44030 |
5RU..RS110 |
1 | ||
| 23503 - VALVE SUB-ASSY | ||||
| 23503-44040 |
5RU..RS110 |
1 | ||
| 23512 - PLUG, WATER CORE | ||||
| 23512-40010 |
5RU..RS110 |
1 | ||
| 23513 - GASKET, WATER CORE | ||||
| 23513-40010 |
5RU..RS110 |
1 | ||
| 23517 - VALVE, ELASTIC FACE | ||||
| 23517-44040 |
5RU..RS110 1ST |
1 | ||
| 23517-40013 |
5RU..RS110 2ND |
1 | ||
| 23517 - VALVE, ELASTIC FACE | ||||
| 23517-44040 |
5RU..RS110 1ST |
1 | ||
| 23517-40013 |
5RU..RS110 2ND |
1 | ||
| 23517A - WASHER(FOR ELASTIC FACE VALVE SET) | ||||
| 21535-10010 |
5RU..RS110 |
1 | ||
| 23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET) | ||||
| 21792-69210 |
5RU..RS110 |
1 | ||
| 23517C - GASKET(FOR ELASTIC FACE VALVE) | ||||
| 23532-44020 |
5RU..RS110 ID=7.8 |
2 | ||
| 23517C - GASKET(FOR ELASTIC FACE VALVE) | ||||
| 23532-44020 |
5RU..RS110 ID=7.8 |
2 | ||
| 23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET) | ||||
| 23518-40010 |
5RU..RS110 |
1 | ||
| 23524 - PLUG, 1ST REGULATOR COVER | ||||
| 23524-40010 |
5RU..RS110 |
1 | ||
| 23526 - SPRING, 1ST REGULATOR | ||||
| 23526-40010 |
5RU..RS110 |
1 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
5RU..RS110 |
2 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
5RU..RS110 |
2 | ||
| 23536 - SCREW(FOR 1ST REGULATOR COVER SET) | ||||
| 23537-44020 |
5RU..RS110 L=22 |
8 | ||
| 23537 - SCREW(FOR 2ND REGULATOR COVER SET) | ||||
| 21821-31140 |
5RU..RS110 L=20 |
5 | ||
| 23545 - RING, VACUUM LOCK DIAPHRAGM | ||||
| 23545-44020 |
5RU..RS110 |
1 | ||
| 23553 - SPRING, 2ND REGULATOR | ||||
| 23553-44040 |
5RU..RS110 |
1 | ||
| 23555 - SCREW, IDLE ADJUST | ||||
| 23555-44041 |
5RU..RS110 |
1 | ||
| 23555A - WASHER, IDLE ADJUST SCREW | ||||
| 21885-26040 |
5RU..RS110 |
1 | ||
| 23555B - RING, O(FOR IDLE ADJUST SCREW) | ||||
| 23532-40010 |
5RU..RS110 |
2 | ||
| 23556 - SPRING, IDLE ADJUST SCREW | ||||
| 21723-21030 |
5RU..RS110 |
1 | ||
| 23569 - COCK, DRAIN | ||||
| 23569-40011 |
5RU..RS110 |
1 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 93219-14012 |
5RU..RS110 |
4 | ||
| 21821-24030 |
5RU..RS110 |
4 | ||
| 23571A - SCREW | ||||
| 26226-41030 |
5RU..RS110 |
1 | ||
| 23572 - PIPE, DRAIN | ||||
| 23572-40011 |
5RU..RS110 |
1 | ||
| 23573 - DIAPHRAGM | ||||
| 23573-44040 |
5RU..RS110 |
1 | ||
| 23574 - RING, O, NO.1(FOR BULB) | ||||
| 23574-44021 |
5RU..RS110 |
2 | ||
| 23574 - RING, O, NO.1(FOR BULB) | ||||
| 23574-44021 |
5RU..RS110 |
2 | ||
| 23576 - BRACKET | ||||
| 23576-44050 |
5RU..RS110 |
1 | ||
| 23591 - UNION, NO.1, FUEL | ||||
| 90404-14064 |
5RU..RS110 |
1 | ||
| 23592 - UNION, NO.2, FUEL HOSE | ||||
| 23592-40012 |
5RU..RS110 |
1 | ||
| 23592-44050 |
5RU..RS110 |
1 | ||
| 23593 - UNION, NO.3 | ||||
| 23593-44050 |
5RU..RS110 |
1 | ||
| 23594 - UNION, NO.4, WATER HOSE | ||||
| 23594-40012 |
5RU..RS110 |
2 | ||
| 23594 - UNION, NO.4, WATER HOSE | ||||
| 23594-40012 |
5RU..RS110 |
2 | ||
| 23595 - UNION, NO.5 | ||||
| 23591-44040 |
5RU..RS110 |
1 | ||
| 23597 - PLUG, LPG REGULATOR BODY | ||||
| 90345-51005 |
5RU..RS110 |
2 | ||
| 23597 - PLUG, LPG REGULATOR BODY | ||||
| 90345-51005 |
5RU..RS110 |
2 | ||
| Common parts | ||||
| 21821-15010 | ||||
| 21821-38310 | ||||
| 21888-21060 | ||||
| 91611-40840 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 1708 | ||||
