RS110-SEBBP (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5RU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )5RU

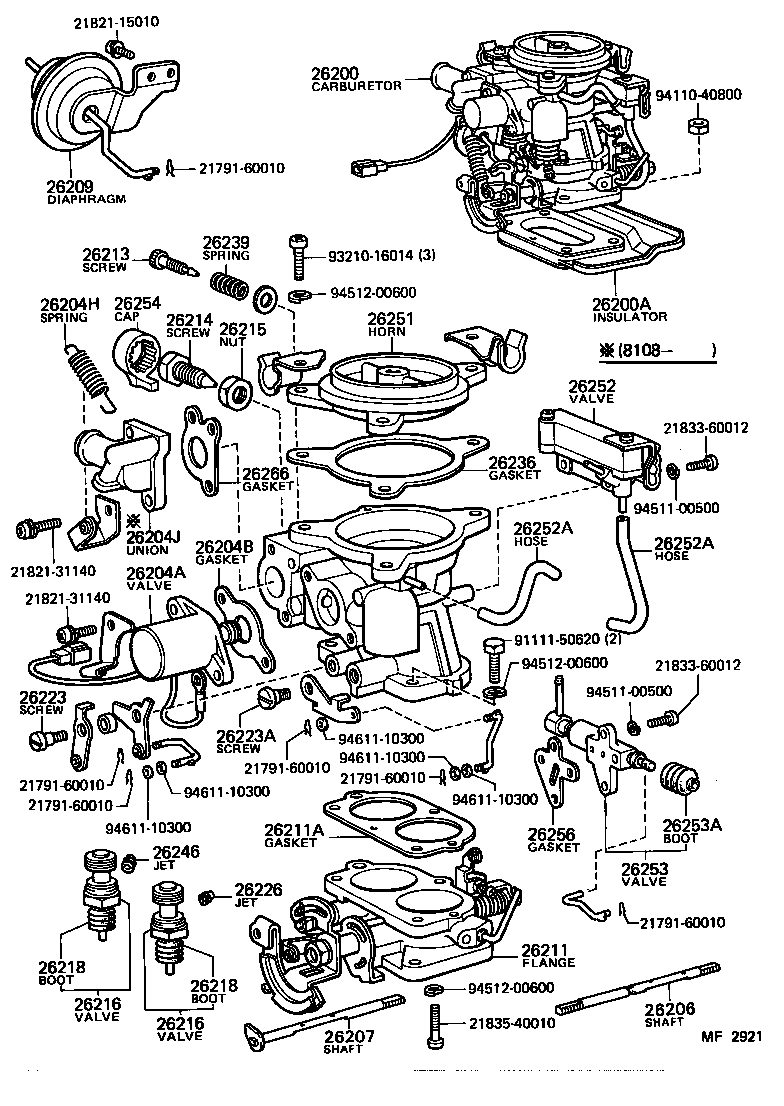

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26200 - CARBURETOR ASSY, LPG | ||||
| 26200-44090 |
5RU..RS110 |
1 | ||
| 26200-44060 |
5RU..RS110 |
1 | ||
| 26200A - INSULATOR, LPG CARBURETOR HEAT | ||||
| 21912-44030 |
5RU..RS110 |
1 | ||
| 26204A - VALVE, THROTTLE SOLENOID(FOR LPG) | ||||
| 26208-41030 |
5RU..RS110 |
1 | ||
| 26204B - GASKET, SOLENOID VALVE(FOR LPG) | ||||
| 26236-44020 |
5RU..RS110 |
1 | ||
| 26204H - SPRING, THROTTLE RETURN(FOR LPG) | ||||
| 26248-44060 |
5RU..RS110 |
1 | ||
| 26204J - UNION, NO.2 FUEL HOSE(FOR LPG) | ||||
| 26249-44090 |
5RU..RS110 |
1 | ||
| 26206 - SHAFT, 1ST THROTTLE(FOR LPG) | ||||
| 26234-44060 |
5RU..RS110 |
1 | ||
| 26207 - SHAFT, 2ND THROTTLE(FOR LPG) | ||||
| 26232-44060 |
5RU..RS110 |
1 | ||
| 26209 - DIAPHRAGM SUB-ASSY(FOR LPG) | ||||
| 26209-44060 |
5RU..RS110 |
1 | ||
| 26211 - FLANGE, CARBURETOR | ||||
| 26201-44061 |
5RU..RS110 |
1 | ||
| 26211A - GASKET, BODY FLANGE(FOR LPG) | ||||
| 26236-44060 |
5RU..RS110 |
1 | ||
| 26213 - SCREW, ADJUST | ||||
| 26214-44060 |
5RU..RS110 |
1 | ||
| 26214 - SCREW, POWER ADJUST | ||||
| 26214-44010 |
5RU..RS110 |
1 | ||
| 26215 - NUT, POWER ADJUST | ||||
| 26215-41010 |
5RU..RS110 |
1 | ||
| 26216 - VALVE, POWER | ||||
| 26216-44060 |
5RU..RS110 |
2 | ||
| 26216 - VALVE, POWER | ||||
| 26216-44060 |
5RU..RS110 |
2 | ||
| 26218 - BOOT(FOR POWER VALVE) | ||||
| 26218-44061 |
5RU..RS110 |
2 | ||
| 26218 - BOOT(FOR POWER VALVE) | ||||
| 26218-44061 |
5RU..RS110 |
2 | ||
| 26223 - SCREW, SET(FOR POWER VALVE CAM) | ||||
| 21824-24060 |
5RU..RS110 |
1 | ||
| 26223A - SCREW, SET(FOR POWER VALVE LEVER) | ||||
| 26223-31012 |
5RU..RS110 |
1 | ||
| 26226 - JET, POWER | ||||
| 26226-31160 |
5RU..RS110 |
1 | ||
| 26226-44040 |
5RU..RS110 ID=2.8 |
1 | ||
| 26236 - GASKET, AIR HORN | ||||
| 26236-44030 |
5RU..RS110 |
1 | ||
| 26239 - SPRING | ||||
| 26239-44060 |
5RU..RS110 |
1 | ||
| 26246 - JET | ||||
| 26246-44060 |
5RU..RS110 ID=2.4 |
1 | ||
| 26246-44090 |
5RU..RS110 |
1 | ||
| 26251 - HORN, AIR | ||||
| 26251-44040 |
5RU..RS110 |
1 | ||
| 26252 - VALVE, THERMOSTATIC | ||||
| 26252-44060 |
5RU..RS110 |
1 | ||
| 26252A - HOSE, CONNECTING | ||||
| 26237-44050 |
5RU..RS110 |
2 | ||
| 26252A - HOSE, CONNECTING | ||||
| 26237-44050 |
5RU..RS110 |
2 | ||
| 26253 - VALVE, CHANGE(FOR SLOW) | ||||
| 26253-44090 |
5RU..RS110 |
1 | ||
| 26253-44060 |
5RU..RS110 |
1 | ||
| 26253A - BOOT(FOR CHANGE VALVE) | ||||
| 26218-44060 |
5RU..RS110 |
1 | ||
| 26218-44061 |
5RU..RS110 |
2 | ||
| 26254 - CAP, POWER SCREW LIMIT | ||||
| 26254-44060 |
5RU..RS110 |
1 | ||
| 26256 - GASKET, CHANGE VALVE | ||||
| 26256-44060 |
5RU..RS110 |
1 | ||
| 26266 - GASKET, FUEL INLET UNION | ||||
| 26266-44060 |
5RU..RS110 |
1 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-15010 | ||||
| 21821-31140 | ||||
| 21833-60012 | ||||
| 21835-40010 | ||||
| 91111-50620 | ||||
| 93210-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
