MS137-ATSUF (1987)
Toyota Crown

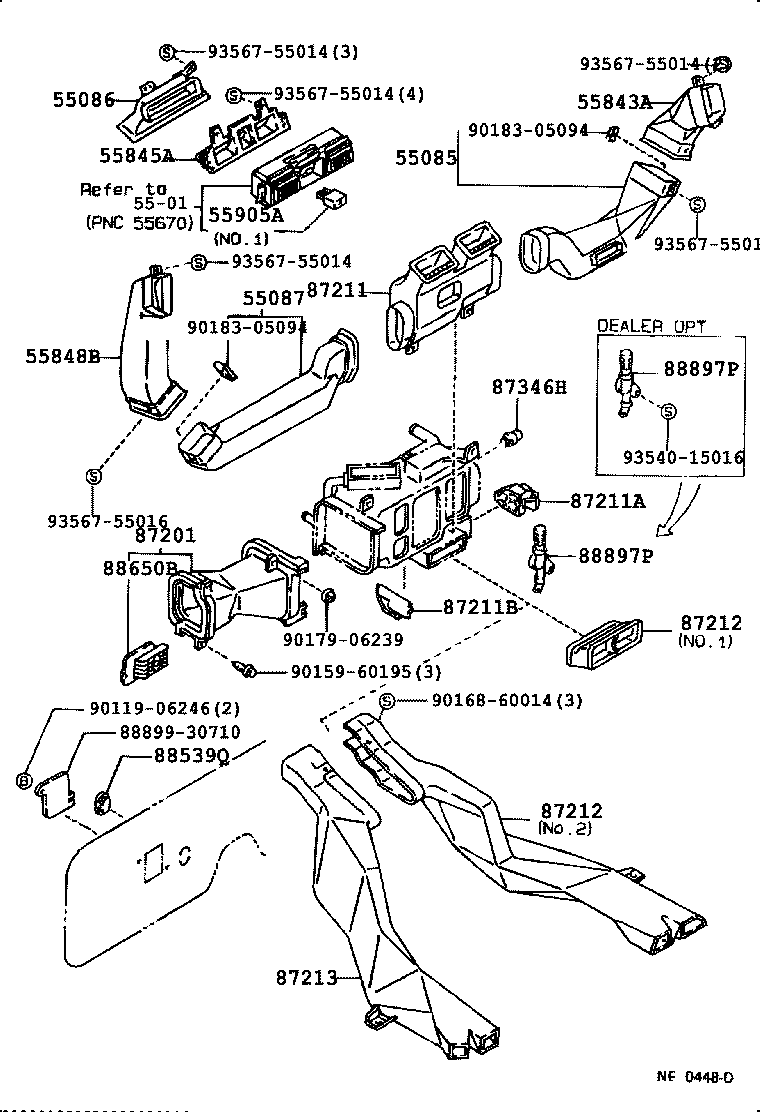

ILLUST NO. 2 OF 4(8709- )HT..4HC
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-30071 |
GS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 55085-30070 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(4FC,4HC,5F)..(ROY,SAL,SALEX,SDX) |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-30070 |
GS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F) |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30110 |
GS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30120 |
GS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-30040 |
GS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30150 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SALEX) NO.1 |
1 | ||
| 55905-30150 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX) NO.1 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-30450 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) |
1 | ||
| 87201-30451 |
GS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-30170 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30340 |
GS13#,LS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 87212-30341 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30340 |
GS13#,LS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 87212-30341 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30260 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-30670 |
GS130,131..HT..(4FC,5F)..HTWC;LS130,MS135,137..ROY,ROYG,SALEX;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,MS130..(ROY,SALEX,SDX,SSL)..(EFI,LPG,SPC,TWC) |
1 | ||
| 88897-30670 |
GS130..WG..SDX;GS130..SED..ATM..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-30670 |
GS130,131..HT..(4FC,5F)..HTWC;LS130,MS135,137..ROY,ROYG,SALEX;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,MS130..(ROY,SALEX,SDX,SSL)..(EFI,LPG,SPC,TWC) |
1 | ||
| 88897-30670 |
GS130..WG..SDX;GS130..SED..ATM..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88899-30710 | ||||
| 90119-06246 | ||||
| 90159-60195 | ||||
| 90168-60014 | ||||
| 90179-06239 | ||||
| 90183-05094 | ||||
| 93540-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

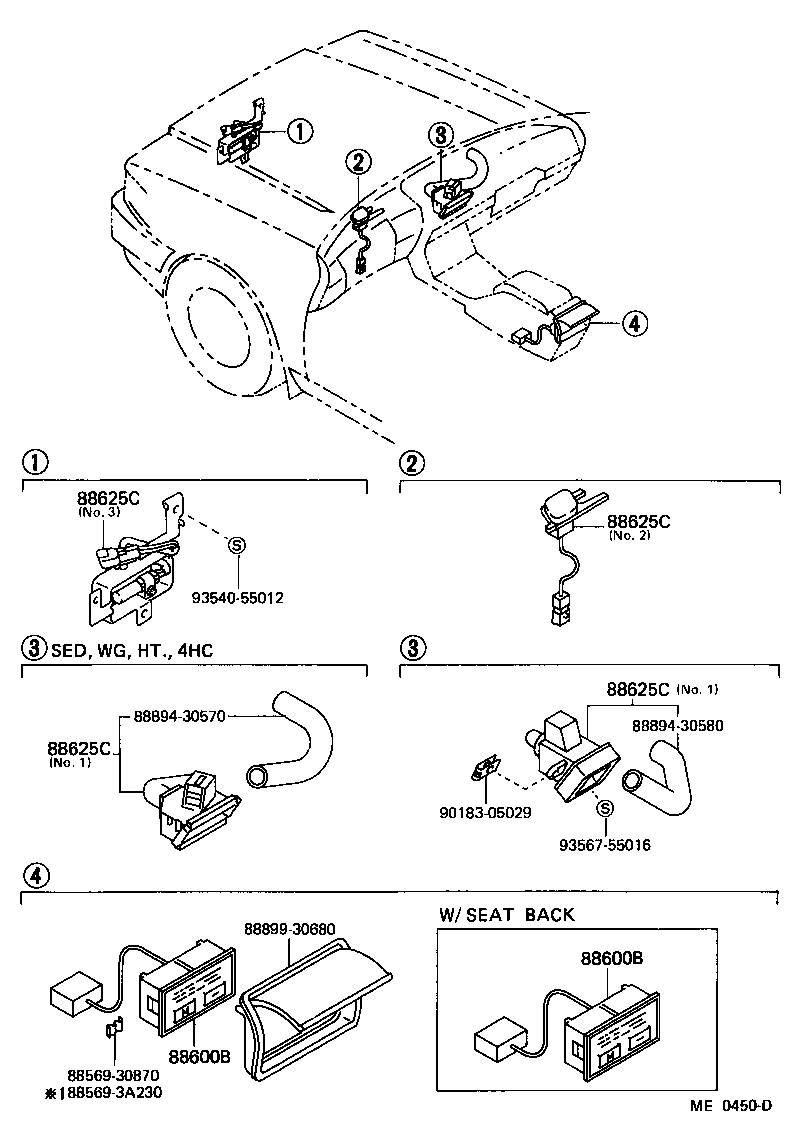

ILLUST NO. 3 OF 4(8709- )
SENSOR & SWITCH(MEAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88600B - PANEL ASSY, CONTROL | ||||
| 88600-30740 |
MS137 |
1 | ||
| 88600-30800 |
MS137,UZS131..4HC |
1 | ||
| 88600B - PANEL ASSY, CONTROL | ||||
| 88600-30740 |
MS137 |
1 | ||
| 88600-30800 |
MS137,UZS131..4HC |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| Common parts | ||||
| 88569-30870 | ||||
| 88569-3A230 | ||||
| 88894-30570 | ||||
| 88894-30580 | ||||
| 88899-30680 | ||||
| 90183-05029 | ||||
| 93540-55012 | ||||
| 93567-55016 | ||||

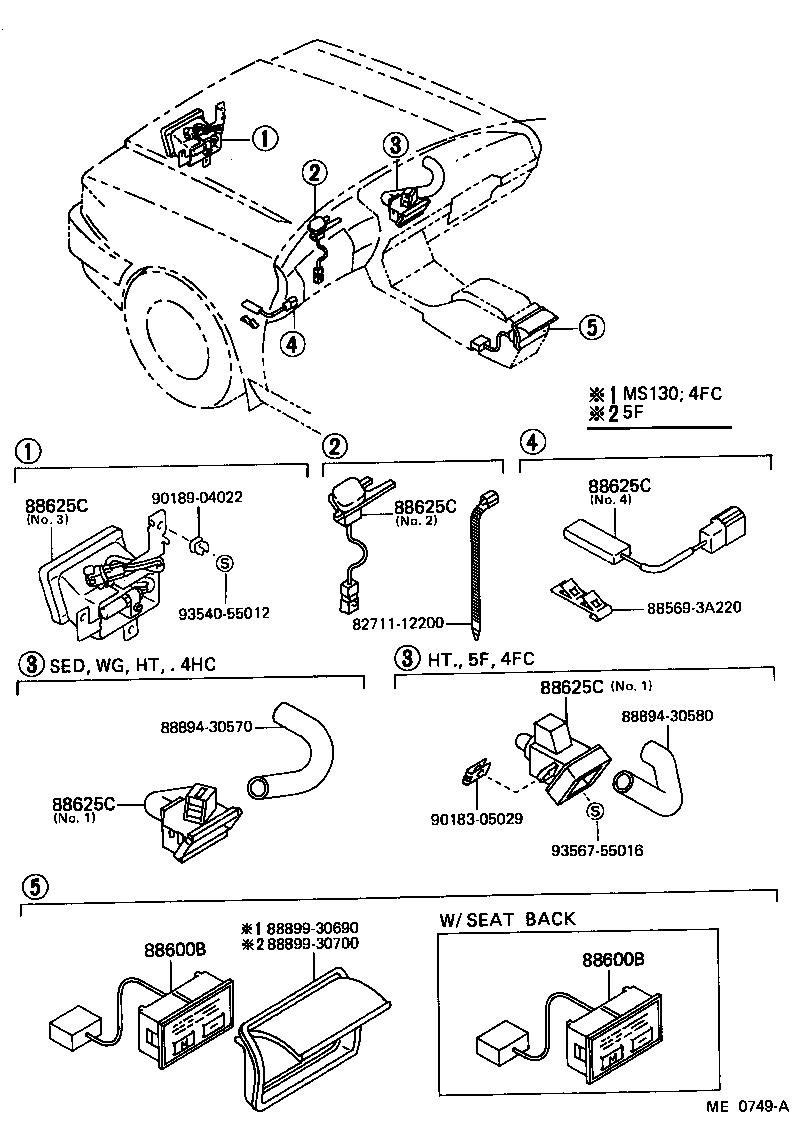

ILLUST NO. 3 OF 4(8709- )
SENSOR & SWITCH(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88600B - PANEL ASSY, CONTROL | ||||
| 88600-30740 |
MS137 |
1 | ||
| 88600-30800 |
MS137,UZS131..4HC |
1 | ||
| 88600B - PANEL ASSY, CONTROL | ||||
| 88600-30740 |
MS137 |
1 | ||
| 88600-30800 |
MS137,UZS131..4HC |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30740 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.3 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..ROY,ROYG NO.3 |
1 | ||
| 88625-30770 |
MS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY NO.1 |
1 | ||
| 88625-30720 |
MS130..SDX;LS130..SALEX;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 88625-30741 |
GS130,131,MS135,137..(ROY,ROYG,SSL)..(HTWC,SPC,TWC) NO.3 |
1 | ||
| 88625-30810 |
GS131..WIB;JZS13#,MS13#,UZS131 NO.3 |
1 | ||
| 88625-30720 |
GS130..SDX..TWLPG;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-3A220 | ||||
| 88894-30570 | ||||
| 88894-30580 | ||||
| 88899-30690 | ||||
| 88899-30700 | ||||
| 90183-05029 | ||||
| 90189-04022 | ||||
| 93540-55012 | ||||
| 93567-55016 | ||||

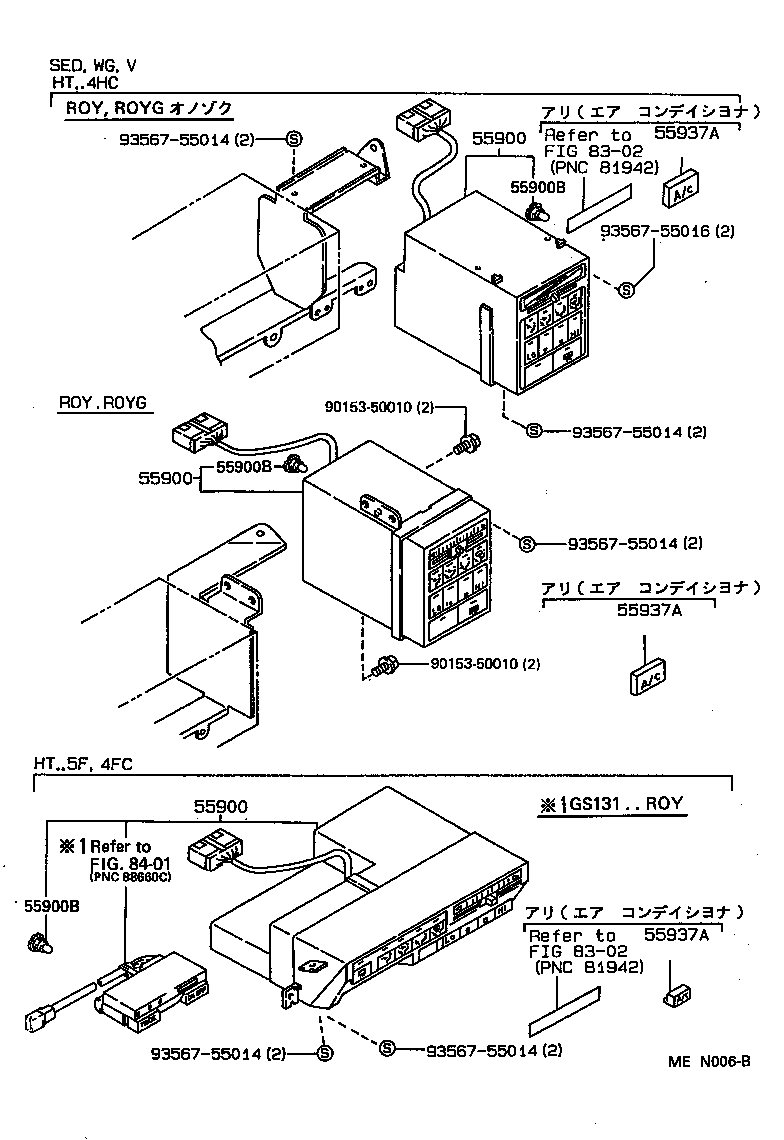

ILLUST NO. 1 OF 4(8709- )GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30320 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30321 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30490 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900-30491 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30320 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30321 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30490 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900-30491 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30320 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30321 |
MS137..4HC;MS137..4FC..NOB |
1 | ||
| 55900-30490 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900-30491 |
MS137,UZS131..4HC;MS137,UZS131..4FC..NOB |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60500 |
MS137..4HC..WIB 14V 0.84W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60540 |
MS137..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60580 |
MS137,UZS131..4HC..WIB 14V 0.7W,ﾉﾌﾞｼﾖｳﾒｲ |
5 | ||
| 84999-60590 |
MS137,UZS131..4HC..WIB 14V 1.4W,ｵﾝﾄﾞﾋﾖｳｼﾞﾌﾞｼﾖｳﾒｲ |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

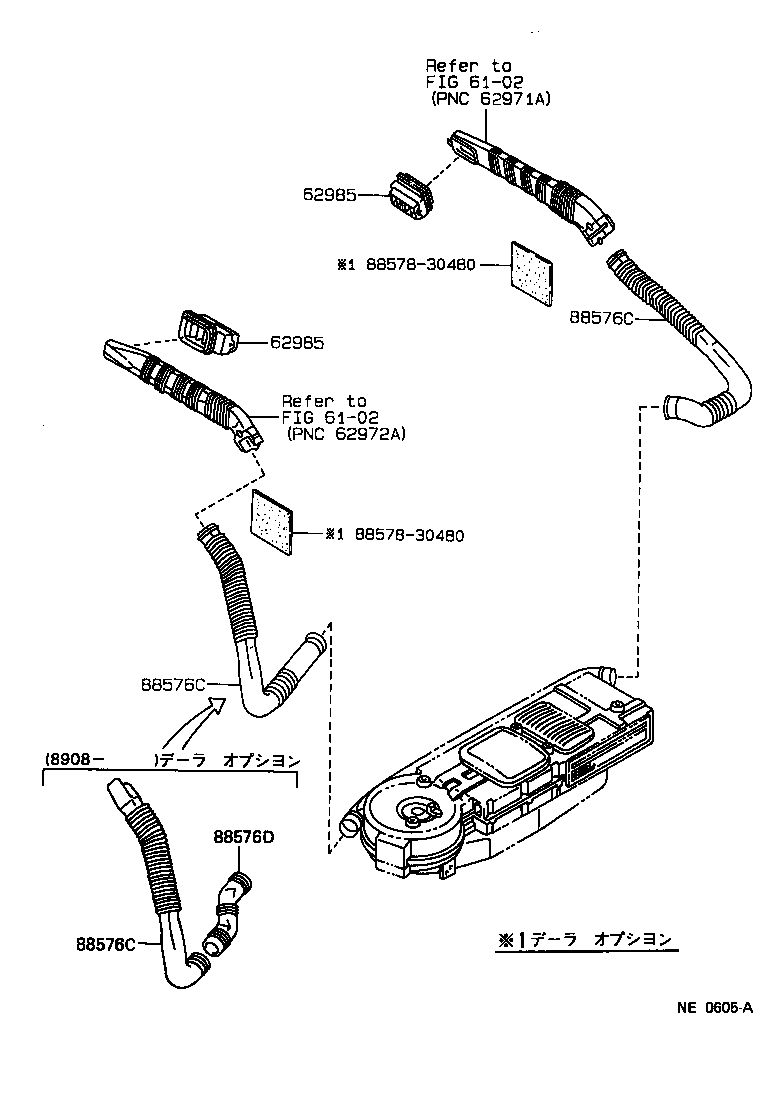

ILLUST NO. 4 OF 4(8709- )
REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-3005005 |
GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BEIGE,TRIM3#,4#,左側 |
1 | ||
| 62985-3005004 |
JZS131..ROY;LS131..HT..SALEX;GS130..4FC..TWLPG;GS130,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL);GS131,LS131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC,TD,TWC) BLUE,TRIM8#,左側 |
1 | ||
| 62985-3004005 |
LS131..TD;JZS131..ROY;LS131..HT..SALEX;GS130,131,LS130,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BEIGE,TRIM3#,4#,右側 |
1 | ||
| 62985-3005005 |
GS131..ROY..SPC;GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC) BEIGE,TRIM3#,4#,左側 |
1 | ||
| 62985-3004004 |
JZS131..ROY;LS131..HT..SALEX;GS130..4FC..TWLPG;GS130,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL);GS131,LS131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC,TD,TWC) BLUE,TRIM8#,右側 |
1 | ||
| 62985-3005005 |
JZS131..ROY;LS131..HT..SALEX;GS131,LS131,MS13#,UZS131..HTWC,SPC,TD,TWC BEIGE,TRIM3#,4#,左側 |
1 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-3005005 |
GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BEIGE,TRIM3#,4#,左側 |
1 | ||
| 62985-3005004 |
JZS131..ROY;LS131..HT..SALEX;GS130..4FC..TWLPG;GS130,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL);GS131,LS131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC,TD,TWC) BLUE,TRIM8#,左側 |
1 | ||
| 62985-3004005 |
LS131..TD;JZS131..ROY;LS131..HT..SALEX;GS130,131,LS130,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) BEIGE,TRIM3#,4#,右側 |
1 | ||
| 62985-3005005 |
GS131..ROY..SPC;GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC) BEIGE,TRIM3#,4#,左側 |
1 | ||
| 62985-3004004 |
JZS131..ROY;LS131..HT..SALEX;GS130..4FC..TWLPG;GS130,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL);GS131,LS131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC,TD,TWC) BLUE,TRIM8#,右側 |
1 | ||
| 62985-3005005 |
JZS131..ROY;LS131..HT..SALEX;GS131,LS131,MS13#,UZS131..HTWC,SPC,TD,TWC BEIGE,TRIM3#,4#,左側 |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30810 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 右側 |
1 | ||
| 88576-30820 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 左側 |
1 | ||
| 88576-30820 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 左側 |
1 | ||
| 88576-30810 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 右側 |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30810 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 右側 |
1 | ||
| 88576-30820 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 左側 |
1 | ||
| 88576-30820 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 左側 |
1 | ||
| 88576-30810 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 右側 |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30810 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 右側 |
1 | ||
| 88576-30820 |
GS130..4FC..SPE;GS131,LS130,MS135,137..HT..(EFI,SPC,TDE,TWC) 左側 |
1 | ||
| 88576-30820 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 左側 |
1 | ||
| 88576-30810 |
GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB 右側 |
1 | ||
| Common parts | ||||
| 88578-30480 | ||||
| Linked diagrams | ||||
| 6102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
