Toyota Crown MS137 RADIATOR GRILLE

MS137-ATSUF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 7MGE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

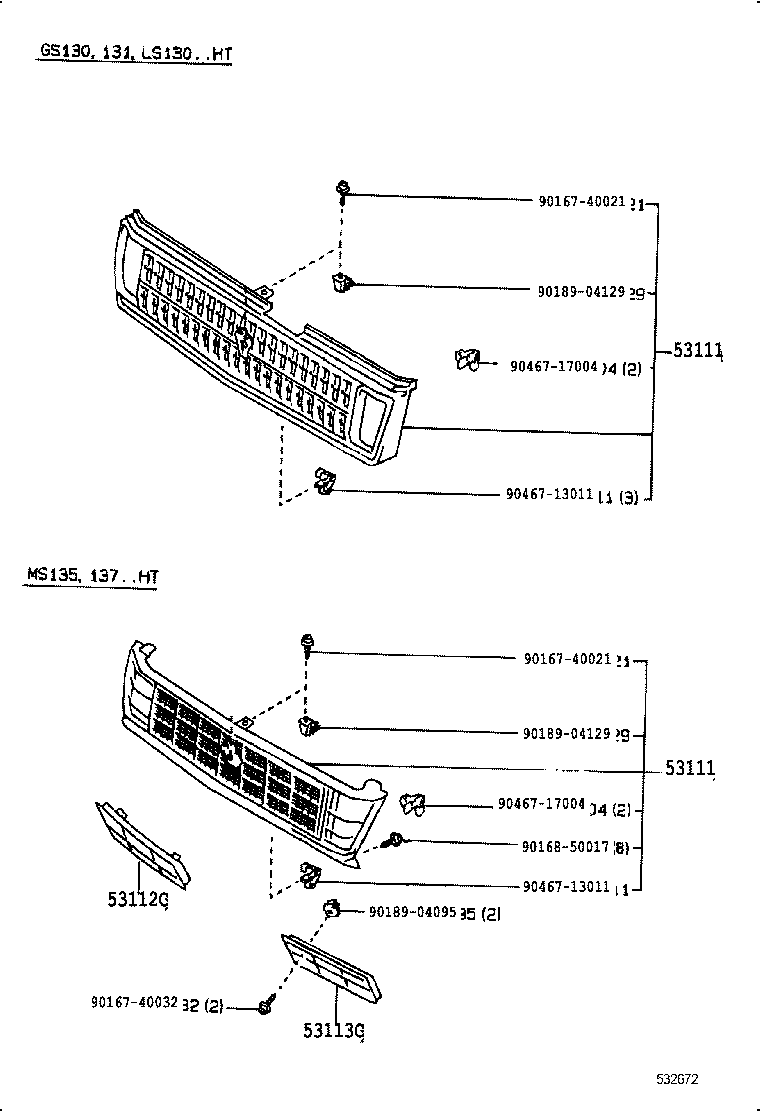

ILLUST NO. 1 OF 2(8709-8908)HT

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-30060	MS135,137..WIB	09/1987 - 08/1989	1
53111-30540	GS131,JZS131,MS13#,UZS131..WIB	08/1989 - 10/1991	1
53111 - GRILLE, RADIATOR
53100-30060	MS135,137..WIB	09/1987 - 08/1989	1
53111-30540	GS131,JZS131,MS13#,UZS131..WIB	08/1989 - 10/1991	1
53112C - GRILLE, RADIATOR, LOWER RH
53112-3018002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53112-3018023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53112-3017008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53112-3017001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53112-3017013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53112-3018001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53112-3017023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53112-3018043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53112-3018008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53112-3017033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53112-3018004	GS131,JZS131,MS13#..WIB DARK BLUE MICA,869	08/1989 - 10/1991	1
53112-3017012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53112-3018053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53112-3017014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53112-3018013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
53113C - GRILLE, RADIATOR, LOWER LH
53113-3015012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53113-3015001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53113-3015014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53113-3015023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53113-3015008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53113-3016001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53113-3016004	GS131,JZS131,MS13#..WIB DARK BLUE M,869	08/1989 - 10/1991	1
53113-3015033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53113-3016023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53113-3015013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53113-3016002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53113-3016043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53113-3016008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53113-3016053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53113-3016013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
Common parts
90167-40021
90167-40032
90168-50017
90189-04095
90189-04129
90467-13011
90467-17004

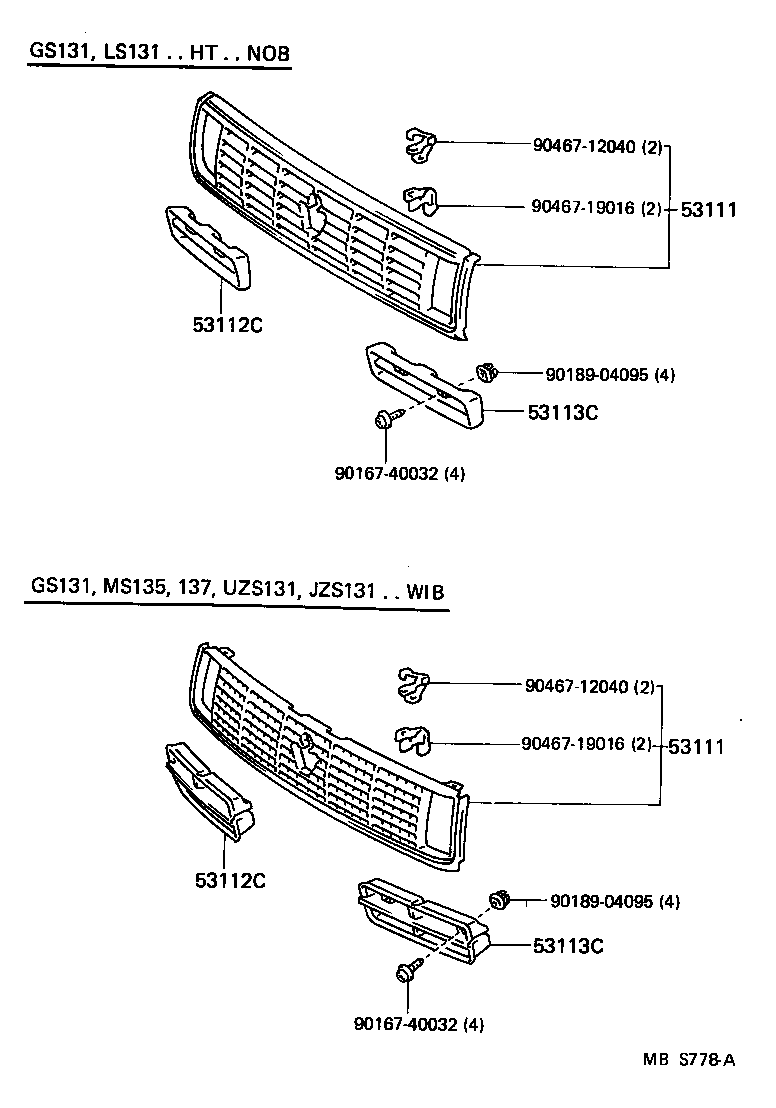

(8908- )HT

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-30060	MS135,137..WIB	09/1987 - 08/1989	1
53111-30540	GS131,JZS131,MS13#,UZS131..WIB	08/1989 - 10/1991	1
53111 - GRILLE, RADIATOR
53100-30060	MS135,137..WIB	09/1987 - 08/1989	1
53111-30540	GS131,JZS131,MS13#,UZS131..WIB	08/1989 - 10/1991	1
53112C - GRILLE, RADIATOR, LOWER RH
53112-3018002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53112-3018023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53112-3017008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53112-3017001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53112-3017013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53112-3018001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53112-3017023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53112-3018043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53112-3018008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53112-3017033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53112-3018004	GS131,JZS131,MS13#..WIB DARK BLUE MICA,869	08/1989 - 10/1991	1
53112-3017012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53112-3018053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53112-3017014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53112-3018013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
53112C - GRILLE, RADIATOR, LOWER RH
53112-3018002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53112-3018023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53112-3017008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53112-3017001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53112-3017013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53112-3018001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53112-3017023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53112-3018043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53112-3018008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53112-3017033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53112-3018004	GS131,JZS131,MS13#..WIB DARK BLUE MICA,869	08/1989 - 10/1991	1
53112-3017012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53112-3018053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53112-3017014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53112-3018013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
53113C - GRILLE, RADIATOR, LOWER LH
53113-3015012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53113-3015001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53113-3015014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53113-3015023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53113-3015008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53113-3016001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53113-3016004	GS131,JZS131,MS13#..WIB DARK BLUE M,869	08/1989 - 10/1991	1
53113-3015033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53113-3016023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53113-3015013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53113-3016002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53113-3016043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53113-3016008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53113-3016053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53113-3016013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
53113C - GRILLE, RADIATOR, LOWER LH
53113-3015012	MS135,137..WIB DARK RED. M,3H3	09/1987 - 08/1989	1
53113-3015001	MS135,137..WIB BLACK,202	09/1987 - 08/1989	1
53113-3015014	MS135,137..WIB DARK BLUE. M,869	09/1987 - 08/1989	1
53113-3015023	MS135,137..WIB GRAY MICA. M,170	09/1987 - 08/1989	1
53113-3015008	MS135,137..WIB SUPER WHITE,040	09/1987 - 08/1989	1
53113-3016001	GS131,JZS131,MS13#..WIB BLACK,202	08/1989 - 10/1991	1
53113-3016004	GS131,JZS131,MS13#..WIB DARK BLUE M,869	08/1989 - 10/1991	1
53113-3015033	MS135,137..WIB SILKY ELEGANT TONING,24G	09/1987 - 08/1989	1
53113-3016023	GS131,JZS131,MS13#..WIB DARK BLUISH GRAY M,26N	08/1989 - 10/1991	1
53113-3015013	MS135,137..WIB GRAY. M,167	09/1987 - 08/1989	1
53113-3016002	GS131,JZS131,MS13#..WIB DARK RED MICA,3H3	08/1989 - 10/1991	1
53113-3016043	GS131,JZS131,MS13#..WIB BLUISH GRAY M,182	08/1989 - 10/1991	1
53113-3016008	GS131,JZS131,MS13#..WIB SUPER WHITE 4,050	08/1989 - 10/1991	1
53113-3016053	GS131,JZS131,MS13#..WIB GRAY MICA M,170	08/1989 - 10/1991	1
53113-3016013	GS131,JZS131,MS13#..WIB WARM SILVER M,24G	08/1989 - 10/1991	1
Common parts
90167-40032
90189-04095
90467-12040
90467-19016

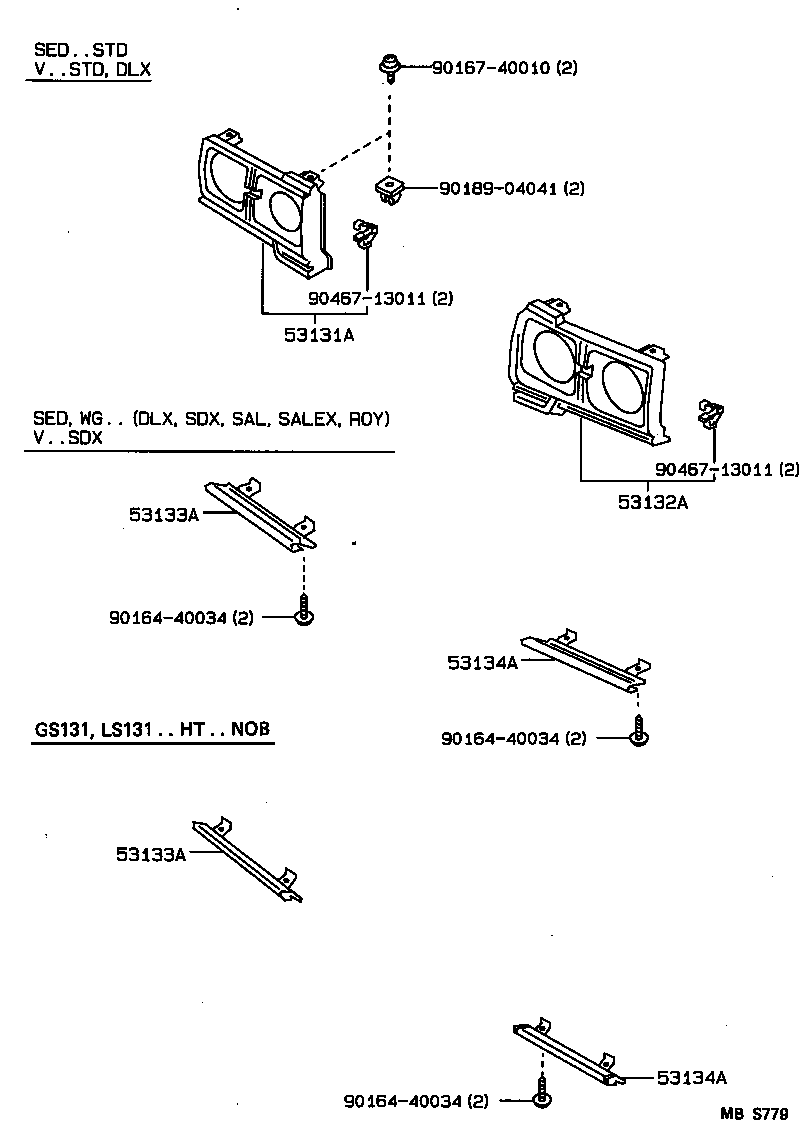

(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90164-40034
90167-40010
90189-04041
90467-13011

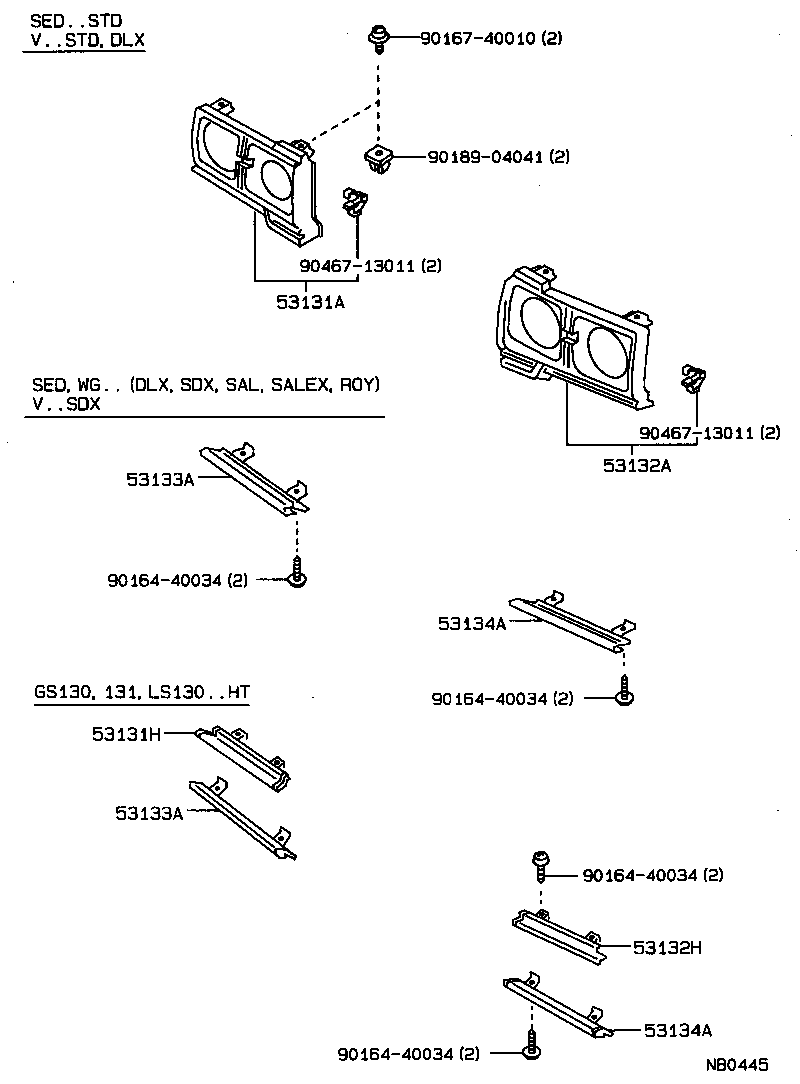

ILLUST NO. 2 OF 2(8709-8908)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90164-40034
90167-40010
90189-04041
90467-13011
