MS137-ATSUF (1987)
Toyota Crown
(8709- )SPC ; (8709- )JZS130,MS135,137 ; (8908- )TD,TDE

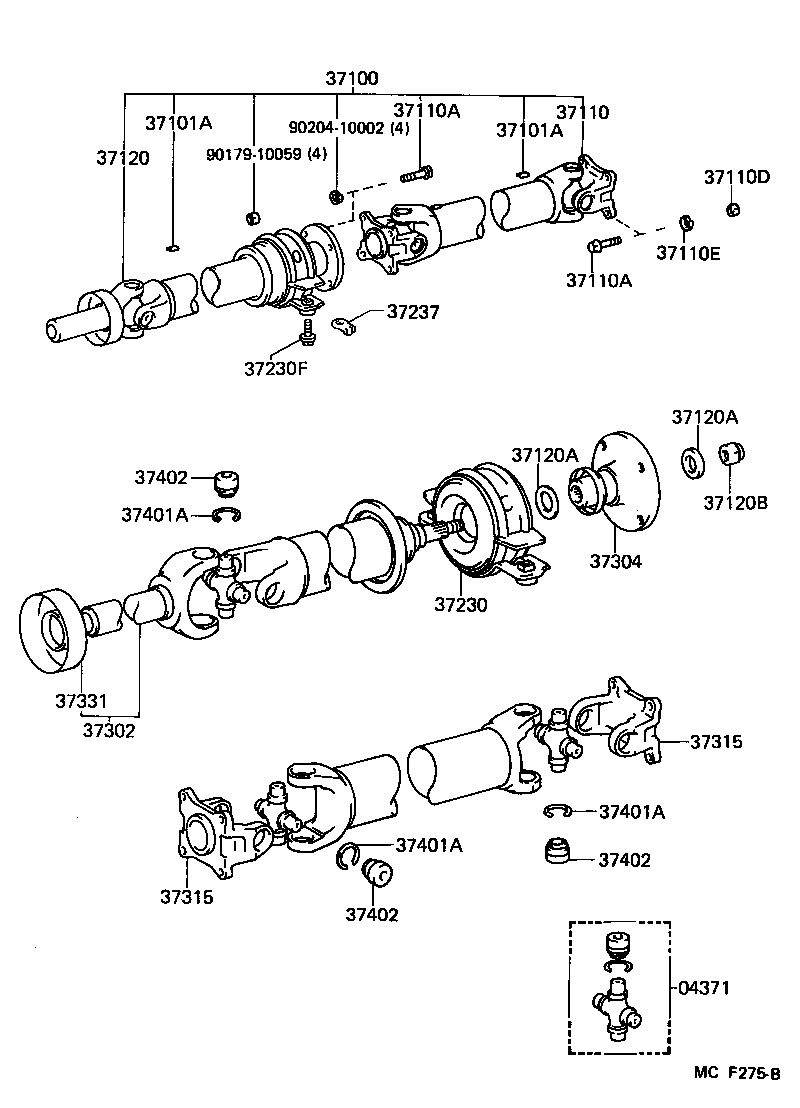

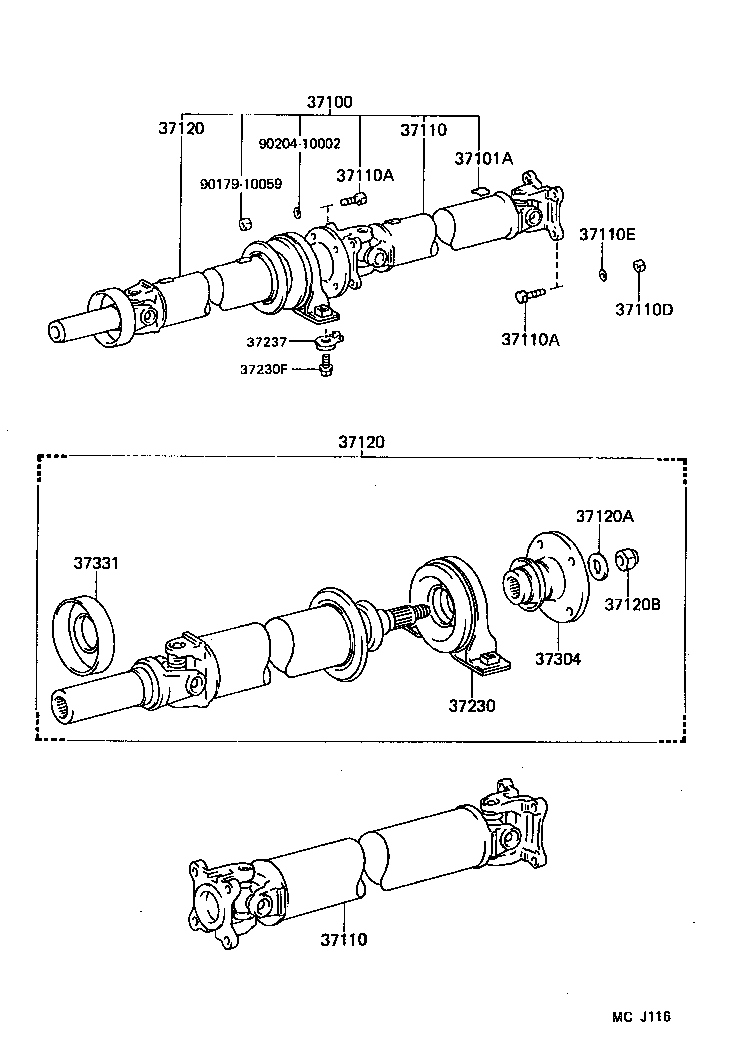

SOLID TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30020 |
MS135,137;GS130,131..SPC |
3 | ||
| 04371-30021 |
MS135,137;GS130,131..SPC |
3 | ||
| 04371-30021 |
MS135,137;GS130,131..SPC |
3 | ||
| 04371-30021 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
3 | ||
| 04371-30021 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30181 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37100-30180 |
MS135,137 |
1 | ||
| 37100-30181 |
MS135,137;GS131..SPC |
1 | ||
| 37100-30320 |
MS135,137;GS131..SPC |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01132 |
GS13#,JZS130,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
GS13#,JZS130,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,JZS130,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GS13#,JZS130,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01342 |
GS131..SPC;JZS131,MS13#,UZS131 1G,SHELL TYPE |
1 | ||
| 90937-01147 |
GS13#,JZS130,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS13#,JZS130,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01314 |
GS13#,JZS130,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01313 |
GS13#,JZS130,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01148 |
GS13#,JZS130,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01343 |
GS131..SPC;JZS131,MS13#,UZS131 2G,SHELL TYPE |
1 | ||
| 90937-01345 |
GS131..SPC;JZS131,MS13#,UZS131 4G,SHELL TYPE |
1 | ||
| 90937-01353 |
GS131..SPC;JZS131,MS13#,UZS131 18G,SHELL TYPE |
1 | ||
| 90937-01344 |
GS131..SPC;JZS131,MS13#,UZS131 3G,SHELL TYPE |
1 | ||
| 90937-01312 |
GS13#,JZS130,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS13#,JZS130,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01347 |
GS131..SPC;JZS131,MS13#,UZS131 6G,SHELL TYPE |
1 | ||
| 90937-01352 |
GS131..SPC;JZS131,MS13#,UZS131 16G,SHELL TYPE |
1 | ||
| 90937-01346 |
GS131..SPC;JZS131,MS13#,UZS131 5G,SHELL TYPE |
1 | ||
| 90937-01348 |
GS131..SPC;JZS131,MS13#,UZS131 8G,SHELL TYPE |
1 | ||
| 90937-01350 |
GS131..SPC;JZS131,MS13#,UZS131 12G,SHELL TYPE |
1 | ||
| 90937-01358 |
GS131..SPC;JZS131,MS13#,UZS131 8G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01351 |
GS131..SPC;JZS131,MS13#,UZS131 14G,SHELL TYPE |
1 | ||
| 90937-01359 |
GS131..SPC;JZS131,MS13#,UZS131 10G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01356 |
GS131..SPC;JZS131,MS13#,UZS131 4G,厚さ=1.0,長さ=25.4,SHELL TYPE |
1 | ||
| 90937-01361 |
GS131..SPC;JZS131,MS13#,UZS131 14G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01386 |
GS131..SPC;JZS131,MS13#,UZS131 24G,厚さ=2.0,長さ=50.8,SHELL TYPE |
1 | ||
| 90937-01362 |
GS131..SPC;JZS131,MS13#,UZS131 16G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01363 |
GS131..SPC;JZS131,MS13#,UZS131 18G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01355 |
GS131..SPC;JZS131,MS13#,UZS131 2G,厚さ=1.0,長さ=12.7,SHELL TYPE |
1 | ||
| 90937-01349 |
GS131..SPC;JZS131,MS13#,UZS131 10G,SHELL TYPE |
1 | ||
| 90937-01365 |
GS131..SPC;JZS131,MS13#,UZS131 1G,厚さ=1.0,長さ=6.4,SHELL TYPE |
1 | ||
| 90937-01357 |
GS131..SPC;JZS131,MS13#,UZS131 6G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01385 |
GS131..SPC;JZS131,MS13#,UZS131 22G,厚さ=2.0,長さ=46.6,SHELL TYPE |
1 | ||
| 90937-01360 |
GS131..SPC;JZS131,MS13#,UZS131 12G,厚さ=2.0,SHELL TYPE |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01132 |
GS13#,JZS130,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
GS13#,JZS130,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,JZS130,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GS13#,JZS130,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01342 |
GS131..SPC;JZS131,MS13#,UZS131 1G,SHELL TYPE |
1 | ||
| 90937-01147 |
GS13#,JZS130,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS13#,JZS130,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01314 |
GS13#,JZS130,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01313 |
GS13#,JZS130,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01148 |
GS13#,JZS130,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01343 |
GS131..SPC;JZS131,MS13#,UZS131 2G,SHELL TYPE |
1 | ||
| 90937-01345 |
GS131..SPC;JZS131,MS13#,UZS131 4G,SHELL TYPE |
1 | ||
| 90937-01353 |
GS131..SPC;JZS131,MS13#,UZS131 18G,SHELL TYPE |
1 | ||
| 90937-01344 |
GS131..SPC;JZS131,MS13#,UZS131 3G,SHELL TYPE |
1 | ||
| 90937-01312 |
GS13#,JZS130,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS13#,JZS130,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01347 |
GS131..SPC;JZS131,MS13#,UZS131 6G,SHELL TYPE |
1 | ||
| 90937-01352 |
GS131..SPC;JZS131,MS13#,UZS131 16G,SHELL TYPE |
1 | ||
| 90937-01346 |
GS131..SPC;JZS131,MS13#,UZS131 5G,SHELL TYPE |
1 | ||
| 90937-01348 |
GS131..SPC;JZS131,MS13#,UZS131 8G,SHELL TYPE |
1 | ||
| 90937-01350 |
GS131..SPC;JZS131,MS13#,UZS131 12G,SHELL TYPE |
1 | ||
| 90937-01358 |
GS131..SPC;JZS131,MS13#,UZS131 8G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01351 |
GS131..SPC;JZS131,MS13#,UZS131 14G,SHELL TYPE |
1 | ||
| 90937-01359 |
GS131..SPC;JZS131,MS13#,UZS131 10G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01356 |
GS131..SPC;JZS131,MS13#,UZS131 4G,厚さ=1.0,長さ=25.4,SHELL TYPE |
1 | ||
| 90937-01361 |
GS131..SPC;JZS131,MS13#,UZS131 14G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01386 |
GS131..SPC;JZS131,MS13#,UZS131 24G,厚さ=2.0,長さ=50.8,SHELL TYPE |
1 | ||
| 90937-01362 |
GS131..SPC;JZS131,MS13#,UZS131 16G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01363 |
GS131..SPC;JZS131,MS13#,UZS131 18G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01355 |
GS131..SPC;JZS131,MS13#,UZS131 2G,厚さ=1.0,長さ=12.7,SHELL TYPE |
1 | ||
| 90937-01349 |
GS131..SPC;JZS131,MS13#,UZS131 10G,SHELL TYPE |
1 | ||
| 90937-01365 |
GS131..SPC;JZS131,MS13#,UZS131 1G,厚さ=1.0,長さ=6.4,SHELL TYPE |
1 | ||
| 90937-01357 |
GS131..SPC;JZS131,MS13#,UZS131 6G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01385 |
GS131..SPC;JZS131,MS13#,UZS131 22G,厚さ=2.0,長さ=46.6,SHELL TYPE |
1 | ||
| 90937-01360 |
GS131..SPC;JZS131,MS13#,UZS131 12G,厚さ=2.0,SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37110-30110 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37110-30160 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE *10−1.00PX27−13 |
4 | ||
| 90105-10085 |
MS135,137;GS130,131..SPC *10−1.00PX27−13 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE *10−1.00PX27−13 |
4 | ||
| 90105-10085 |
MS135,137;GS130,131..SPC *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
MS135,137;GS130,131..SPC |
4 | ||
| 90179-10059 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
4 | ||
| 90204-10002 |
MS135,137;GS130,131..SPC |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30210 |
MS135,137 |
1 | ||
| 37120-30211 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37120-30211 |
MS135,137;GS131..SPC |
1 | ||
| 37120-30460 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37120-30320 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-25006 |
GS131..SPC;JZS131,MS13#,UZS131 厚さ=0.8,FR,T=0.8 |
2 | ||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
MS13#;GS131..SPC 外径=36.6,厚さ=0.8,FR,T=08 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-25006 |
GS131..SPC;JZS131,MS13#,UZS131 厚さ=0.8,FR,T=0.8 |
2 | ||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
MS13#;GS131..SPC 外径=36.6,厚さ=0.8,FR,T=08 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# |
1 | ||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 |
1 | ||
| 90179-18009 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30071 |
GS131,MS135,137 |
1 | ||
| 37230-30071 |
GS131..SSL..SPC;GS131,MS135,137..EFI,TWC |
1 | ||
| 37230-30080 |
GS131,MS135,137 |
1 | ||
| 37230-30080 |
GS131..5F;GS131..SPC;LS131,MS13# SOLID TYPE |
1 | ||
| 37230-30090 |
GS131..SPC;JZS131,MS13#,UZS131 |
1 | ||
| 37230-30070 |
GS131,MS135,137 |
1 | ||
| 37230-30090 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37230-30071 |
GS131,MS135,137 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
GS131,MS135,137 |
2 | ||
| 90119-10033 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 *10-1.25PX27-19 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-30030 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=3.7 |
1 | ||
| 37237-30010 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=1.7 |
1 | ||
| 37237-30050 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=5.7 |
1 | ||
| 37237-30020 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=2.7 |
1 | ||
| 37237-30080 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=8.7 |
1 | ||
| 37237-30070 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=7.7 |
1 | ||
| 37237-30040 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=4.7 |
1 | ||
| 37237-30060 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=6.7 |
1 | ||
| 37237-30100 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=10.7 |
1 | ||
| 37237-30090 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=9.7 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-30030 |
MS135,137;GS130,131..SPC |
1 | ||
| 37302-24010 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 37302-24010 |
GS130,131..SPC;JZS130,MS135,137 |
1 | ||
| 37302-24010 |
MS135,137;GS130,131..SPC |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 37304-35041 |
MS135,137;GS130,131..SPC |
1 | ||
| 37304-35041 |
MS135,137;GS130,131..SPC |
1 | ||
| 37304-35041 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
2 | ||
| 37315-35040 |
MS135,137;GS130,131..SPC |
2 | ||
| 37315-35040 |
MS135,137;GS130,131..SPC |
2 | ||
| 37315-35040 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
2 | ||
| 37315-35040 |
MS135,137;GS130,131..SPC |
2 | ||
| 37315-35040 |
MS135,137;GS130,131..SPC |
2 | ||
| 37315-35040 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-24010 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 37331-24010 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 37331-40010 |
MS135,137;GS130,131..SPC |
1 | ||
| 37331-24010 |
MS135,137;GS130,131..SPC |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
MS135,137;GS130,131..SPC 厚さ=1.50,外径=32.4 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26044 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26042 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26041 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26038 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26234 |
MS135,137;GS130,131..SPC 厚さ=1.55 |
12 | ||
| 90520-26045 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26235 |
MS135,137;GS130,131..SPC 厚さ=1.60 |
12 | ||
| 90520-26046 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26043 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26038 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26042 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26046 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26045 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26040 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26041 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26044 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
MS135,137;GS130,131..SPC 厚さ=1.50,外径=32.4 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26044 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26042 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26041 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26038 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26234 |
MS135,137;GS130,131..SPC 厚さ=1.55 |
12 | ||
| 90520-26045 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26235 |
MS135,137;GS130,131..SPC 厚さ=1.60 |
12 | ||
| 90520-26046 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26043 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26038 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26042 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26046 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26045 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26040 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26041 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26044 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
MS135,137;GS130,131..SPC 厚さ=1.50,外径=32.4 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26044 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26042 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26041 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26038 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26234 |
MS135,137;GS130,131..SPC 厚さ=1.55 |
12 | ||
| 90520-26045 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26235 |
MS135,137;GS130,131..SPC 厚さ=1.60 |
12 | ||
| 90520-26046 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26038 |
MS135,137;GS130,131..SPC 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26041 |
MS135,137;GS130,131..SPC 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26040 |
MS135,137;GS130,131..SPC 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26043 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26038 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26042 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26044 |
MS135,137;GS130,131..SPC 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 90520-26046 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26043 |
MS135,137;GS130,131..SPC 厚さ=2.325,ﾏｰｸ 5 |
12 | ||
| 90520-26045 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26045 |
MS135,137;GS130,131..SPC 厚さ=2.425,ﾏｰｸ 7 |
12 | ||
| 90520-26042 |
MS135,137;GS130,131..SPC 厚さ=2.275,ﾏｰｸ 4 |
12 | ||
| 90520-26046 |
MS135,137;GS130,131..SPC 厚さ=2.475,ﾏｰｸ 8 |
12 | ||
| 90520-26040 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.175,ﾏｰｸ 2 |
12 | ||
| 90520-26041 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.225,ﾏｰｸ 3 |
12 | ||
| 90520-26044 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE 厚さ=2.375,ﾏｰｸ 6 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30020 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30010 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30021 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC RED PAINTED |
12 | ||
| 37402-30021 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE RED PAINTED |
12 | ||
| 37402-30011 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30020 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30010 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30021 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC RED PAINTED |
12 | ||
| 37402-30021 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE RED PAINTED |
12 | ||
| 37402-30011 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30020 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30010 |
MS135,137;GS130,131..SPC |
12 | ||
| 37402-30021 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC RED PAINTED |
12 | ||
| 37402-30021 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE RED PAINTED |
12 | ||
| 37402-30011 |
JZS130,MS13#;GS130,131,LS130,131..SPC,TD,TDE |
12 | ||
| 37402-30021 |
MS135,137;GS130,131..SPC RED PAINTED |
12 | ||
| 37402-30011 |
MS135,137;GS130,131..SPC |
12 | ||
| Common parts | ||||
| 90179-10059 | ||||
| 90204-10002 | ||||
(8908- )JZS13#,MS13#,UZS131
SHELL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30181 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37100-30180 |
MS135,137 |
1 | ||
| 37100-30181 |
MS135,137;GS131..SPC |
1 | ||
| 37100-30320 |
MS135,137;GS131..SPC |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01132 |
GS13#,JZS130,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01149 |
GS13#,JZS130,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,JZS130,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GS13#,JZS130,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01342 |
GS131..SPC;JZS131,MS13#,UZS131 1G,SHELL TYPE |
1 | ||
| 90937-01147 |
GS13#,JZS130,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS13#,JZS130,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01314 |
GS13#,JZS130,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01313 |
GS13#,JZS130,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01148 |
GS13#,JZS130,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01343 |
GS131..SPC;JZS131,MS13#,UZS131 2G,SHELL TYPE |
1 | ||
| 90937-01345 |
GS131..SPC;JZS131,MS13#,UZS131 4G,SHELL TYPE |
1 | ||
| 90937-01353 |
GS131..SPC;JZS131,MS13#,UZS131 18G,SHELL TYPE |
1 | ||
| 90937-01344 |
GS131..SPC;JZS131,MS13#,UZS131 3G,SHELL TYPE |
1 | ||
| 90937-01312 |
GS13#,JZS130,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS13#,JZS130,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01347 |
GS131..SPC;JZS131,MS13#,UZS131 6G,SHELL TYPE |
1 | ||
| 90937-01352 |
GS131..SPC;JZS131,MS13#,UZS131 16G,SHELL TYPE |
1 | ||
| 90937-01346 |
GS131..SPC;JZS131,MS13#,UZS131 5G,SHELL TYPE |
1 | ||
| 90937-01348 |
GS131..SPC;JZS131,MS13#,UZS131 8G,SHELL TYPE |
1 | ||
| 90937-01350 |
GS131..SPC;JZS131,MS13#,UZS131 12G,SHELL TYPE |
1 | ||
| 90937-01358 |
GS131..SPC;JZS131,MS13#,UZS131 8G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01351 |
GS131..SPC;JZS131,MS13#,UZS131 14G,SHELL TYPE |
1 | ||
| 90937-01359 |
GS131..SPC;JZS131,MS13#,UZS131 10G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01356 |
GS131..SPC;JZS131,MS13#,UZS131 4G,厚さ=1.0,長さ=25.4,SHELL TYPE |
1 | ||
| 90937-01361 |
GS131..SPC;JZS131,MS13#,UZS131 14G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01386 |
GS131..SPC;JZS131,MS13#,UZS131 24G,厚さ=2.0,長さ=50.8,SHELL TYPE |
1 | ||
| 90937-01362 |
GS131..SPC;JZS131,MS13#,UZS131 16G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01363 |
GS131..SPC;JZS131,MS13#,UZS131 18G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01355 |
GS131..SPC;JZS131,MS13#,UZS131 2G,厚さ=1.0,長さ=12.7,SHELL TYPE |
1 | ||
| 90937-01349 |
GS131..SPC;JZS131,MS13#,UZS131 10G,SHELL TYPE |
1 | ||
| 90937-01365 |
GS131..SPC;JZS131,MS13#,UZS131 1G,厚さ=1.0,長さ=6.4,SHELL TYPE |
1 | ||
| 90937-01357 |
GS131..SPC;JZS131,MS13#,UZS131 6G,厚さ=2.0,SHELL TYPE |
1 | ||
| 90937-01385 |
GS131..SPC;JZS131,MS13#,UZS131 22G,厚さ=2.0,長さ=46.6,SHELL TYPE |
1 | ||
| 90937-01360 |
GS131..SPC;JZS131,MS13#,UZS131 12G,厚さ=2.0,SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37110-30110 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37110-30160 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SPC |
1 | ||
| 37110-30110 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37110-30110 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37110-30160 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE *10−1.00PX27−13 |
4 | ||
| 90105-10085 |
MS135,137;GS130,131..SPC *10−1.00PX27−13 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE *10−1.00PX27−13 |
4 | ||
| 90105-10085 |
MS135,137;GS130,131..SPC *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
MS135,137;GS130,131..SPC |
4 | ||
| 90179-10059 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
4 | ||
| 90204-10002 |
MS135,137;GS130,131..SPC |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30210 |
MS135,137 |
1 | ||
| 37120-30211 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37120-30211 |
MS135,137;GS131..SPC |
1 | ||
| 37120-30460 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37120-30320 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30210 |
MS135,137 |
1 | ||
| 37120-30211 |
MS135,137;GS131..SSL..SPC |
1 | ||
| 37120-30211 |
MS135,137;GS131..SPC |
1 | ||
| 37120-30460 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37120-30320 |
MS13#;GS131..SPC SOLID TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-25006 |
GS131..SPC;JZS131,MS13#,UZS131 厚さ=0.8,FR,T=0.8 |
2 | ||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
MS13#;GS131..SPC 外径=36.6,厚さ=0.8,FR,T=08 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# |
1 | ||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 |
1 | ||
| 90179-18009 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30071 |
GS131,MS135,137 |
1 | ||
| 37230-30071 |
GS131..SSL..SPC;GS131,MS135,137..EFI,TWC |
1 | ||
| 37230-30080 |
GS131,MS135,137 |
1 | ||
| 37230-30080 |
GS131..5F;GS131..SPC;LS131,MS13# SOLID TYPE |
1 | ||
| 37230-30090 |
GS131..SPC;JZS131,MS13#,UZS131 |
1 | ||
| 37230-30070 |
GS131,MS135,137 |
1 | ||
| 37230-30090 |
MS13#;GS131..SPC SHEEL TYPE |
1 | ||
| 37230-30071 |
GS131,MS135,137 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
GS131,MS135,137 |
2 | ||
| 90119-10033 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 *10-1.25PX27-19 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-30030 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=3.7 |
1 | ||
| 37237-30010 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=1.7 |
1 | ||
| 37237-30050 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=5.7 |
1 | ||
| 37237-30020 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=2.7 |
1 | ||
| 37237-30080 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=8.7 |
1 | ||
| 37237-30070 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=7.7 |
1 | ||
| 37237-30040 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=4.7 |
1 | ||
| 37237-30060 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=6.7 |
1 | ||
| 37237-30100 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=10.7 |
1 | ||
| 37237-30090 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 厚さ=9.7 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 37304-35041 |
MS135,137;GS130,131..SPC |
1 | ||
| 37304-35041 |
MS135,137;GS130,131..SPC |
1 | ||
| 37304-35041 |
JZS13#,MS13#,UZS131;GS130,131,LS130,131..SPC,TD,TDE |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-24010 |
GS131..SSL..SPC;GS130,MS135,137..SPC,TWC |
1 | ||
| 37331-24010 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
1 | ||
| 37331-40010 |
MS135,137;GS130,131..SPC |
1 | ||
| 37331-24010 |
MS135,137;GS130,131..SPC |
1 | ||
| Common parts | ||||
| 90179-10059 | ||||
| 90204-10002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
