MS137-ATPUF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

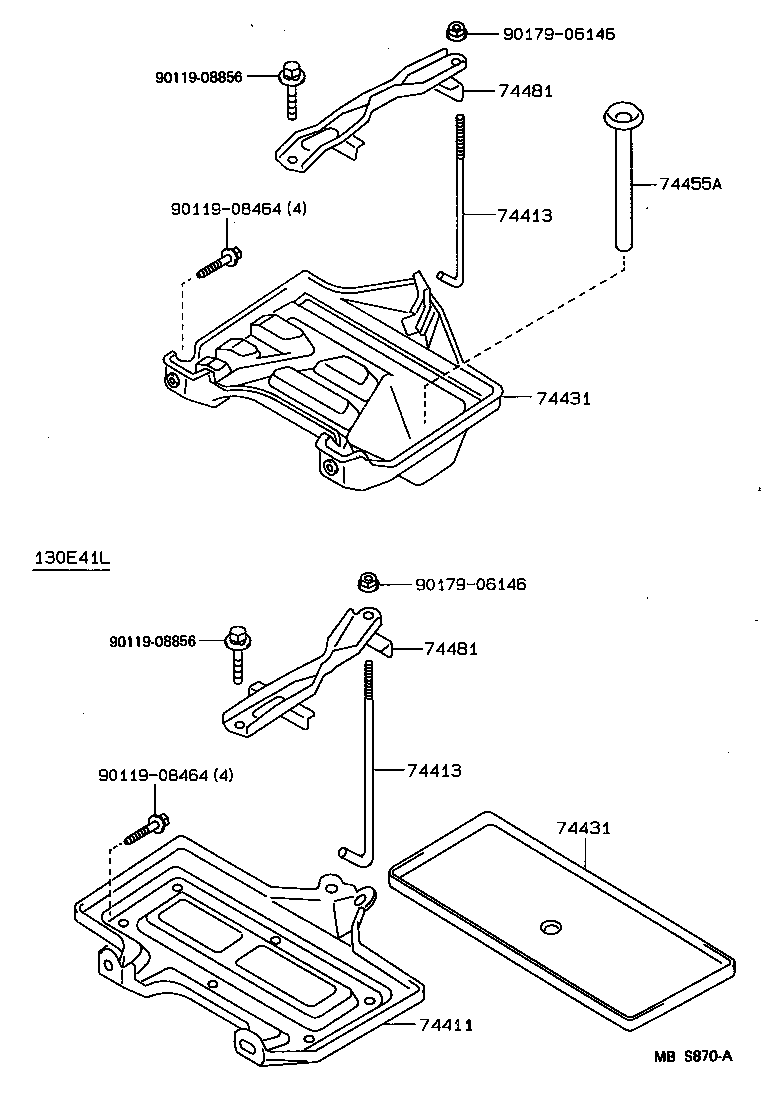

Click highlighted areas on diagram

diagram 74411 74413 74413 74431 74431 74455A 74481 74481 9011908464 9011908464 9011908856 9011908856 9017906146 9017906146
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-30090

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
74413 - BOLT, BATTERY CLAMP
74451-30090

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
74431 - TRAY, BATTERY
74431-30090

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG

 1
74431 - TRAY, BATTERY
74431-30090

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

MS137,UZS131

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-30220

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-30220

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
90119-08464
90119-08856
90179-06146
