MS137-ATPUF (1987)
Toyota Crown
(8709- )HT,SED

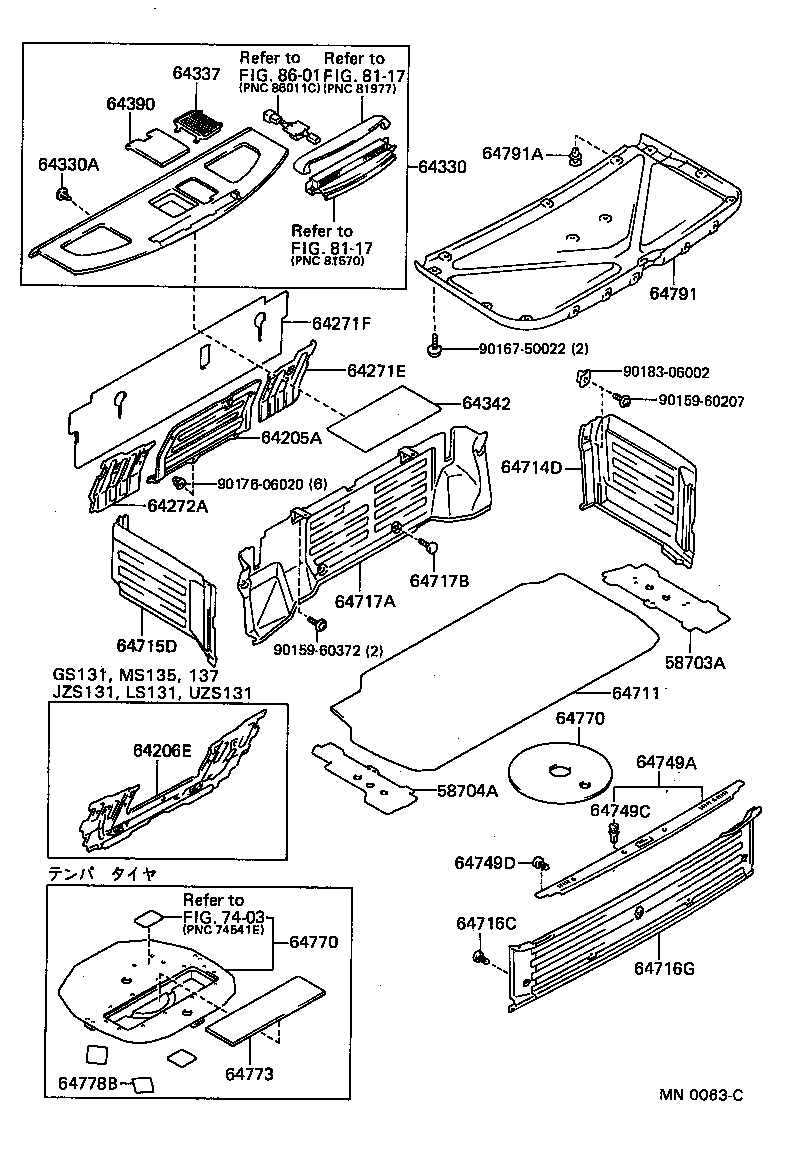

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-30030 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64205-30020 |
GS131,JZS131,LS131,MS135,137,UZS131 |
1 | ||
| 64206E - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-30020 |
GS131..HT..ROY;GS131,LS131..SED..(ROY,SALEX);JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-30120 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3075002 |
MS135,137..WIB;GS131..HT..ROY..SPC ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 64330-3075006 |
MS135,137..WIB;GS131..HT..ROY..SPC ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 64330-3075004 |
MS135,137..WIB;GS131..HT..ROY..SPC ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 64330-3079006 |
MS135,137..WIB;GS131..HT..ROY..SPC SABLE,TRIM4# |
1 | ||
| 64330-3079002 |
MS135,137..WIB;GS131..HT..ROY..SPC MAROON,TRIM3# |
1 | ||
| 64330-3079004 |
MS135,137..WIB;GS131..HT..ROY..SPC BLUE,TRIM8# |
1 | ||
| 64330-3087004 |
GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG) BLUE,TRIM8# |
1 | ||
| 64330-3087006 |
GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG) SABLE,TRIM4# |
1 | ||
| 64330-3087002 |
GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG) MAROON,TRIM3# |
1 | ||
| 64330-3088004 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 64330-3088002 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 64330-3088006 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0801546 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG SABLE,TRIM4# |
3 | ||
| 90467-0801512 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG MAROON,TRIM3# |
3 | ||
| 90467-0801554 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG BLUE,TRIM8# |
3 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-3013002 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) MAROON,TRIM3# |
1 | ||
| 64337-3013004 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) BLUE,TRIM8# |
1 | ||
| 64337-3013006 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) SABLE,TRIM4# |
1 | ||
| 64390 - BASE ASSY, PACKAGE TRAY TRIM POCKET | ||||
| 64390-3001002 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 64390-3001004 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 64390-3002002 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) MAROON,TRIM3# |
1 | ||
| 64390-3002006 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) SABLE,TRIM4# |
1 | ||
| 64390-3001006 |
GS131..HT..ROY..SPC;JZS131,MS13#,UZS131..(ROY,ROYG)..WIB ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 64390-3002004 |
GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX) BLUE,TRIM8# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-3027003 |
GS131,MS135,137..ROY,ROYG GRAY,TRIM3#,4#,8# |
1 | ||
| 64711-3027103 |
GS131,JZS131,MS13#,UZS131..ROY,ROYG GRAY,TRIM3#,4#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-3011003 |
JZS131,MS135,137,UZS131..(ROY,ROYG,SALEX)..WIB GRAY,TRIM3#,4#,8# |
1 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-3012003 |
JZS131,MS135,137,UZS131..(ROY,ROYG,SALEX)..WIB GRAY,TRIM3#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0500433 |
GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) GRAY,TRIM3#,4#,8# |
5 | ||
| 90467-0500433 |
GS131,JZS131,LS131,MS13#,UZS131 GRAY,TRIM3#,4#,8# |
5 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-3013003 |
GS131,JZS131,LS130,131,MS135,137,UZS131..HT..(ROY,ROYG,SALEX) GRAY,TRIM3#,4#,8# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-3015003 |
GS131,JZS131,LS130,131,MS135,137..HT..(ROY,ROYG,SALEX) GRAY,TRIM3#,4#,8# |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-0708003 |
GS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL) GRAY,TRIM3#,4#,8# |
4 | ||
| 90467-0708003 |
GS131,JZS131,LS131,MS13#,UZS131 GRAY,TRIM3#,4#,8# |
4 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-3006003 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT GRAY,TRIM3#,4#,8# |
1 | ||
| 64749C - CLIP(FOR LUGGAGE DOOR STRIKER COVER) | ||||
| 90467-06059 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
4 | ||
| 64749D - CLIP(FOR LUGGAGE COMPARTMENT DOOR STRIKER COVER) | ||||
| 90467-0704343 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT GRAY,TRIM3#,4#,8# |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-30070 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64770-30050 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾌﾂｳ ﾀｲﾔ) |
1 | ||
| 64770-30071 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-30070 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64770-30050 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾌﾂｳ ﾀｲﾔ) |
1 | ||
| 64770-30071 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 64773 - COVER, SPARE WHEEL, NO.2 | ||||
| 64773-30020 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
1 | ||
| 64778B - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) |
3 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-3002003 |
MS137..4FC..WIB GRAY,TRIM3#,4#,8# |
1 | ||
| 64791-3002003 |
MS137..4FC..WIB GRAY,TRIM3#,4#,8# |
1 | ||
| 64791-3002003 |
GS131,JZS131,LS131,MS13#..HT GRAY,TRIM3#,4#,8# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0705903 |
MS137..4FC..WIB GRAY,TRIM3#,4#,8# |
18 | ||
| 90467-0705903 |
MS137..4FC..WIB GRAY,TRIM3#,4#,8# |
18 | ||
| 90467-0705903 |
GS131,JZS131,LS131,MS13#..HT GRAY,TRIM3#,4#,8# |
18 | ||
| Common parts | ||||
| 90159-60207 | ||||
| 90159-60372 | ||||
| 90167-50022 | ||||
| 90176-06020 | ||||
| 90183-06002 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8117 | ||||
| 8601 | ||||
