MS137-ATPUF (1987)
Toyota Crown

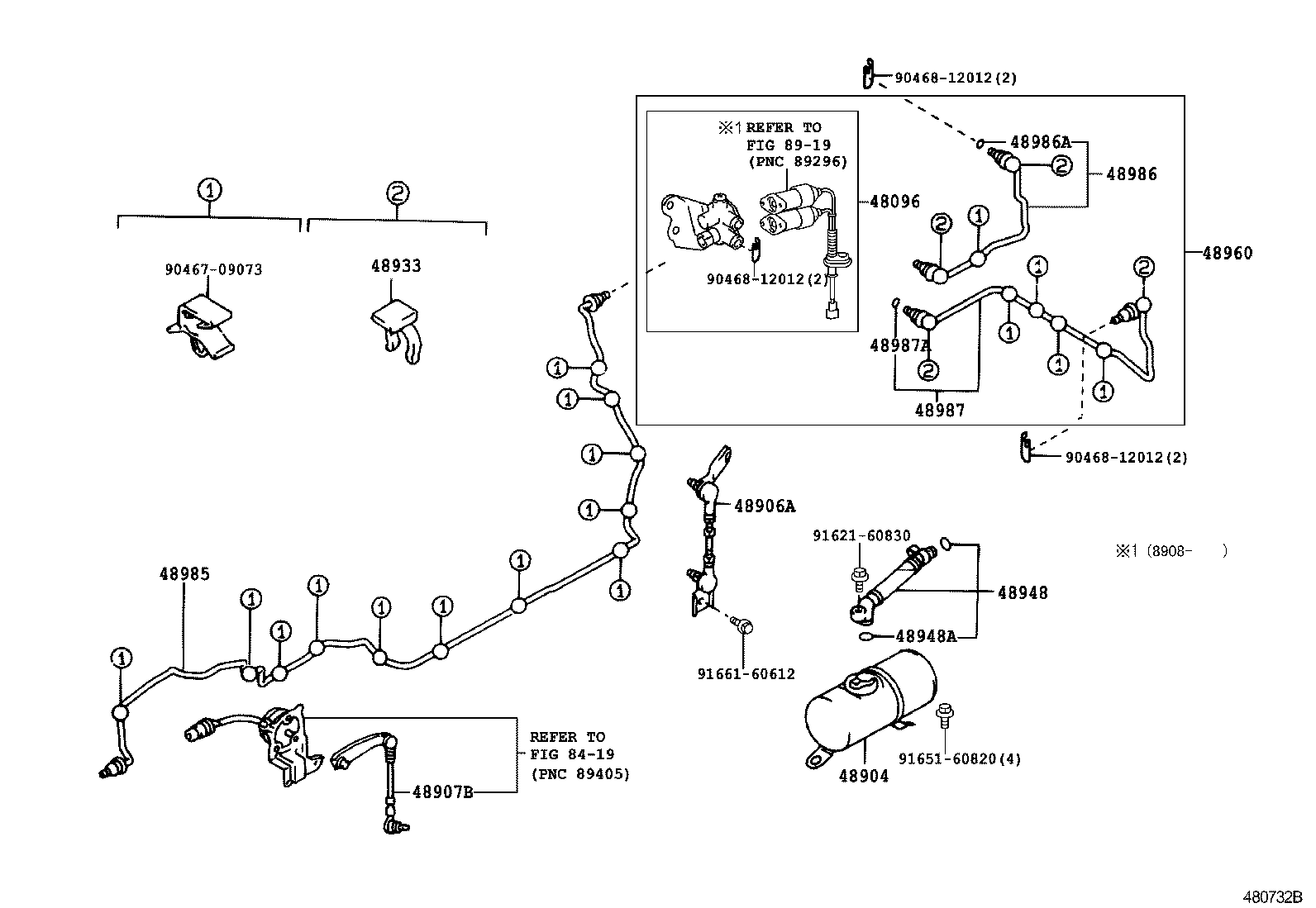

(8709- )MS137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-30020 |
MS137,UZS131 |
1 | ||
| 48096-30011 |
MS137 |
1 | ||
| 48904 - TANK SUB-ASSY, PNEUMATIC, REAR | ||||
| 48904-30011 |
MS137,UZS131 右側 |
1 | ||
| 48904-30011 |
MS137 右側 |
1 | ||
| 48904-30021 |
MS137,UZS131 左側 |
1 | ||
| 48904-30021 |
MS137 左側 |
1 | ||
| 48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-30021 |
MS137,UZS131 左側 |
1 | ||
| 48907-30011 |
MS137,UZS131 右側 |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48948 - TUBE, CHAMBER TO TANK, REAR | ||||
| 48948-30020 |
MS137 左側 |
1 | ||
| 48948-30020 |
MS137,UZS131 左側 |
1 | ||
| 48948-30010 |
MS137,UZS131 右側 |
1 | ||
| 48948-30010 |
MS137 右側 |
1 | ||
| 48948A - RING, O(FOR CHAMBER TO TANK REAR TUBE) | ||||
| 90301-16002 |
MS137,UZS131 |
4 | ||
| 48960 - VALVE ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48960-30020 |
MS137,UZS131 |
1 | ||
| 48960-30010 |
MS137 |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-30010 |
MS137,UZS131 |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-30010 |
MS137,UZS131 |
1 | ||
| 48986A - RING, O(FOR HEIGHT CONTROL NO.6 TUBE) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-30010 |
MS137,UZS131 |
1 | ||
| 48987A - RING, O(FOR HEIGHT CONTROL NO.7 TUBE) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| Common parts | ||||
| 90467-09073 | ||||
| 90468-12012 | ||||
| 91621-60830 | ||||
| 91651-60820 | ||||
| 91661-60612 | ||||
| Linked diagrams | ||||
| 8419 | ||||
| 8919 | ||||

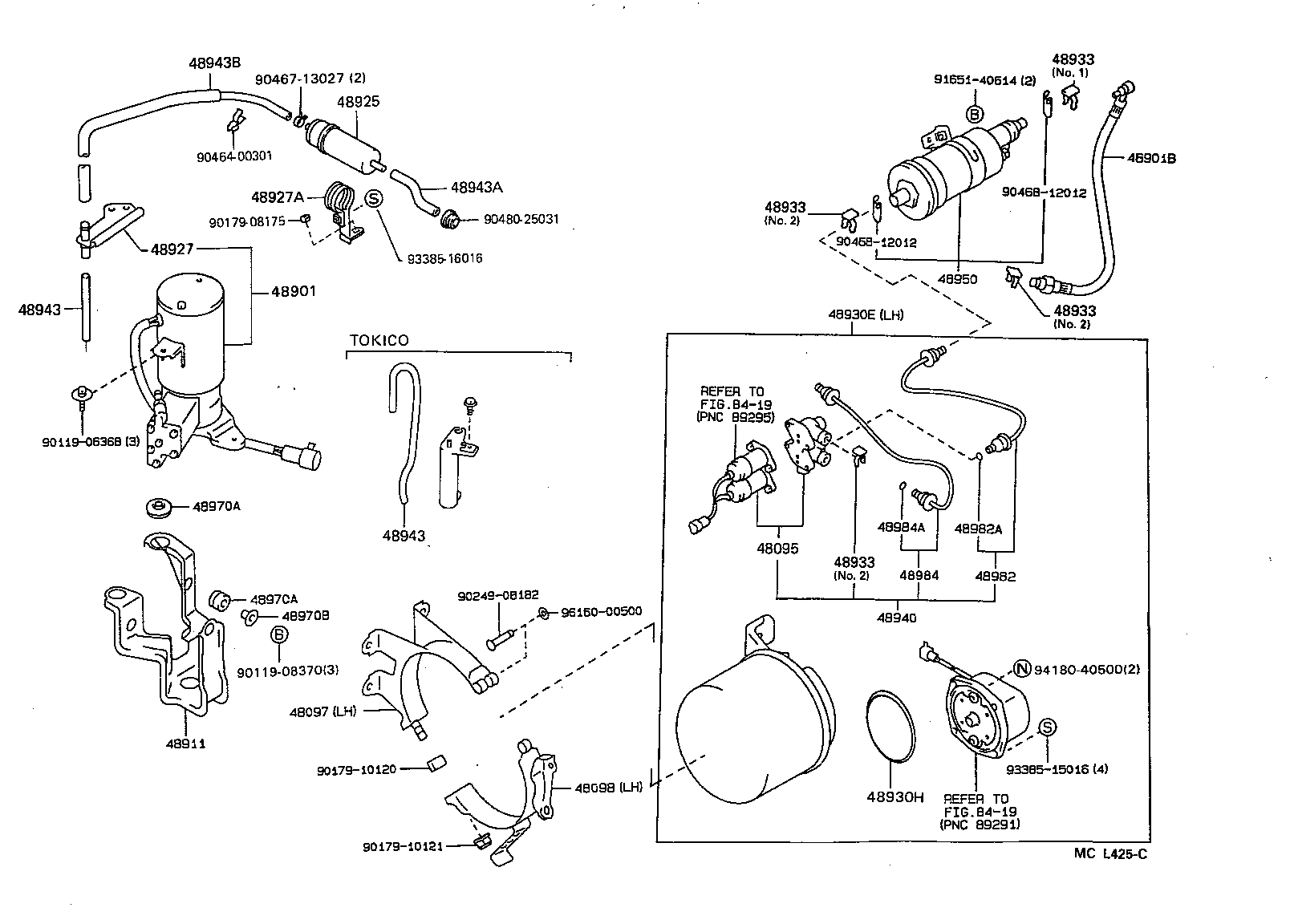

(9007- )MS137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-30011 |
MS137 |
1 | ||
| 48095-30012 |
MS137,UZS131 |
1 | ||
| 48097 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1 | ||||
| 48097-30020 |
MS137,UZS131 左側 |
1 | ||
| 48097-30030 |
MS137,UZS131 右側 |
1 | ||
| 48097-30010 |
MS137 右側 |
1 | ||
| 48098 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2 | ||||
| 48098-30020 |
MS137 左側 |
1 | ||
| 48098-30010 |
MS137,UZS131 右側 |
1 | ||
| 48098-30010 |
MS137 右側 |
1 | ||
| 48098-30020 |
MS137,UZS131 左側 |
1 | ||
| 48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48910-30051 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30022 |
MS137 |
1 | ||
| 48910-30021 |
MS137 |
1 | ||
| 48910-30100 |
MS137,UZS131 AISIN |
1 | ||
| 48910-30120 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30020 |
MS137 |
1 | ||
| 48910-30080 |
MS137 AISIN |
1 | ||
| 48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90947-02545 |
MS137,UZS131 |
2 | ||
| 90947-02649 |
MS137,UZS131 |
1 | ||
| 90947-02545 |
MS137 |
1 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-30021 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-30010 |
GS131..ROY..SPC;MS135,137..ROY,ROYG |
1 | ||
| 48925-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 48927 - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48927-30021 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG |
1 | ||
| 48927-30040 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 48927A - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.2 | ||||
| 48927-30030 |
MS137,UZS131 |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-30020 |
MS137 左側 |
1 | ||
| 48930-30041 |
MS137,UZS131 左側 |
1 | ||
| 48930-30021 |
MS137 左側 |
1 | ||
| 48930-30031 |
MS137,UZS131 右側 |
1 | ||
| 48930-30010 |
MS137 右側 |
1 | ||
| 48930H - GASKET(FOR PNEUMATIC TANK) | ||||
| 90430-86001 |
MS137,UZS131 |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48940 - VALVE ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48940-30010 |
MS137 |
1 | ||
| 48940-30012 |
MS137,UZS131 |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48943-30090 |
MS137 TOKICO |
1 | ||
| 48943-30010 |
MS137 AISIN |
1 | ||
| 48943-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG AISIN |
1 | ||
| 48943-30080 |
MS137,UZS131 TOKICO |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48943-30090 |
MS137 TOKICO |
1 | ||
| 48943-30010 |
MS137 AISIN |
1 | ||
| 48943-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG AISIN |
1 | ||
| 48943-30080 |
MS137,UZS131 TOKICO |
1 | ||
| 48943A - HOSE, HEIGHT CONTROL, NO.3 | ||||
| 48943-30050 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 48943B - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48943-30040 |
MS137,UZS131 |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-30020 |
MS137 AISIN |
1 | ||
| 48950-30061 |
MS137,UZS131 |
1 | ||
| 48950-30090 |
MS137,UZS131 AISIN(BODY:WHITE) |
1 | ||
| 48950-30110 |
MS137,UZS131 TOKICO(BODY:BLACK) |
1 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 90389-06022 |
MS135,137;GS131..ROY..SPC AISIN,OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
MS135,137;GS131..ROY..SPC OD=22,T=15.7 |
3 | ||
| 90385-10022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 90389-06022 |
MS135,137;GS131..ROY..SPC AISIN,OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
MS135,137;GS131..ROY..SPC OD=22,T=15.7 |
3 | ||
| 90385-10022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET) | ||||
| 90561-08002 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
3 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-30021 |
MS137,UZS131 |
1 | ||
| 48982-30020 |
MS137 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-30040 |
MS137,UZS131 |
1 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-08370 | ||||
| 90179-08175 | ||||
| 90179-10120 | ||||
| 90179-10121 | ||||
| 90249-08182 | ||||
| 90464-00301 | ||||
| 90467-13027 | ||||
| 90468-12012 | ||||
| 90480-25031 | ||||
| 91651-40614 | ||||
| 93385-15016 | ||||
| 93385-16016 | ||||
| 94180-40500 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8419 | ||||

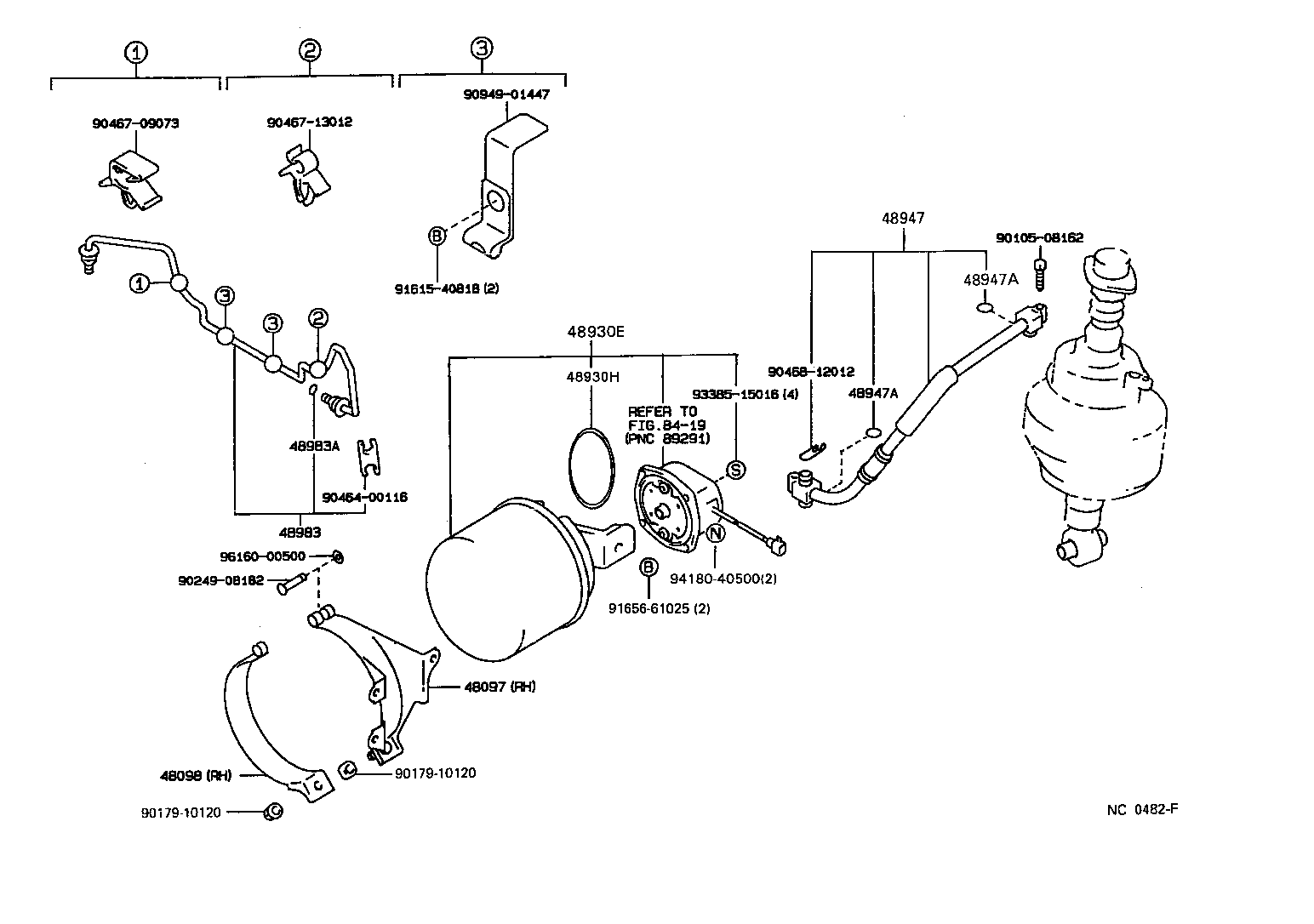

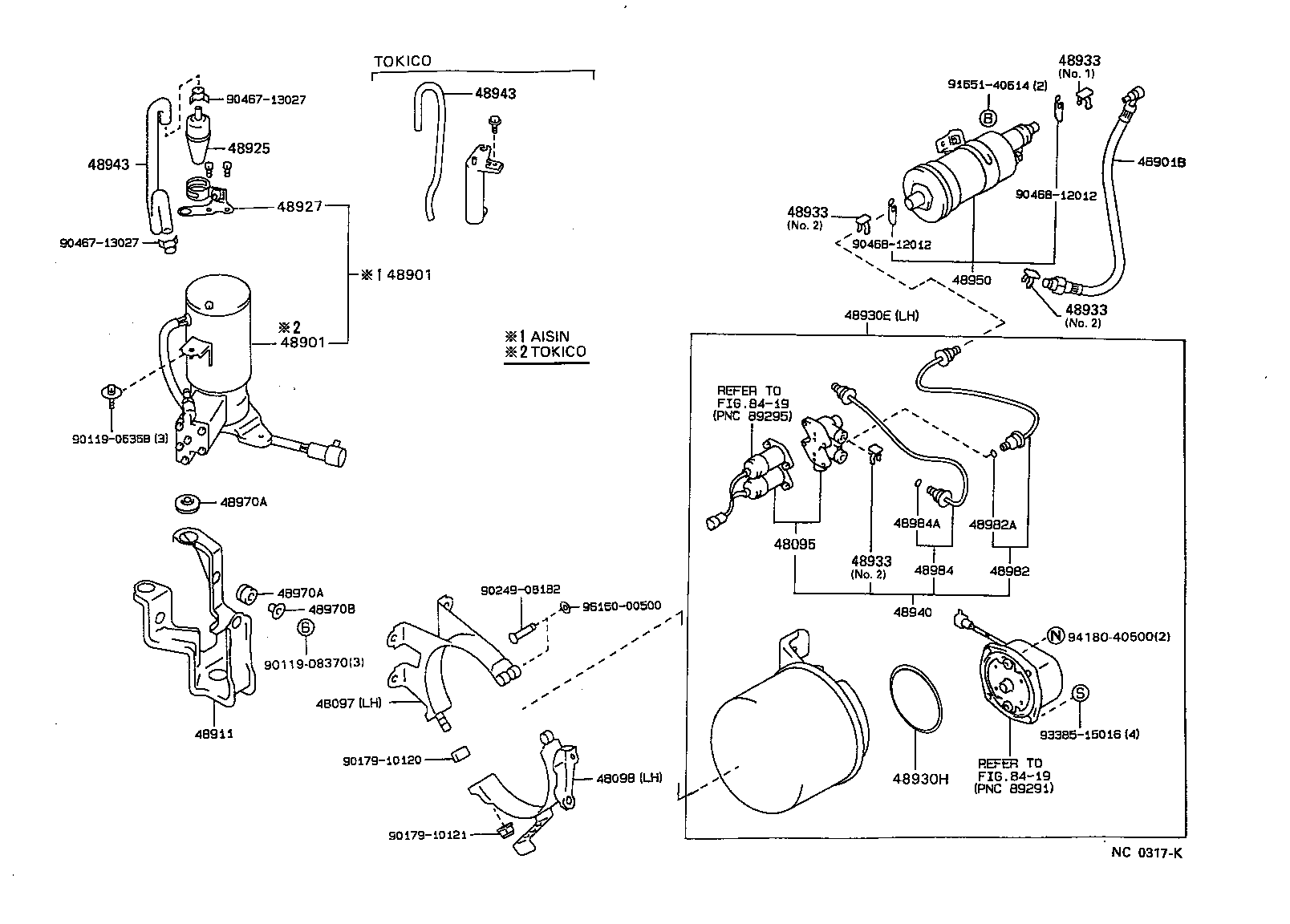

(8709-9007)MS137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-30011 |
MS137 |
1 | ||
| 48095-30012 |
MS137,UZS131 |
1 | ||
| 48097 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1 | ||||
| 48097-30020 |
MS137,UZS131 左側 |
1 | ||
| 48097-30030 |
MS137,UZS131 右側 |
1 | ||
| 48097-30010 |
MS137 右側 |
1 | ||
| 48098 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2 | ||||
| 48098-30020 |
MS137 左側 |
1 | ||
| 48098-30010 |
MS137,UZS131 右側 |
1 | ||
| 48098-30010 |
MS137 右側 |
1 | ||
| 48098-30020 |
MS137,UZS131 左側 |
1 | ||
| 48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48910-30051 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30022 |
MS137 |
1 | ||
| 48910-30021 |
MS137 |
1 | ||
| 48910-30100 |
MS137,UZS131 AISIN |
1 | ||
| 48910-30120 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30020 |
MS137 |
1 | ||
| 48910-30080 |
MS137 AISIN |
1 | ||
| 48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48910-30051 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30022 |
MS137 |
1 | ||
| 48910-30021 |
MS137 |
1 | ||
| 48910-30100 |
MS137,UZS131 AISIN |
1 | ||
| 48910-30120 |
MS137,UZS131 TOKICO |
1 | ||
| 48910-30020 |
MS137 |
1 | ||
| 48910-30080 |
MS137 AISIN |
1 | ||
| 48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90947-02545 |
MS137,UZS131 |
2 | ||
| 90947-02649 |
MS137,UZS131 |
1 | ||
| 90947-02545 |
MS137 |
1 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-30021 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-30010 |
GS131..ROY..SPC;MS135,137..ROY,ROYG |
1 | ||
| 48925-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 48927 - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48927-30021 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG |
1 | ||
| 48927-30040 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-30020 |
MS137 左側 |
1 | ||
| 48930-30041 |
MS137,UZS131 左側 |
1 | ||
| 48930-30021 |
MS137 左側 |
1 | ||
| 48930-30031 |
MS137,UZS131 右側 |
1 | ||
| 48930-30010 |
MS137 右側 |
1 | ||
| 48930H - GASKET(FOR PNEUMATIC TANK) | ||||
| 90430-86001 |
MS137,UZS131 |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30020 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1 |
1 | ||
| 48933-30010 |
MS137,UZS131 |
2 | ||
| 48933-30010 |
MS137,UZS131 NO.2 |
8 | ||
| 48933-30010 |
MS137 NO.2 |
6 | ||
| 48940 - VALVE ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48940-30010 |
MS137 |
1 | ||
| 48940-30012 |
MS137,UZS131 |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48943-30090 |
MS137 TOKICO |
1 | ||
| 48943-30010 |
MS137 AISIN |
1 | ||
| 48943-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG AISIN |
1 | ||
| 48943-30080 |
MS137,UZS131 TOKICO |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30010 |
MS135,137;GS131..ROY..SPC |
1 | ||
| 48943-30090 |
MS137 TOKICO |
1 | ||
| 48943-30010 |
MS137 AISIN |
1 | ||
| 48943-30030 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG AISIN |
1 | ||
| 48943-30080 |
MS137,UZS131 TOKICO |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-30020 |
MS137 AISIN |
1 | ||
| 48950-30061 |
MS137,UZS131 |
1 | ||
| 48950-30090 |
MS137,UZS131 AISIN(BODY:WHITE) |
1 | ||
| 48950-30110 |
MS137,UZS131 TOKICO(BODY:BLACK) |
1 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 90389-06022 |
MS135,137;GS131..ROY..SPC AISIN,OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
MS135,137;GS131..ROY..SPC OD=22,T=15.7 |
3 | ||
| 90385-10022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 90389-06022 |
MS135,137;GS131..ROY..SPC AISIN,OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG OD=30,T=15 |
3 | ||
| 90389-06022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
MS135,137;GS131..ROY..SPC OD=22,T=15.7 |
3 | ||
| 90385-10022 |
GS131..ROY..SPC;MS13#,UZS131..ROY,ROYG OD=22,T=15.7 |
3 | ||
| 48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET) | ||||
| 90561-08002 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG |
3 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-30021 |
MS137,UZS131 |
1 | ||
| 48982-30020 |
MS137 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-30040 |
MS137,UZS131 |
1 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-08370 | ||||
| 90179-10120 | ||||
| 90179-10121 | ||||
| 90249-08182 | ||||
| 90467-13027 | ||||
| 90468-12012 | ||||
| 91651-40614 | ||||
| 93385-15016 | ||||
| 94180-40500 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8419 | ||||
(8709- )MS137,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48097 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1 | ||||
| 48097-30020 |
MS137,UZS131 左側 |
1 | ||
| 48097-30030 |
MS137,UZS131 右側 |
1 | ||
| 48097-30010 |
MS137 右側 |
1 | ||
| 48098 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2 | ||||
| 48098-30020 |
MS137 左側 |
1 | ||
| 48098-30010 |
MS137,UZS131 右側 |
1 | ||
| 48098-30010 |
MS137 右側 |
1 | ||
| 48098-30020 |
MS137,UZS131 左側 |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-30020 |
MS137 左側 |
1 | ||
| 48930-30041 |
MS137,UZS131 左側 |
1 | ||
| 48930-30021 |
MS137 左側 |
1 | ||
| 48930-30031 |
MS137,UZS131 右側 |
1 | ||
| 48930-30010 |
MS137 右側 |
1 | ||
| 48930H - GASKET(FOR PNEUMATIC TANK) | ||||
| 90430-86001 |
MS137,UZS131 |
2 | ||
| 48947 - TUBE, CHAMBER TO TANK, FRONT | ||||
| 48947-30020 |
MS137 左側 |
1 | ||
| 48947-30010 |
MS137 右側 |
1 | ||
| 48947-30020 |
MS137,UZS131 左側 |
1 | ||
| 48947-30010 |
MS137,UZS131 右側 |
1 | ||
| 48947A - RING, O(FOR CHAMBER TO TANK FRONT TUBE) | ||||
| 90301-16002 |
MS137,UZS131 |
4 | ||
| 48947A - RING, O(FOR CHAMBER TO TANK FRONT TUBE) | ||||
| 90301-16002 |
MS137,UZS131 |
4 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-30040 |
MS137,UZS131 |
1 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04006 |
MS137,UZS131 |
2 | ||
| Common parts | ||||
| 90105-08162 | ||||
| 90179-10120 | ||||
| 90249-08182 | ||||
| 90464-00116 | ||||
| 90467-09073 | ||||
| 90467-13012 | ||||
| 90468-12012 | ||||
| 90949-01447 | ||||
| 91615-40818 | ||||
| 91656-61025 | ||||
| 93385-15016 | ||||
| 94180-40500 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
