MS137-AESUF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )7MGE

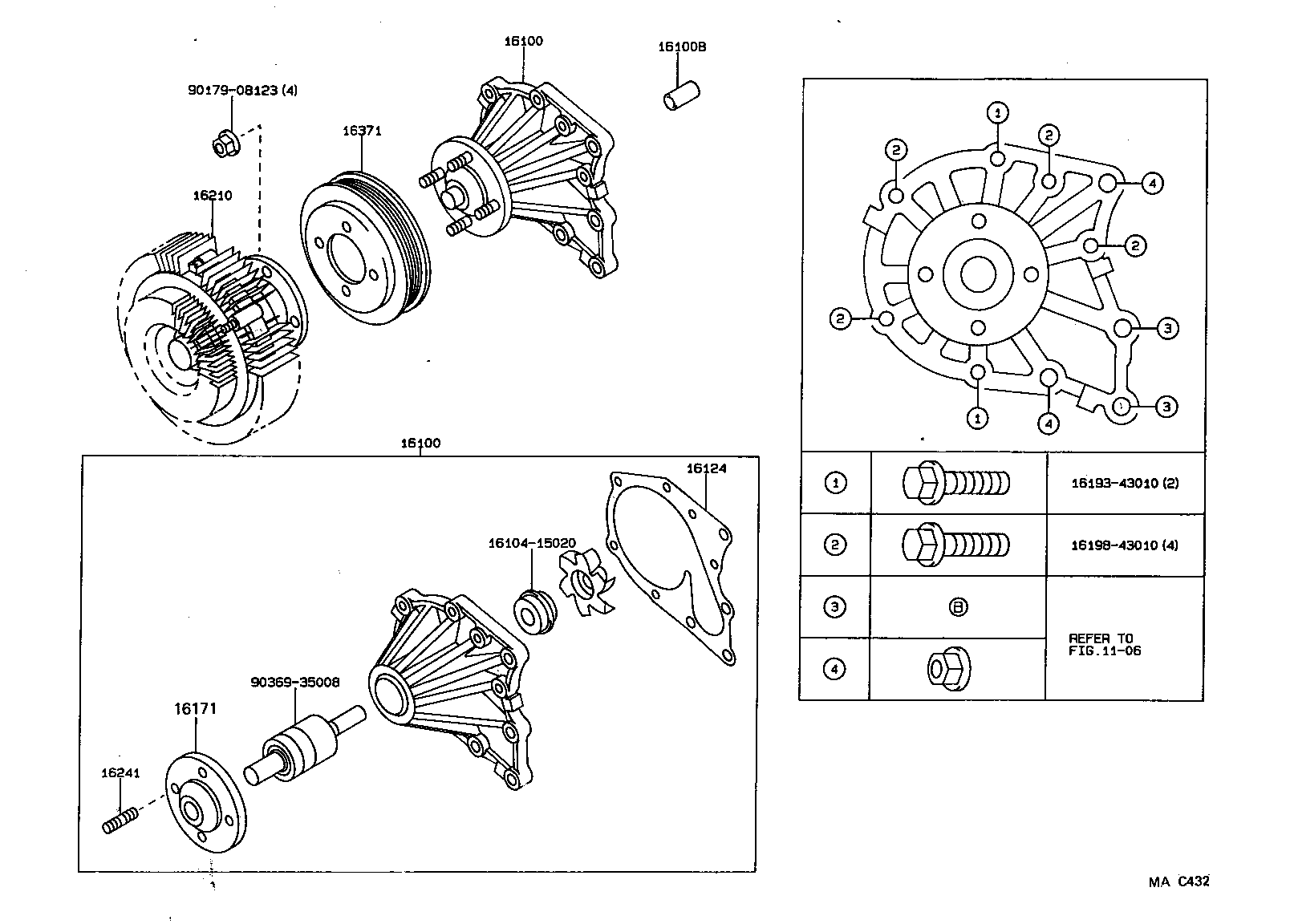

Click highlighted areas on diagram

diagram 1106 16100 16100 16100B 1610415020 16124 16171 1619343010 1619843010 16210 16241 16371 9017908123 9036935008
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49755

7MGE..MS135,137

 1
16100-49756

7MGE..MS13#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-49755

7MGE..MS135,137

 1
16100-49756

7MGE..MS13#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16185-70010

7MGE..MS135,137

 2
16124 - GASKET, WATER PUMP COVER
16124-42010

7MGE..MS135,137

 1
16124-42020

7MGE..MS13#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-43040

7MGE..MS13#

 1
16210 - COUPLING ASSY, FLUID
16210-43020

7MGE..MS135,137

 1
16210-42090

7MGE..MS135,137

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-43040

7MGE..MS135,137

 1
16198-43040

7MGE,MP..MS13#

 4
16198-43040

7MGE..MS13#

 1
16371 - PULLEY, FAN
16173-42020

7MGE..MS135,137

 1
Common parts
16104-15020
16193-43010
16198-43010
90179-08123
90369-35008
Linked diagrams
1106
