MS135-ATSQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )MS135,137

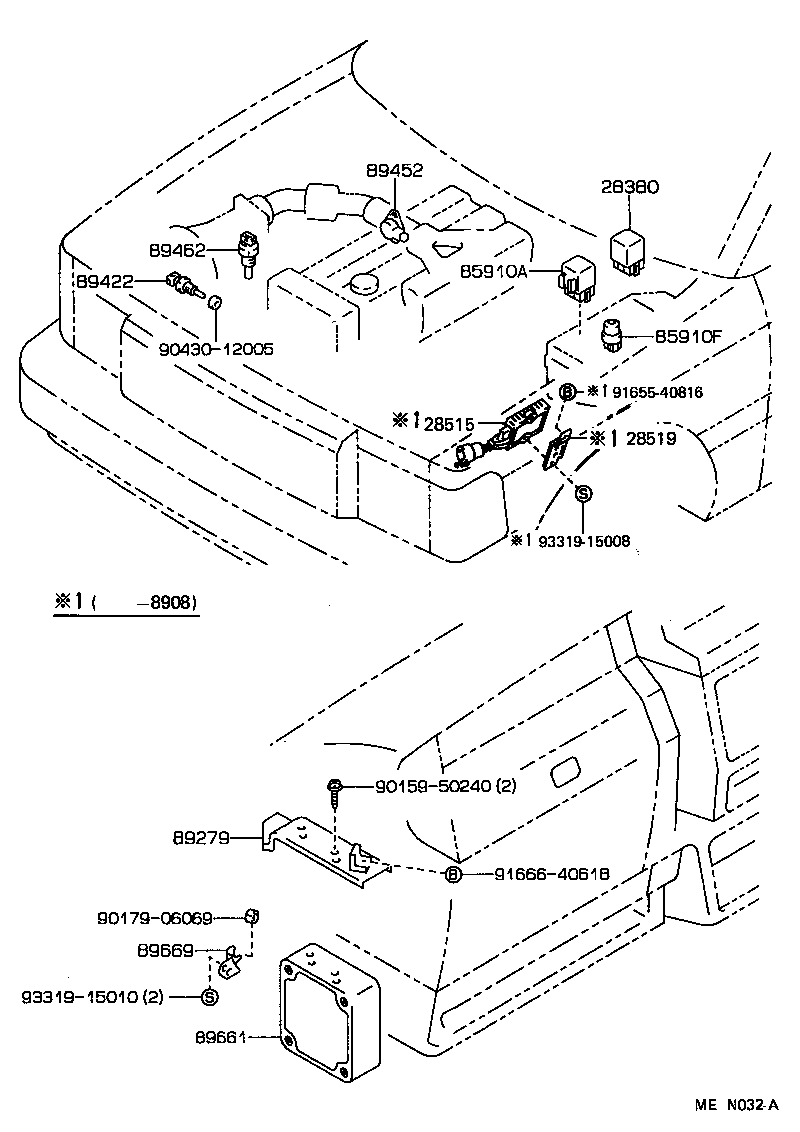

Click highlighted areas on diagram

diagram 28380 28515 28519 85910A 85910F 89279 89422 89452 89462 89661 89669 9015950240 9017906069 9043012005 9165540816 9166640618 9331915008 9331915010
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
28380-30010

1GGZE,7MGE,1UZFE..GS130,131,MS135,137,UZS131

 1
28515 - RESISTOR, SOLENOID
28515-42010

7MGE..MS135,137

 1
28515-42010

1GGE,7MGE..GS131,MS135,137

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70030

1GE,7MGE..GS13#,MS135,137

 1
28519-70030

1GE,1GG#,7MGE..GS13#,MS135,137

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

GS136..HTWC;GS130,131,JZS13#,MS135,137,UZS131..EFI,HTWC,TWC

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-30030

GS13#,MS135,137

 1
89279-30050

MS13#,UZS131

 1
89279-30050

GS130,131..SPC;JZS13#,MS13#,UZS131

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
89422-20010

MS135;GS13#,MS137..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,TWC)

 1
89422-30020

GS13#,MS135,137

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14050

MS135,137

 1
89462 - SWITCH, START INJECTOR TIME
89462-20030

MS13#;GS13#,UZS131..HTWC,SPC

 1
89462-30011

MS135,137

 1
89462-20030

MS135,137

 1
89462-20030

GS130,131..SPC;MS135,137,UZS131

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30301

MS135,137

 1
89661-30450

MS13#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30020

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
Common parts
90159-50240
90179-06069
90430-12005
91655-40816
91666-40618
93319-15008
93319-15010
