MS135-ATSQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS130,JZS130,LS130..ROY,SALEX,SDX ; (8908- )GS131,JZS131,LS131,MS13#,

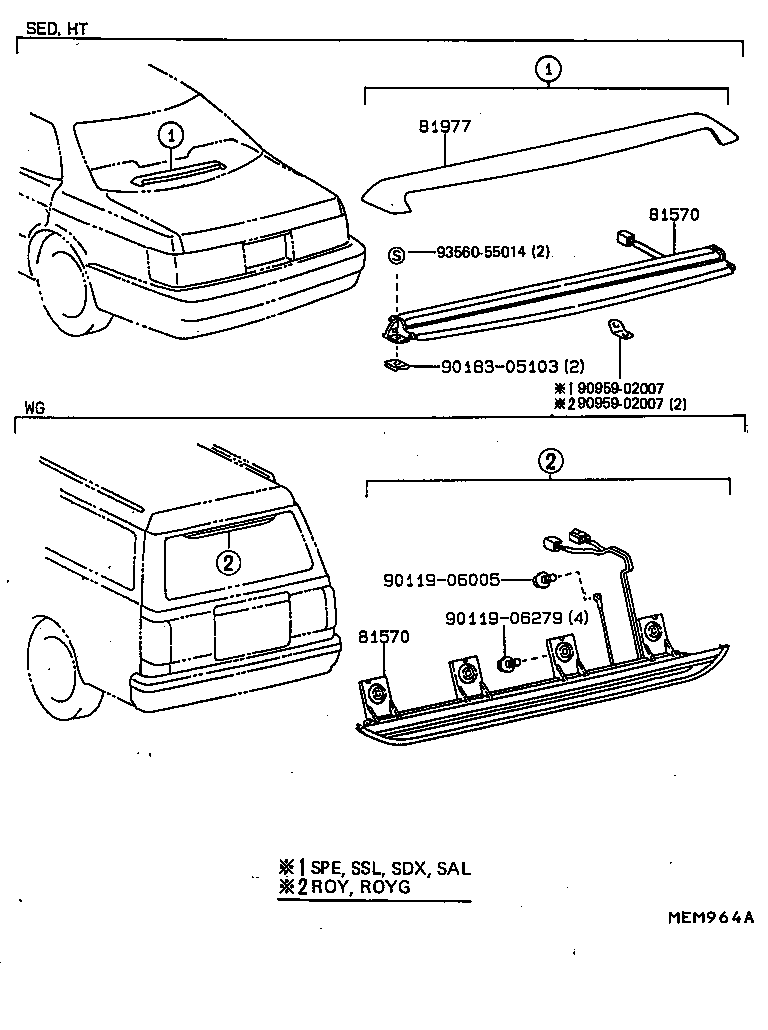

Click highlighted areas on diagram

diagram 81570 81570 81977 9011906005 9011906279 9018305103 9095902007 9095902007 9356055014
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-30040

GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)

 1
81570 - LAMP ASSY, CENTER STOP
81570-30040

GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)

 1
81977 - COVER, CENTER STOP LAMP
81977-3004006

GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)

SABLE,TRIM4#

 1
81977-3004004

GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)

BLUE,TRIM8#

 1
81977-3004002

GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)

MAROON,TRIM3#

 1
Common parts
90119-06005
90119-06279
90183-05103
90959-02007
93560-55014
