MS135-ATSQF (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
7MGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

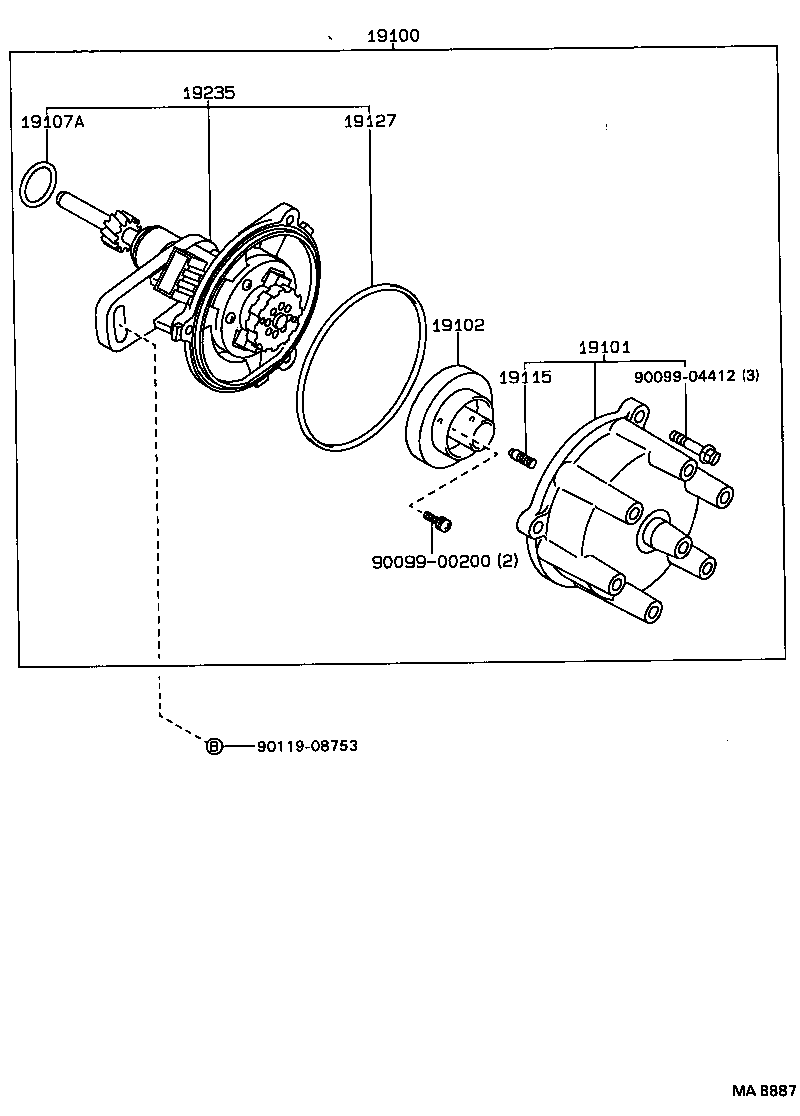

(8908- )7MGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-42040 |
7MGE..MS135,137 |
1 | ||
| 19100-42050 |
7MGE..MS13# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-70011 |
7MGE..MS135,137 |
1 | ||
| 19101-70011 |
7MGE..MS135,137 |
1 | ||
| 19101-70160 |
7MGE..MS13# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-43110 |
7MGE..MS135,137 |
1 | ||
| 19102-70160 |
7MGE..MS13# |
1 | ||
| 19102-70160 |
7MGE..MS13# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14018 |
7MGE,MP..MS13# |
1 | ||
| 90099-14088 |
7MGE..MS13# |
1 | ||
| 90099-14088 |
7MGE..MS13# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-88280 |
7MGE..MS13# |
1 | ||
| 19115-50010 |
7MGE,MP..MS13# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52020 |
7MGE..MS135,137 |
1 | ||
| 19127-61240 |
7MGE..MS13# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-42050 |
7MGE..MS13# |
1 | ||
| Common parts | ||||
| 90099-00200 | ||||
| 90099-04412 | ||||
| 90119-08753 | ||||

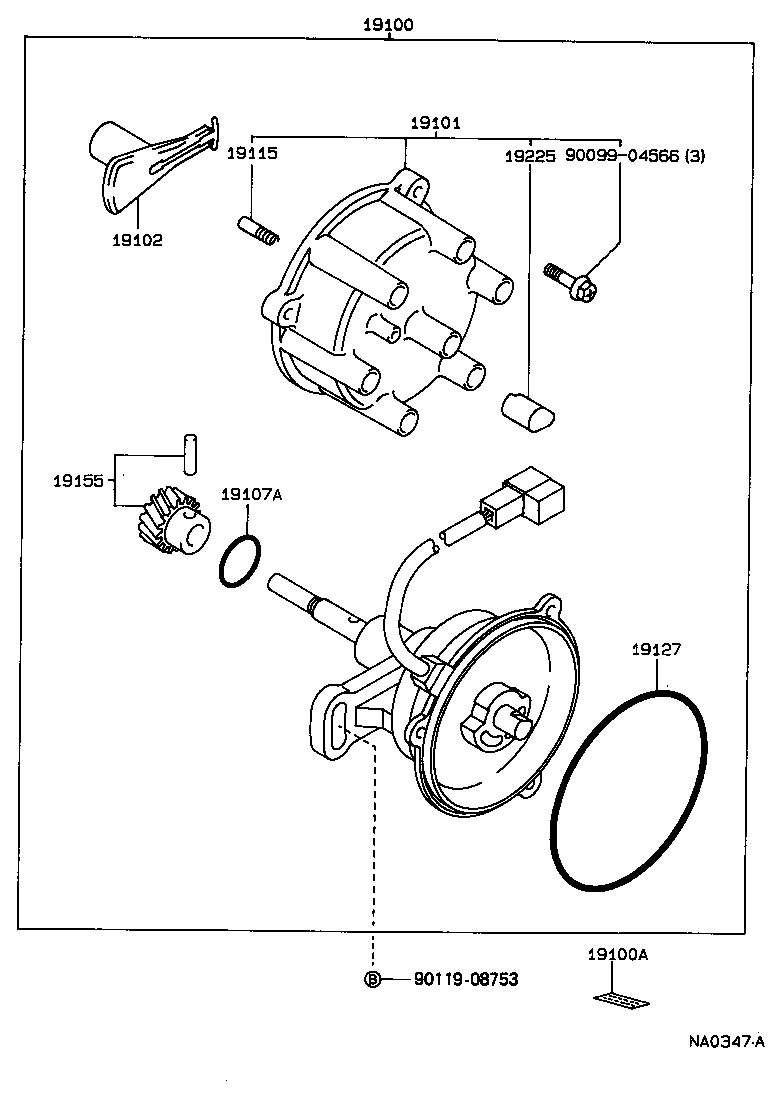

(8709-8908)7MGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-42040 |
7MGE..MS135,137 |
1 | ||
| 19100-42050 |
7MGE..MS13# |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
7MGE,MP..MS13# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-70011 |
7MGE..MS135,137 |
1 | ||
| 19101-70011 |
7MGE..MS135,137 |
1 | ||
| 19101-70160 |
7MGE..MS13# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-43110 |
7MGE..MS135,137 |
1 | ||
| 19102-70160 |
7MGE..MS13# |
1 | ||
| 19102-70160 |
7MGE..MS13# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14018 |
7MGE,MP..MS13# |
1 | ||
| 90099-14088 |
7MGE..MS13# |
1 | ||
| 90099-14088 |
7MGE..MS13# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-88280 |
7MGE..MS13# |
1 | ||
| 19115-50010 |
7MGE,MP..MS13# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52020 |
7MGE..MS135,137 |
1 | ||
| 19127-61240 |
7MGE..MS13# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-42040 |
7MGE..MS135,137 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
7MGE,MP..MS13# |
1 | ||
| Common parts | ||||
| 90099-04566 | ||||
| 90119-08753 | ||||
