MS135-ATSQF (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
7MGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )7MGE

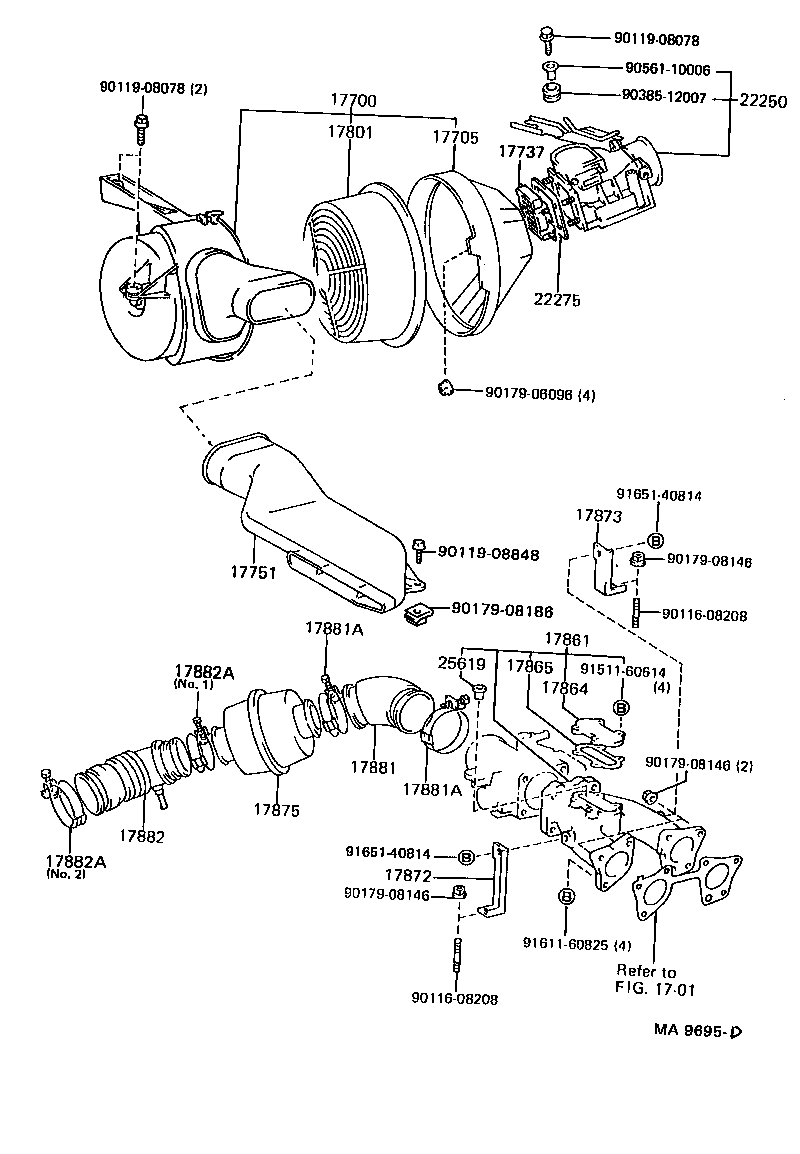

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-42260 |
7MGE..MS13# |
1 | ||
| 17700-42230 |
7MGE..MS135,137 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-42120 |
7MGE..MS135,137 |
1 | ||
| 17705-42150 |
7MGE..MS13# |
1 | ||
| 17737 - COVER, AIR CLEANER | ||||
| 17737-42040 |
7MGE..MS13# |
1 | ||
| 17737-42030 |
7MGE..MS135,137 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53299-30170 |
7MGE..MS135,137 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
7MGE..MS135,137 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-42020 |
7MGE..MS135,137 |
1 | ||
| 17861-42050 |
7MGE..MS135,137 |
1 | ||
| 17864 - COVER, INTAKE AIR CONNECTOR | ||||
| 17864-42010 |
7MGE..MS135,137 |
1 | ||
| 17865 - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 17865-42010 |
7MGE..MS135,137 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-42040 |
7MGE..MS135,137 |
1 | ||
| 17872-42041 |
7MGE..MS135,137 |
1 | ||
| 17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17873-42020 |
7MGE..MS135,137 |
1 | ||
| 17873-42021 |
7MGE..MS135,137 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-42040 |
7MGE..MS135,137 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42040 |
7MGE..MS13#..ROY,ROYG ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 17881-42020 |
7MGE..MS135,137 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
7MGE..MS135,137 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
7MGE..MS135,137 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-42030 |
7MGE..MS135,137 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
7MGE..MS135,137 NO.1 |
1 | ||
| 96111-10900 |
7MGE..MS135,137 NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
7MGE..MS135,137 NO.1 |
1 | ||
| 96111-10900 |
7MGE..MS135,137 NO.2 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-42050 |
7MGE..MS135,137 |
1 | ||
| 22250-42100 |
7MGE..MS13# |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-42010 |
7MGE..MS135,137 |
1 | ||
| 22275-42020 |
7MGE..MS13# |
1 | ||
| 25619 - TUBE, EGR INLET | ||||
| 25619-43010 |
7MGE..MS135,137 |
1 | ||
| Common parts | ||||
| 90116-08208 | ||||
| 90119-08078 | ||||
| 90119-08848 | ||||
| 90179-06096 | ||||
| 90179-08146 | ||||
| 90179-08186 | ||||
| 90385-12007 | ||||
| 90561-10006 | ||||
| 91511-60614 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||
