Toyota Crown MS135 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

Part #	Description	Period	Qty
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-30010	MS135;GS130,131..SPC	09/1987 - 10/1991	1
82125B - WIRE, TRANSMISSION
82125-30070	MS135;GS130,131..SPC	09/1987 - 10/1991	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-30130	UZS131..4FC;GS130,131,MS13#..4FC..(SPC,TWC)	08/1989 - 12/1989	1
84720-30131	UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)	12/1989 - 10/1991	1
84720-30100	GS130,131,MS135,137..4FC..(SPC,TWC)	09/1987 - 08/1989	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-30130	UZS131..4FC;GS130,131,MS13#..4FC..(SPC,TWC)	08/1989 - 12/1989	1
84720-30131	UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)	12/1989 - 10/1991	1
84720-30100	GS130,131,MS135,137..4FC..(SPC,TWC)	09/1987 - 08/1989	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-1407046	GS130,131,LS130,MS135,137..4FC..(ROY,ROYG,SALEX,SPE,SSL) SABLE,TRIM4#	09/1987 - 09/1988	1
84722-1407046	GS130,131,LS130,MS135,137..4FC..(ROY,ROYG,SAL,SALEX,SPE,SSL) SABLE,TRIM4#	09/1988 - 08/1989	1
84722-1407034	GS130,131,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) DARK BLUE,TRIM8#	09/1987 - 09/1988	1
84722-3010004	GS130,131,JZS13#,LS13#,MS135..4FC BLUE,TRIM8#	08/1989 - 10/1991	1
84722-3010006	GS131..SED..4FC..SALEX;GS131,JZS131,LS131,MS135..4FC..(ROY,SAL,SPE,SSL);GS130,JZS130,LS130,131..(SED,WG)..4FC..(ROY,SALEX) SABLE,TRIM4#	08/1989 - 10/1991	1
84722-3010002	GS130,131,JZS13#,LS13#,MS135..4FC MAROON,TRIM3#	08/1989 - 10/1991	1
84722-1407032	GS130,131,LS13#,MS13#..4FC..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3#	09/1987 - 08/1989	1
84722-1407034	GS130,131,LS13#,MS13#..4FC DARK BLUE,TRIM8#	09/1988 - 08/1989	1
84722-3012004	GS131..4FC..ROY..SPC;JZS131,MS135..4FC..(ROY,SALEX) ｱﾘ(ﾃﾚｽｺﾃﾞﾝﾄﾞｳｼｷﾁﾙﾄｽﾃｱﾘﾝｸﾞ),BLUE,TRIM8#	08/1989 - 10/1991	1
84722-3012006	GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ﾃﾚｽｺﾃﾞﾝﾄﾞｳｼｷﾁﾙﾄｽﾃｱﾘﾝｸﾞ),SABLE,TRIM4#	08/1989 - 10/1991	1
84722-3012002	GS131..4FC..ROY..SPC;JZS131,MS135..4FC..(ROY,SALEX) ｱﾘ(ﾃﾚｽｺﾃﾞﾝﾄﾞｳｼｷﾁﾙﾄｽﾃｱﾘﾝｸﾞ),MAROON,TRIM3#	08/1989 - 10/1991	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020	MS135,137;GS130,131..SPC NO.1 & NO.2	09/1987 - 04/1988	2
85420-30120	MS135,137;GS130,131..SPC NO.3,NIPPONDENSO	09/1987 - 08/1989	1
85420-22080	GS130,131..SPC;JZS13#,MS135,137 NO.1 & NO.2	09/1987 - 10/1991	2
85420-30110	GS130,131..SPC;JZS13#,MS135,137 NO.3,AISIN	09/1987 - 10/1991	1
85420-30120	JZS13#,MS13#;GS130,131..SPC NO.3,NIPPNDENSO	08/1989 - 10/1991	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020	MS135,137;GS130,131..SPC NO.1 & NO.2	09/1987 - 04/1988	2
85420-30120	MS135,137;GS130,131..SPC NO.3,NIPPONDENSO	09/1987 - 08/1989	1
85420-22080	GS130,131..SPC;JZS13#,MS135,137 NO.1 & NO.2	09/1987 - 10/1991	2
85420-30110	GS130,131..SPC;JZS13#,MS135,137 NO.3,AISIN	09/1987 - 10/1991	1
85420-30120	JZS13#,MS13#;GS130,131..SPC NO.3,NIPPNDENSO	08/1989 - 10/1991	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020	MS135,137;GS130,131..SPC NO.1 & NO.2	09/1987 - 04/1988	2
85420-30120	MS135,137;GS130,131..SPC NO.3,NIPPONDENSO	09/1987 - 08/1989	1
85420-22080	GS130,131..SPC;JZS13#,MS135,137 NO.1 & NO.2	09/1987 - 10/1991	2
85420-30110	GS130,131..SPC;JZS13#,MS135,137 NO.3,AISIN	09/1987 - 10/1991	1
85420-30120	JZS13#,MS13#;GS130,131..SPC NO.3,NIPPNDENSO	08/1989 - 10/1991	1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	GS130,131..SPC;JZS13#,MS135,137	09/1987 - 10/1991	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	GS130,131..SPC;JZS13#,MS135,137	09/1987 - 10/1991	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	GS130,131..SPC;JZS13#,MS135,137	09/1987 - 10/1991	3
89411C - SENSOR, SPEED
89411-22060	MS135;GS130,131..SPC	09/1987 - 12/1988	1
89411-22061	MS135;GS130,131..SPC	12/1988 - 10/1991	1
89414 - ROTOR, SENSOR
89414-30020	MS135;GS130,131..SPC	09/1987 - 12/1988	1
89414-30021	MS135;GS130,131..SPC	12/1988 - 10/1991	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-30440	MS135,137..4FC..WIB	09/1987 - 08/1989	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-30440	MS135,137..4FC..WIB	09/1987 - 08/1989	1
89539 - BRACKET, TRANSMISSION CONTROL COMPUTER
89539-30040	GS131..HT..4FC..SPC;MS135,137..4FC..WIB	09/1987 - 08/1989	1
Common parts
82711-12200
90105-06049
90119-06120
90159-40159
90280-03005
90301-11008
90520-30002
91611-60616
91611-60816
91651-40820
93567-55016
96721-24011
96721-24018

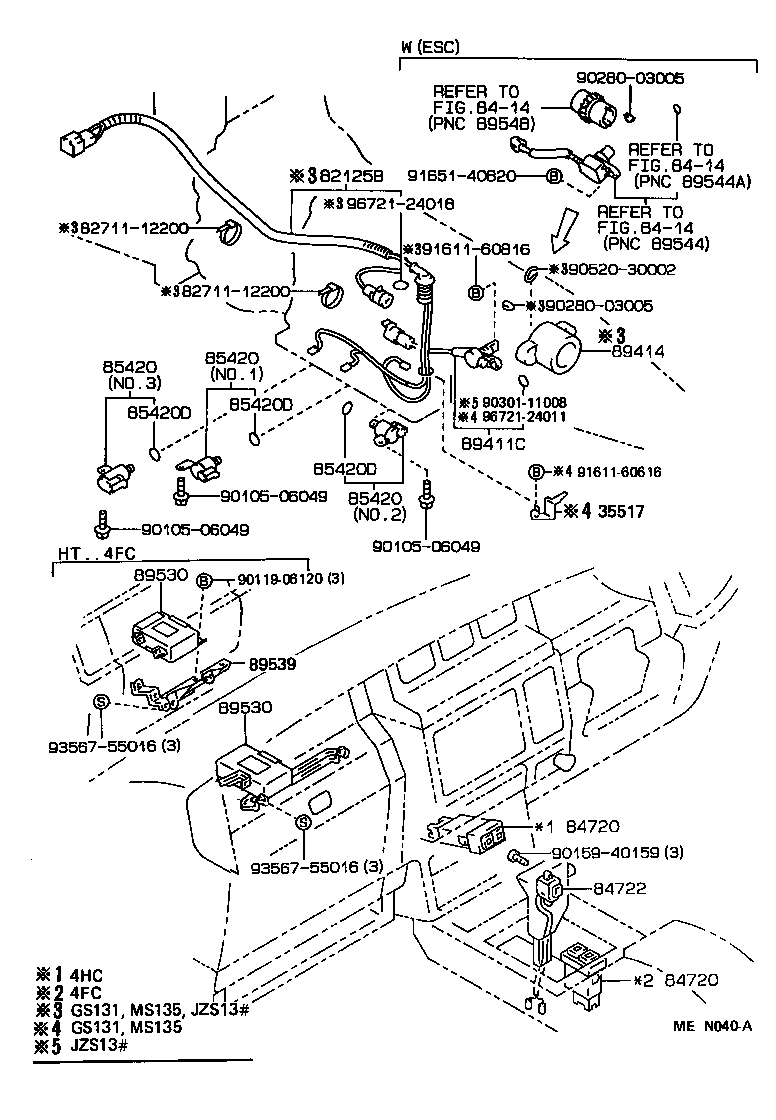

Linked diagrams
8414

MS135-ATPQF (1987)

(8709- )SPC ; (8709- )JZS13#,MS135,137
