MS135-ATPQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

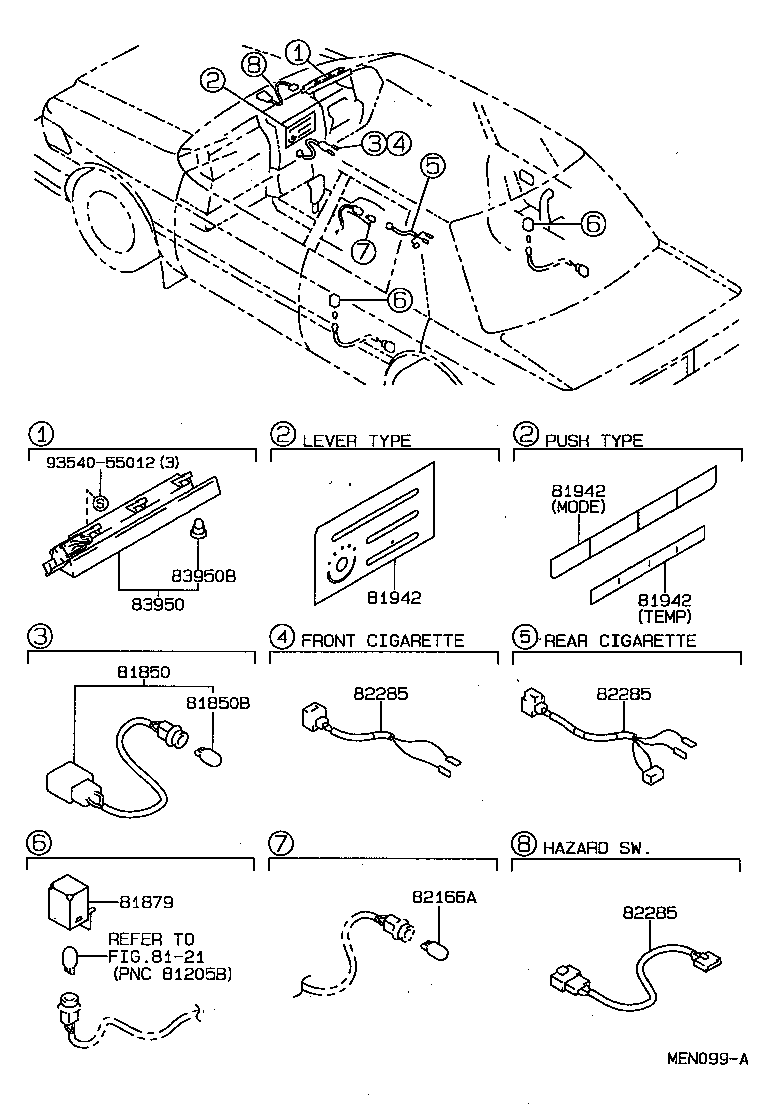

Click highlighted areas on diagram

diagram 8121 81850 81850B 81879 81942 81942 81942 82166A 82285 82285 82285 83950 83950B 9354055012
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-30090

GS131,MS137..4HC;GS130,136,LS136,MS130,135,YS130..DLX,ROY,SAL,SALEX,SDX;GS131,LS130,MS137..(SED,WG)..(4FC,4H,5F)..(DLX,ROY,ROYG,SALEX,SDX)

 1
81850B - BULB, INDICATOR LAMP
90981-11014

GS131,MS137..4HC;GS130,136,LS136,MS130,135,YS130..DLX,ROY,SAL,SALEX,SDX;GS131,LS130,MS137..(SED,WG)..(4FC,4H,5F)..(DLX,ROY,ROYG,SALEX,SDX)

14V 1.4W

 1
81879 - BRACKET, INDICATOR LAMP
81879-30020

GS130,131,LS130,MS135,137..HT

 2
81879-30020

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 2
81879-30020

GS131..HT..ROY..SPC;GS130,131,LS130,MS135,137..HT..(EFI,TD,TDE,TWC)

 2
82166A - BULB, CONSOLE BOX
90981-11014

UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC)

 1
82285 - WIRE, ILLUMINATION
82285-30010

GS130,131,MS135,137..4FC..(SPC,TWC)

REAR CIGARETTE

 1
82285-30070

UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)

REAR CIGARETTE

 1
82285 - WIRE, ILLUMINATION
82285-30010

GS130,131,MS135,137..4FC..(SPC,TWC)

REAR CIGARETTE

 1
82285-30070

UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)

REAR CIGARETTE

 1
82285 - WIRE, ILLUMINATION
82285-30010

GS130,131,MS135,137..4FC..(SPC,TWC)

REAR CIGARETTE

 1
82285-30070

UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)

REAR CIGARETTE

 1
83950 - LAMP ASSY, TELLTALE
83950-30010

GS131..HT..4FC..SPC;MS135,137..4FC..WIB

 1
83950-30020

MS13#,UZS131..4FC..WIB;GS131..HT..4FC..SPC..NOB

 1
83950-30020

GS131..HT..4FC..SPC;JZS131,MS13#,UZS131..4FC..WIB

 1
83950B - BULB, TELLTALE LAMP
84999-50140

MS135,137..4FC..WIB

12V 1.4W,12V 1.4W

 8
84999-50330

MS135,137..4FC..WIB

12V 1.4W,ORANGE CAP

 4
84999-50190

MS13#,UZS131..4FC..WIB

12V 1.2W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.2W,GREEN CAP

 9
84999-50190

JZS131,MS13#,UZS131..4FC..WIB

12V 1.2W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.2W,GREEN CAP

 9
90072-02021

MS13#,UZS131..4FC..WIB

14V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,14V 1.4W,ORANGE CAP

 4
90072-02021

JZS131,MS13#,UZS131..4FC..WIB

14V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,14V 1.4W,ORANGE CAP

 4
Common parts
93540-55012
Linked diagrams
8121
