MS135-ATPQF (1987)
Toyota Crown
(8709-8908)4FC..ROY,ROYG

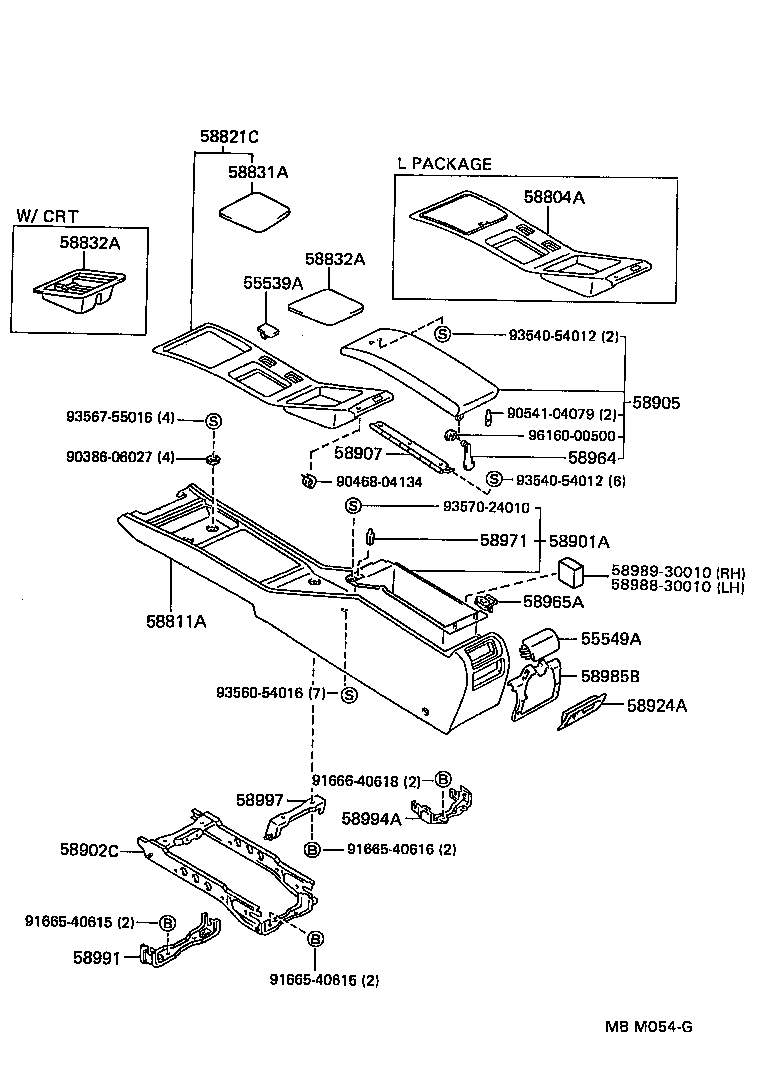

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-30071 |
GS130,131,MS135..4FC..(SPC,TWC) |
1 | ||
| 55539-30110 |
GS130,131,JZS13#,MS135..4FC..(ROY,SSL)..(SPC,TWC) |
1 | ||
| 55539-30070 |
GS130,131,MS135..4FC..(SPC,TWC) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3007006 |
JZS131,MS13#..4FC..(ROY,ROYG)..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC) SABLE,TRIM4# |
1 | ||
| 58804-3007004 |
JZS131,MS13#..4FC..(ROY,ROYG)..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC) BLUE,TRIM8# |
1 | ||
| 58804-3007002 |
JZS131,MS13#..4FC..(ROY,ROYG)..WIB;GS131,UZS131..HT..4FC..(ROY,ROYG)..(HTWC,SPC) MAROON,TRIM3# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3022002 |
GS130,131,MS135,137..4FC..(SPC,TWC) MAROON,TRIM3# |
1 | ||
| 58811-3022004 |
GS130,131,MS135,137..4FC..(SPC,TWC) BLUE,TRIM8# |
1 | ||
| 58802-3004002 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
1 | ||
| 58802-3004004 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
1 | ||
| 58802-3004006 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 58811-3022006 |
GS130,131,MS135,137..4FC..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-30210 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58821-30220 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-30050 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58831-30050 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-30090 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-30090 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-30110 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58901-3010001 |
MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(ﾃﾞﾝﾜ),BLACK,BLACK,TRIM3#,4#,8# |
1 | ||
| 58901-3009002 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),MAROON,MAROON,TRIM3# |
1 | ||
| 58901-3009006 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),SABLE,SABLE,TRIM4# |
1 | ||
| 58901-3009004 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),BLUE,BLUE,TRIM8# |
1 | ||
| 58901-3012004 |
GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
1 | ||
| 58901-3012002 |
GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
1 | ||
| 58901-3012006 |
GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-30030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F |
1 | ||
| 58902-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 58902-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3013004 |
GS130,131,MS135,137..4FC..(ROY,ROYG) BLUE,TRIM8# |
1 | ||
| 58905-3013002 |
GS130,131,MS135,137..4FC..(ROY,ROYG) MAROON,TRIM3# |
1 | ||
| 58905-3013006 |
GS130,131,MS135,137..4FC..(ROY,ROYG) SABLE,TRIM4# |
1 | ||
| 58905-3021004 |
GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) BLUE,TRIM8# |
1 | ||
| 58905-3021006 |
GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) SABLE,TRIM4# |
1 | ||
| 58905-3021002 |
GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) MAROON,TRIM3# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-30040 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58907-30060 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-30030 |
GS131..4FC..ROY..SPC;GS130,JZS13#,MS13#,UZS131..4FC..(ROY,ROYG) |
1 | ||
| 58924-30020 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30060 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58964-30070 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-30010 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58965-30020 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-30041 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58971-30040 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-30031 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-30080 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F |
1 | ||
| 58991-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-30050 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 58994-30040 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 58994-30030 |
MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(ﾃﾞﾝﾜ) |
1 | ||
| 58994-30060 |
GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-30040 |
UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
1 | ||
| 58997-30030 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| Common parts | ||||
| 58988-30010 | ||||
| 58989-30010 | ||||
| 90386-06027 | ||||
| 90468-04134 | ||||
| 90541-04079 | ||||
| 91665-40615 | ||||
| 91665-40616 | ||||
| 91666-40618 | ||||
| 93540-54012 | ||||
| 93560-54016 | ||||
| 93567-55016 | ||||
| 93570-24010 | ||||
| 96160-00500 | ||||
