MS135-ATPQF (1987)
Toyota Crown

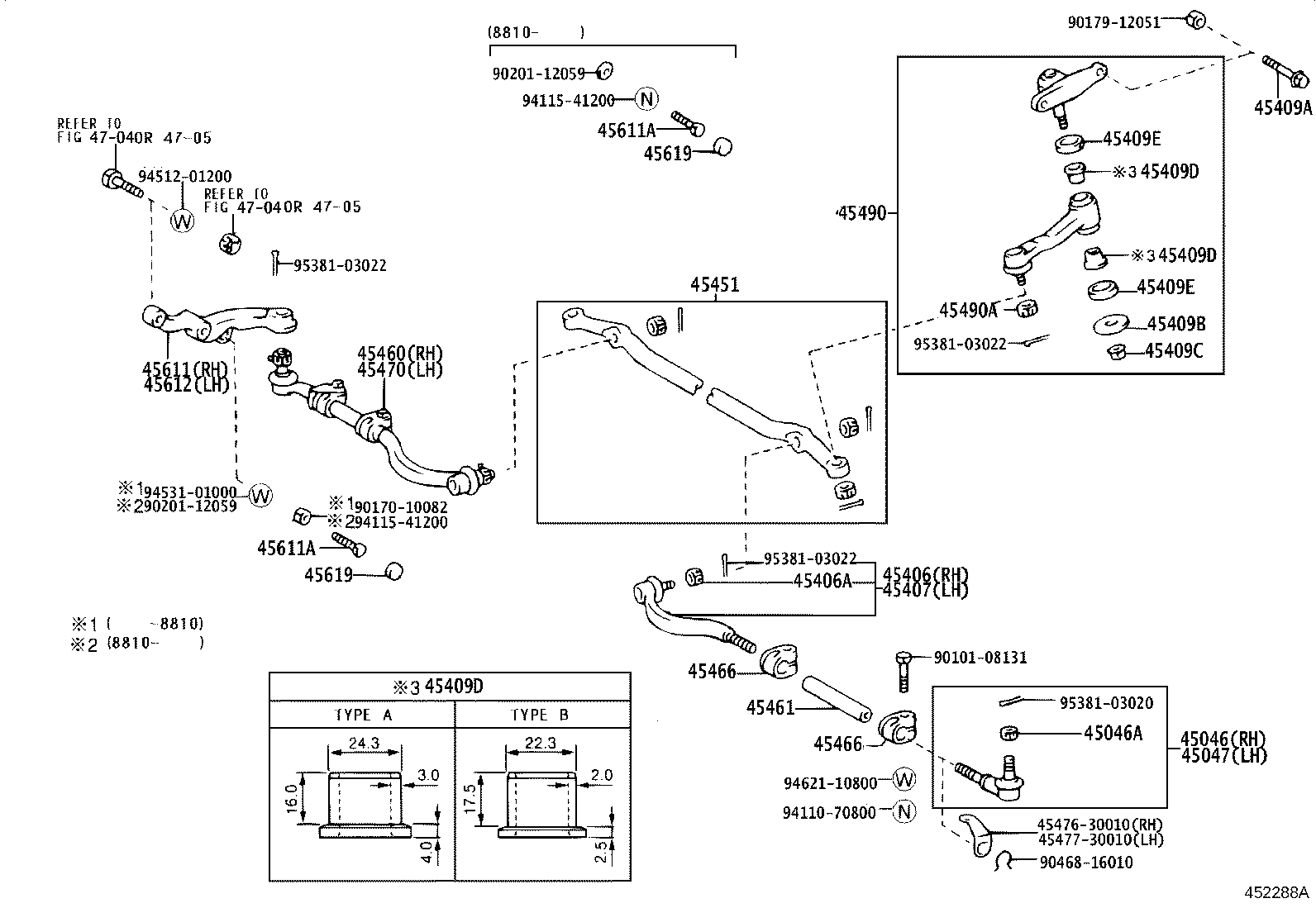

ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39195 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39195 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39145 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39145 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45406-39145 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12120 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 *12−1.25PX104−44 |
1 | ||
| 90105-12105 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 *12−1.25PX91.5−38 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90386-18002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90386-18002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 90386-18002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-39035 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45451-39085 |
GS131,MS135,137 |
1 | ||
| 45451-39115 |
GS131,JZS131,LS131,MS13# |
1 | ||
| 45451-39085 |
GS131,LS131,MS13# |
1 | ||
| 45451-39085 |
GS130,131,MS135,137..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39265 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30031 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30030 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外側 |
2 | ||
| 45466-22020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内側 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30030 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外側 |
2 | ||
| 45466-22020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内側 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39065 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39265 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-30121 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45611-30120 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12007 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 90106-10032 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12007 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 90106-10032 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-30120 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45612-30121 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 45619-36010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 45619-36010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| Common parts | ||||
| 45476-30010 | ||||
| 45477-30010 | ||||
| 90101-08131 | ||||
| 90170-10082 | ||||
| 90179-12051 | ||||
| 90201-12059 | ||||
| 90468-16010 | ||||
| 94110-70800 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 94621-10800 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4704 | ||||

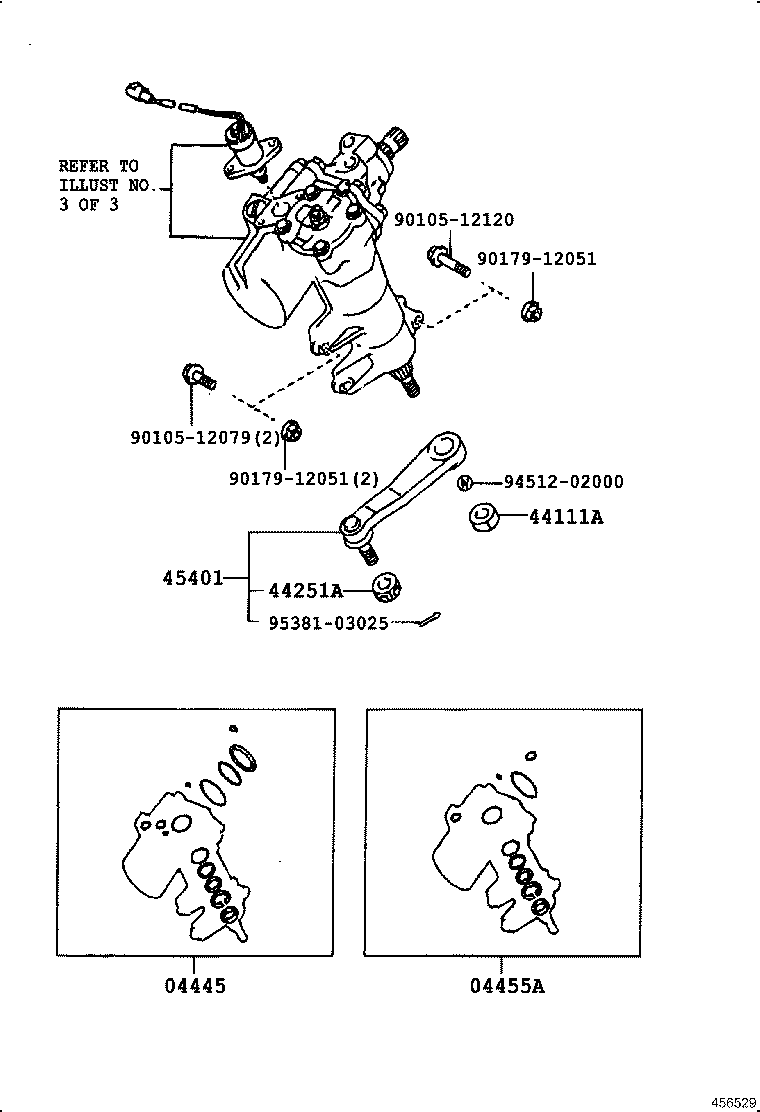

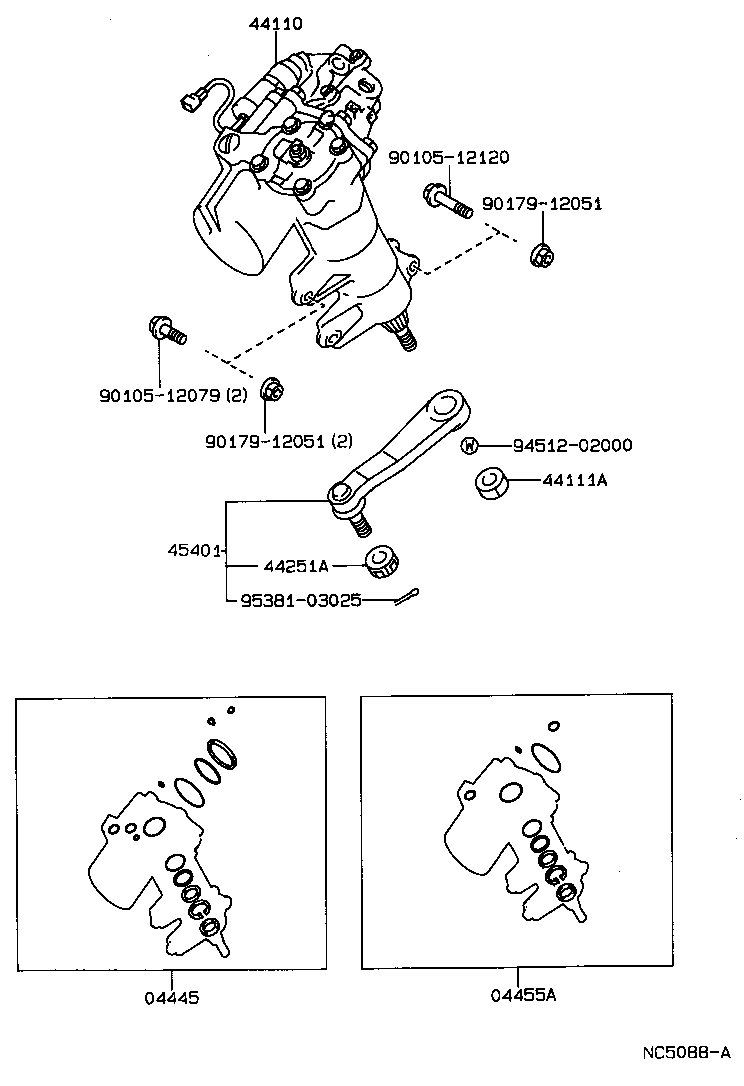

ILLUST NO. 2 OF 3(8709- )GS130,131,LS13#,MS135 ; (9008- )JZS13#
ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-30101 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 04445-30091 |
MS13#,UZS131 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-30030 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39255 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45401-39295 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12051 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||

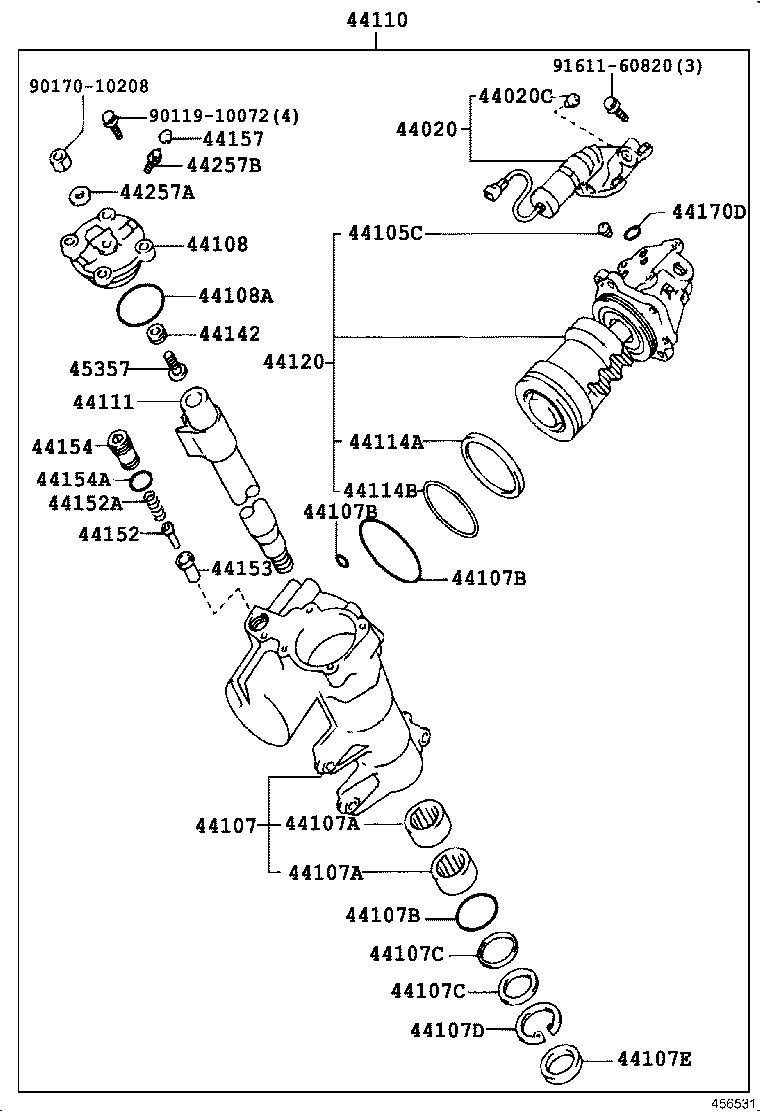

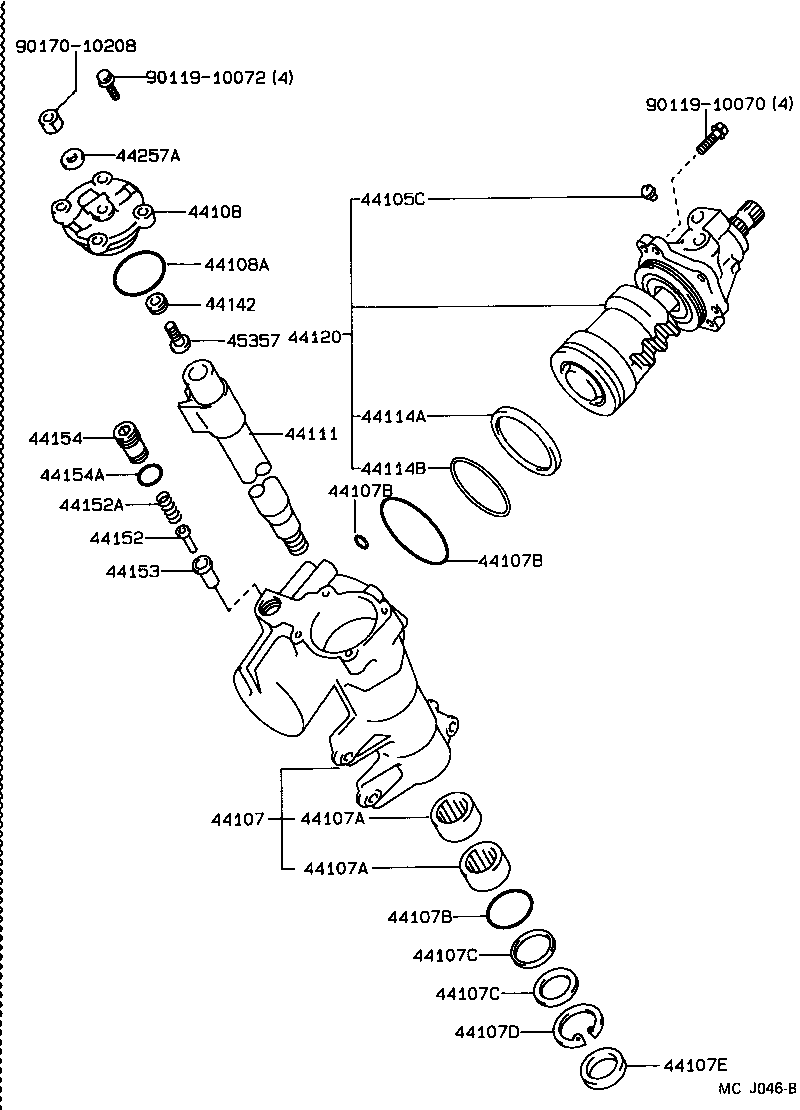

ILLUST NO. 3 OF 3(8709- )MS135,137,UZS131
ﾊﾟﾜｰｽﾃﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-30020 |
MS13#,UZS131 |
1 | ||
| 44020C - SEAT, UNION(PRESSURE CONTROL VALVE ASSY) | ||||
| 90410-06005 |
MS13#,UZS131 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
MS13#,UZS131 |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30200 |
GS136,LS130,136,YS130;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE);GS130,MS13#,UZS131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TWC,TWLPG) |
1 | ||
| 44107-30170 |
GS130..SPC;GS131..SSL..SPC;GS130,131,LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30060 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108-30040 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30300 |
LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44110-30310 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ,ﾘﾔｽﾀﾋﾞﾗｲｻﾞﾊﾞ-,OD=22.2 |
1 | ||
| 44110-30312 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44110-30372 |
MS13#,UZS131 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30070 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111-30071 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-30160 |
GS131..SPC;LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44120-30170 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30172 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30162 |
LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44120-30202 |
MS13#,UZS131 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22020 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-30020 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-60020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING) | ||||
| 44157-30010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) | ||||
| 96711-19021 |
MS135..ROY;GS131..SPC..NOB HOUSING SIDE,OD=24.8 |
1 | ||
| 96711-19014 |
MS13#,UZS131 |
3 | ||
| 90301-06179 |
MS135..ROY;GS131..SPC..NOB SHAFT SIDE, OD=9.5 |
1 | ||
| 90301-06179 |
GS131..SED..ROY;GS131..SSL..SPC;GS130,MS135..ROY;GS131..HT..(ROY,SALEX)..NOB;GS130,LS130..(HT,SED)..SALEX SHAFT SIDE, OD=9.5 |
1 | ||
| 96711-19021 |
GS131..SED..ROY;GS131..SSL..SPC;GS130,MS135..ROY;GS131..HT..(ROY,SALEX)..NOB;GS130,LS130..(HT,SED)..SALEX HOUSING SIDE,OD=24.8 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING) | ||||
| 47547-20010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-30060 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-60030 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 91611-60820 | ||||
ILLUST NO. 2 OF 3(8709- )
ﾏﾆｭｱﾙｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-30060 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-60030 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39255 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45401-39295 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12051 | ||||
| 91619-61225 | ||||
| 94120-41000 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
ILLUST NO. 3 OF 3(8908- )
ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
MS13#,UZS131 |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30200 |
GS136,LS130,136,YS130;GS131,LS131..(SAL,SPE,SSL)..(HTWC,TD,TDE);GS130,MS13#,UZS131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TWC,TWLPG) |
1 | ||
| 44107-30170 |
GS130..SPC;GS131..SSL..SPC;GS130,131,LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 90301-33002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=33.7,外径=40.7 |
1 | ||
| 90301-69002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=69.0,外径=74.0 |
1 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 内径=32,外径=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30060 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108-30040 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30070 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44111-30071 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-71001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-68002 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-30160 |
GS131..SPC;LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44120-30170 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30172 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44120-30162 |
LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44120-30202 |
MS13#,UZS131 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22020 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-30020 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44142-60020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-30060 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45357-60030 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
ILLUST NO. 2 OF 3(8709- )MS137 ; (8908- )MS135,UZS131
ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-30101 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 04445-30091 |
MS13#,UZS131 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-30030 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30300 |
LS130,MS135..(HT,SED)..(ROY,SALEX) |
1 | ||
| 44110-30310 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ,ﾘﾔｽﾀﾋﾞﾗｲｻﾞﾊﾞ-,OD=22.2 |
1 | ||
| 44110-30312 |
MS135..WIB;GS131..HT..SPC S ﾀｲﾌﾟ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44110-30372 |
MS13#,UZS131 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39255 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 45401-39295 |
GS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12051 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
